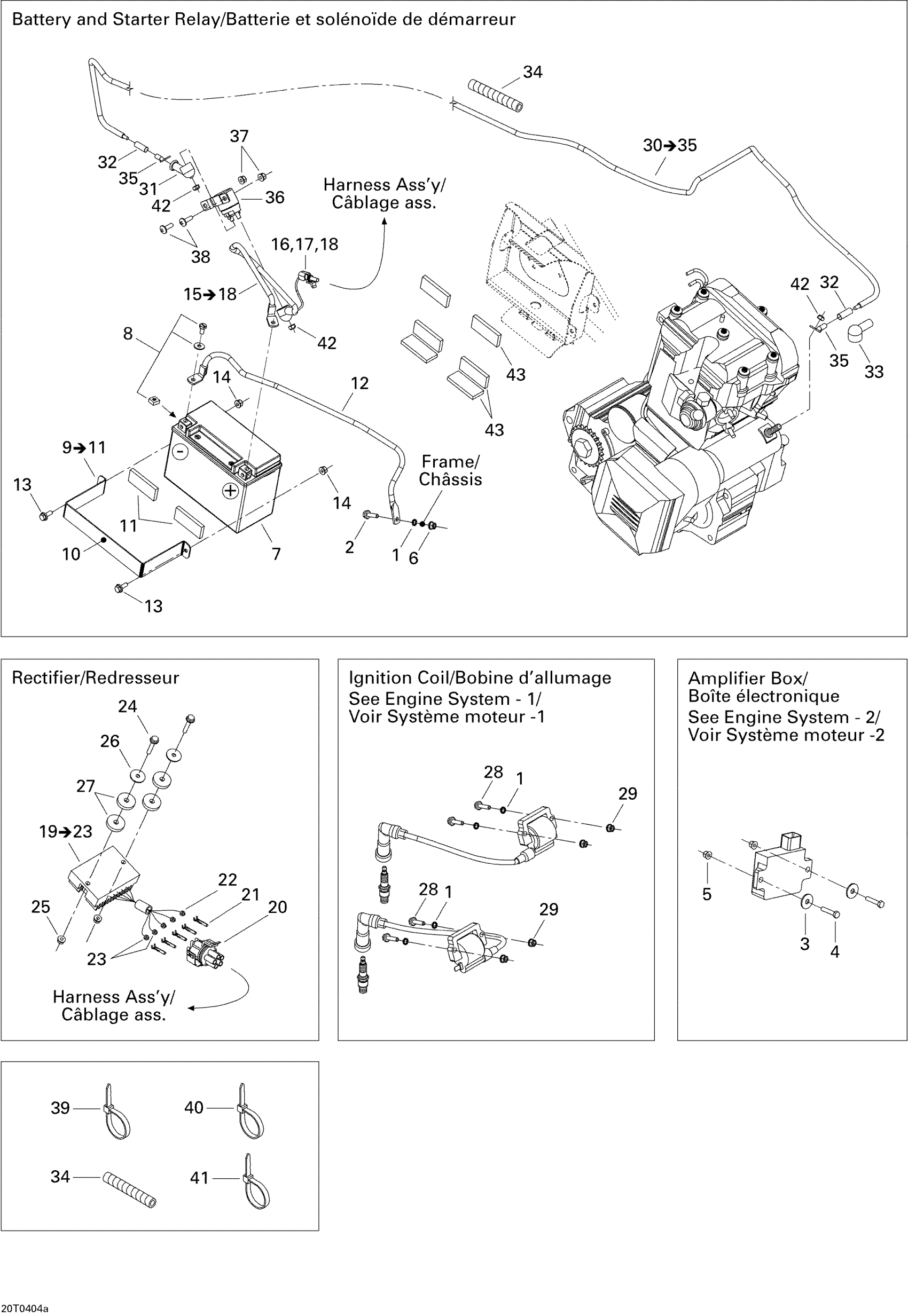

Can-Am DS 650/DS 650 Baja/X, 2004 Electrical System 1 Diagram

#

Description
Price

1

External Serrated Lock Washer 6 mm

234461608

$1.15

2

Hex. Flange Screw M6 X 20

207662044

$2.00

3

Flat Washer

224061201

$1.37

4

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

5

Hex. Flange Elastic Nut M5

233251414

$1.04

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

7

Battery, 13 Amperes | Includes 7 to 8

710000283

$154.99

8

Battery Bolt Kit

250000282

$7.29

9

Rubber Strap Ass'y | Includes 9 to 11

710000104

Unavailable

10

RUBBER STRAP, BLACK - Call your local BRP dealership

710000087

Unavailable

11

PROTECTOR - Call your local BRP dealership

293830083

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Hex. Flange Screw M6 X 16

207661644

$0.74

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

Not Available As Spare Part - Friction Washer

Unavailable

16

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

17

Female Terminal

409007300

$0.45

18

Cap

710000049

Unavailable

19

Rectifier Ass'y | Includes 24 to 28

710000257

Unavailable

20

Female Housing, 5 Circuit

710000106

Unavailable

21

Female Terminal

409007300

$0.45

22

Wire Seal

278000218

$4.39

23

Wire Seal

710000048

$7.69

24

Hex. Flange Screw M6 X 35

207663544

$0.90

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

26

Washer

224060251

$0.58

27

RUBBER WASHER - Call your local BRP dealership

250200002

Unavailable

28

Hex. Flange Screw M6 X 25

207662544

$0.64

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

30

POSITIVE CABLE - Call your local BRP dealership | Includes 35 to 40

710000069

Unavailable

31

Protector Cap

710000393

$9.59

32

Was 710000483 Heat Shrink Tubing

219704447

$78.99

33

Protector Cap

710000494

Unavailable

34

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

35

OPEN BARREL - Call your local BRP dealership

710000538

Unavailable

36

Starter Relay

515176011

$62.49

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

38

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

39

Tie-Rap 180 mm

414115200

$0.11

40

Tie Wrap 368 mm

293750008

$1.04

41

Tie Wrap 142 mm

293750002

$1.25

42

Elastic Stop Nut M6

232561414

$0.55

43

PROTECTOR - Call your local BRP dealership

293830083

Unavailable
