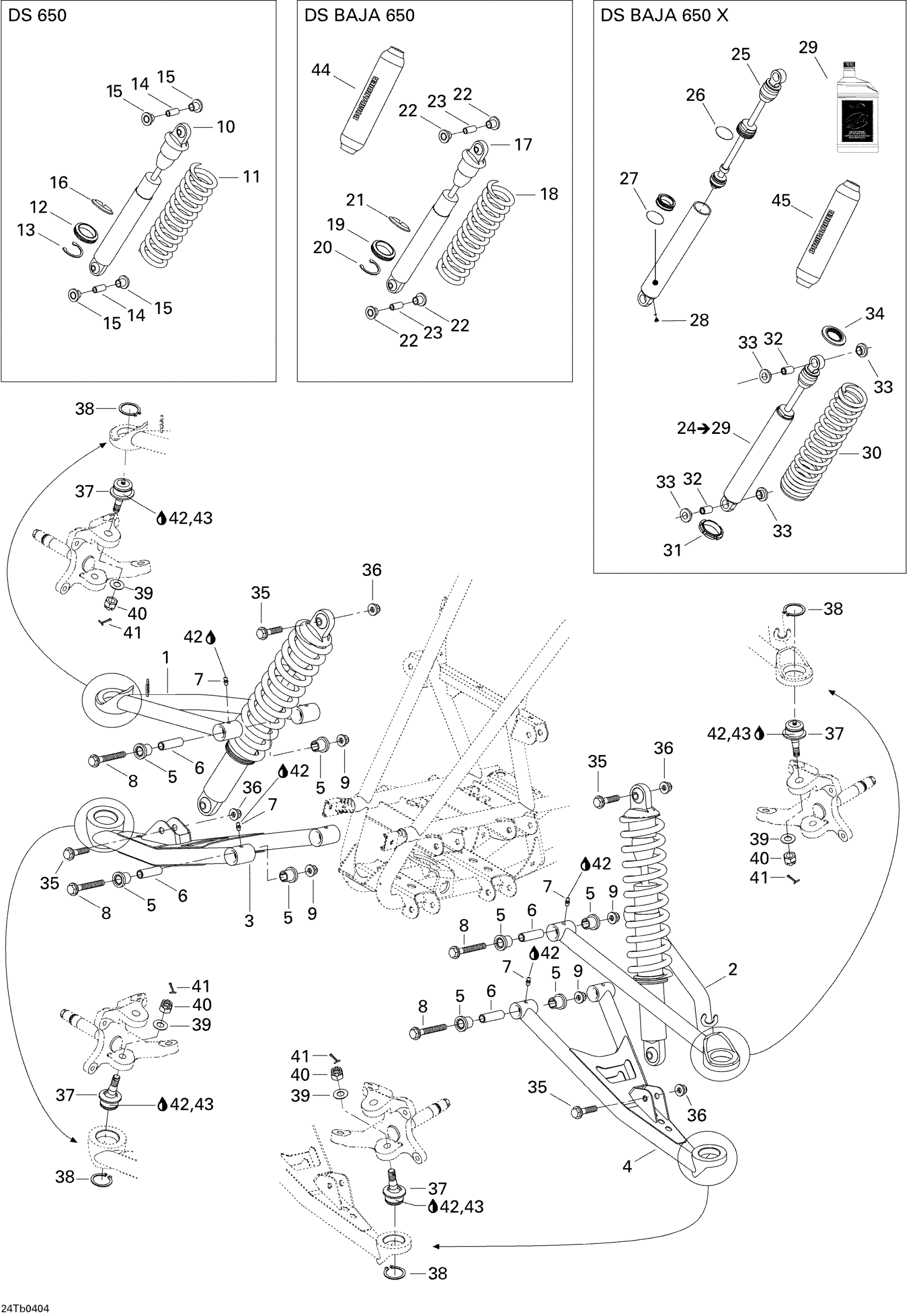

Can-Am DS 650/DS 650 Baja/X, 2004 Front Suspension Diagram

#

Description
Price

1

RH Upper Arm

706200389

Unavailable

2

LH Upper Arm

706200388

Unavailable

3

RH LOWER ARM - Call your local BRP dealership

706200376

Unavailable

4

LH LOWER ARM - Call your local BRP dealership

706200374

Unavailable

5

Cushion

706200063

Unavailable

6

Internal Bushing

706200061

Unavailable

7

Grease Fitting

408200700

$3.49

8

Hex. Flange Screw M10 X 75

207607546

$6.59

9

Hex. Flange Elastic Nut M10

233201436

$2.11

10

Front Shock | DS 650

706200314

Unavailable

11

Spring | DS 650

706200315

Unavailable

12

SPRING SEAT - Call your local BRP dealership | DS 650

706200212

Unavailable

13

RING HOLDER - Call your local BRP dealership | DS 650

706200138

Unavailable

14

Bushing | DS 650

706200097

Unavailable

15

CUSHION - Call your local BRP dealership | DS 650

706200099

Unavailable

16

SPRING RETAINER - Call your local BRP dealership | DS 650

706200211

Unavailable

17

Front Shock | DS 650

706200314

Unavailable

18

ORANGE SPRING - Call your local BRP dealership | DS BAJA 650

706200337

Unavailable

19

SPRING SEAT - Call your local BRP dealership | DS 650

706200212

Unavailable

20

RING HOLDER - Call your local BRP dealership | DS 650

706200138

Unavailable

21

Bushing | DS 650

706200097

Unavailable

22

CUSHION - Call your local BRP dealership | DS 650

706200099

Unavailable

23

SPRING RETAINER - Call your local BRP dealership | DS 650

706200211

Unavailable

24

Front Shock | DS 650 X / Includes 18 to 23

706200347

Unavailable

25

PISTON ASS'Y - Call your local BRP dealership | DS 650 X

706200391

Unavailable

26

O-ring | DS 650 X

706200392

Unavailable

27

O-RING - Call your local BRP dealership | DS 650 X

706200393

Unavailable

28

Pressure Valve | DS BAJA 650 X

706200395

Unavailable

29

Oil Shock | DS 650 X

503190103

Unavailable

30

SPRING - Call your local BRP dealership | DS 650 X

706200348

Unavailable

31

SPRING SEAT - Call your local BRP dealership | DS 650 X

706200349

Unavailable

32

Bushing | DS 650

706200097

Unavailable

33

CUSHION - Call your local BRP dealership | DS 650

706200099

Unavailable

34

SPRING RETAINER - Call your local BRP dealership | DS 650 X

706200351

Unavailable

35

Hex. Flange Screw M10 X 50

207605044

$5.29

36

Hex. Flange Elastic Nut M10

233201414

$1.58

37

Ball Joint

703500082

Unavailable

38

Circlip

293370017

$4.44

39

Hardened Washer

706200281

$2.85

40

Hex. Castellated Nut M12

232221414

$3.17

41

Cotter Pin

211400017

$0.33

42

Synthetic Grease, 400 G

293550010

Unavailable

43

Loctite 609, 10 ml

413703100

$26.99

44

Protector

706200276

Unavailable

45

Protector | DS BAJA 650 X

706200359

Unavailable
