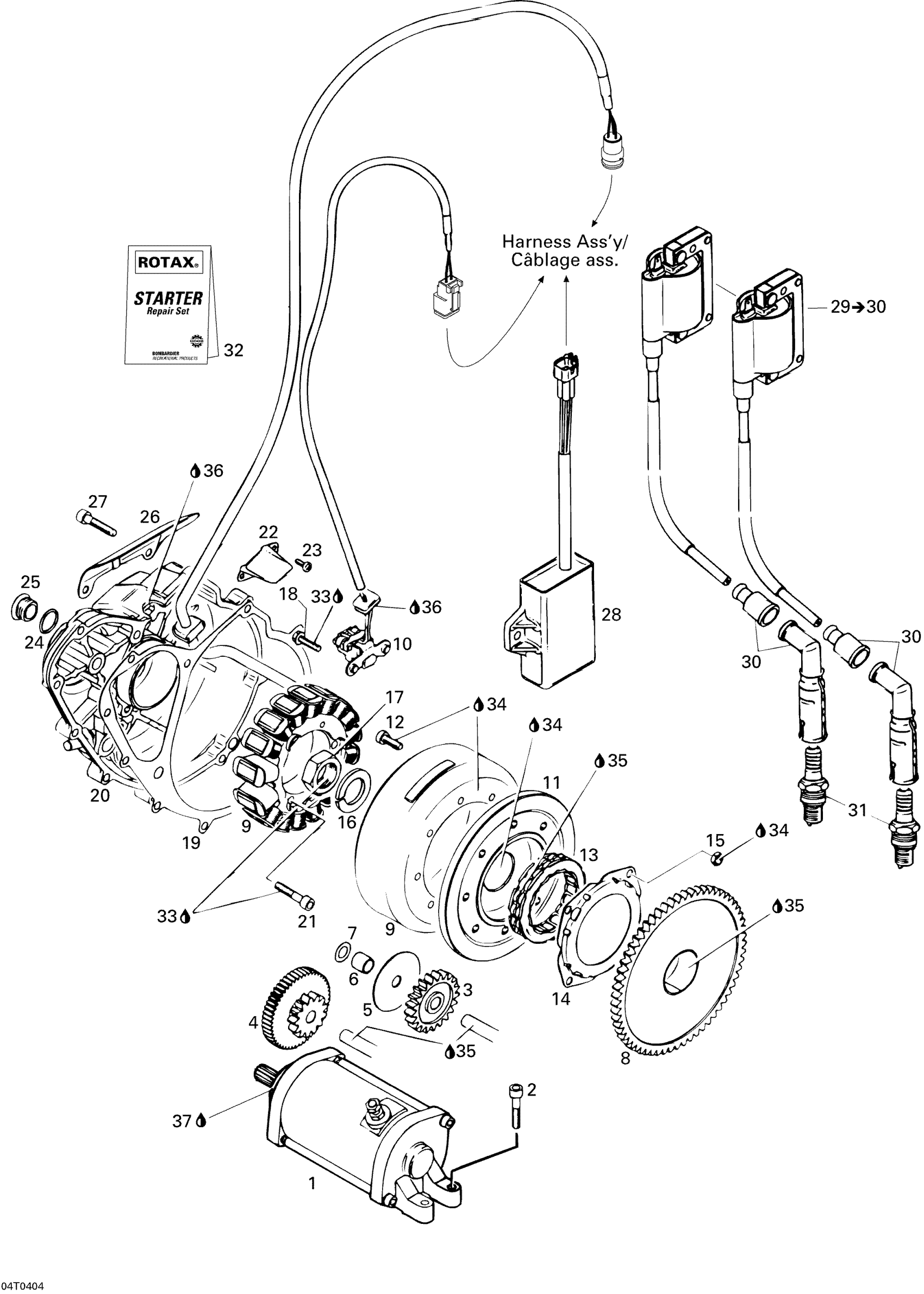

Can-Am DS 650/DS 650 Baja/X, 2004 03- Ignition Diagram

#

Description
Price

1

ELECTRIC STARTER - Call your local BRP dealership

420294351

Unavailable

1

STARTER BRUSH KIT - Call your local BRP dealership

420294354

Unavailable

1

O-Ring For Starter (Not Illustrated)

293300103

Unavailable

2

Socket Head Screw M6 X 30

205063044

Unavailable

3

INTERMEDIATE GEAR, 24 TEETH - Call your local BRP dealership

420234655

Unavailable

4

Intermediate Gear, 11/52 Teeth

420234756

Unavailable

5

Thrust Washer

420627080

Unavailable

6

SPACER - Call your local BRP dealership

420247785

Unavailable

7

Thrust Washer

420827590

Unavailable

8

STARTING GEAR, 61 TEETH - Call your local BRP dealership

420634319

Unavailable

9

Magneto Ass'y 12V/280W

420295172

Unavailable

10

Pickup Ass'y

420265153

Unavailable

11

FLYWHEEL ROTOR HUB - Call your local BRP dealership

420264577

Unavailable

12

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

420640980

Unavailable

13

Sprag Clutch

420958857

Unavailable

14

SPRAG CLUTCH HOUSING - Call your local BRP dealership

420259192

Unavailable

15

NUT BM6 - Call your local BRP dealership

420242031

Unavailable

16

Lock Washer, 22 mm

420945759

Unavailable

17

Hex. Nut, M22 X 1.5

420842239

Unavailable

18

Taptite Screw M5 X 16

420941928

Unavailable

19

GASKET - Call your local BRP dealership

420250920

Unavailable

20

IGNITION COVER - Call your local BRP dealership

420211291

Unavailable

21

Socket Head Screw M6 X 35

420241810

Unavailable

22

Interior Cable Support Ass'y

420251889

Unavailable

23

Phillips Screw M4 X 8

420240196

Unavailable

24

O-Ring

420250890

Unavailable

25

Drain Plug

420241801

Unavailable

26

CABLE EXTERNAL COVER - Call your local BRP dealership

420251990

Unavailable

27

Socket Head Screw M6 X 30

205063044

Unavailable

28

AMPLIFIER BOX - Call your local BRP dealership

420664170

Unavailable

29

Ignition Coil

420265357

Unavailable

30

SPARK PLUG CAP - Call your local BRP dealership

420665010

Unavailable

31

Spark Plug, NGK/DR8EA

707000008

Unavailable

32

STARTER BRUSH KIT - Call your local BRP dealership

420294354

Unavailable

33

Loctite 243, 10 ml

293800060

Unavailable

34

Sealant Loctite 648

219703000

Unavailable

35

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

36

Sealing Compound Loctite 5366 310Ml

420297907

Unavailable

37

Petamo Grease, GHY133N, 400 g

420899271

Unavailable
