Description

Price

1

Air Silencer

707800021

Unavailable

2

Air Silencer Cover

707800022

Unavailable

3

Air Filter | Includes 3 To 4

707800023

Unavailable

4

Foam

707800074

Unavailable

5

Intake Adaptor

707800142

Unavailable

6

COVER LATCH - Call your local BRP dealership

708200003

Unavailable

7

Drain Tube

707800080

Unavailable

8

RETAINER CLIP - Call your local BRP dealership

707800081

Unavailable

9

Norma Gear Clamp

514052983

Unavailable

10

Norma Gear Clamp

293650118

Unavailable

11

Vent Hose

707800093

Unavailable

12

Vent Hose

707800094

Unavailable

13

Hex. Flange Screw M6 X 20

207662044

Unavailable

14

Neoprene Seal 3000Mm Long

219704371

Unavailable

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

16

Flat Washer

250200082

Unavailable

17

DEFLECTOR - Call your local BRP dealership

707800038

Unavailable

18

GEMI CLAMP - Call your local BRP dealership

293650160

Unavailable

19

Cap

572051500

Unavailable

20

Mount Dart

293730040

Unavailable

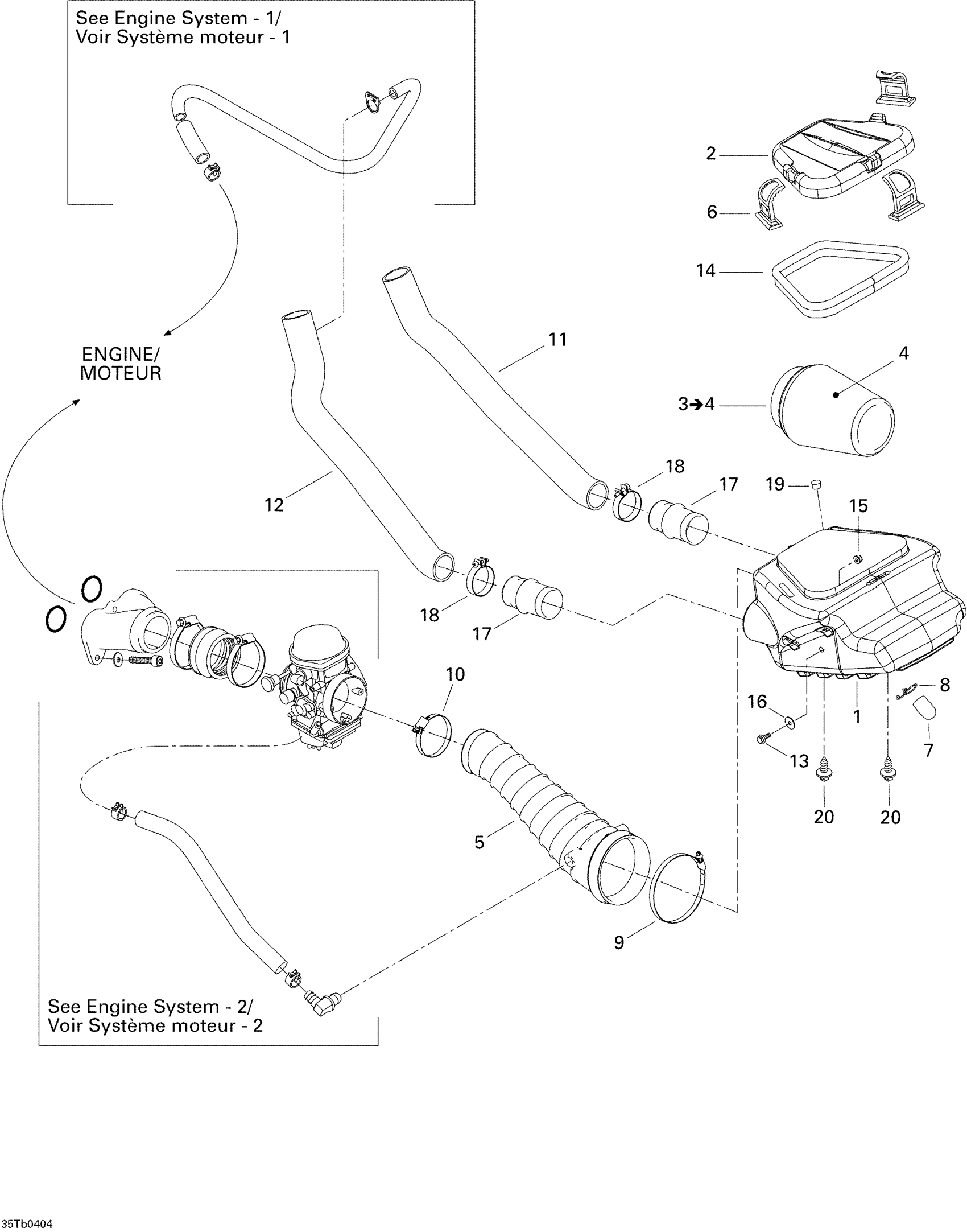

Can-Am DS 650/DS 650 Baja/X, 2004 02- Air Intake System Diagram

Air Silencer

Air Silencer Cover

Air Filter | Includes 3 To 4

Foam

Intake Adaptor

COVER LATCH - Call your local BRP dealership

Drain Tube

RETAINER CLIP - Call your local BRP dealership

Norma Gear Clamp

Norma Gear Clamp

Vent Hose

Vent Hose

Hex. Flange Screw M6 X 20

Neoprene Seal 3000Mm Long

Hex. Flange Elastic Nut M6 x 1.0

Flat Washer

DEFLECTOR - Call your local BRP dealership

GEMI CLAMP - Call your local BRP dealership

Cap

Mount Dart
