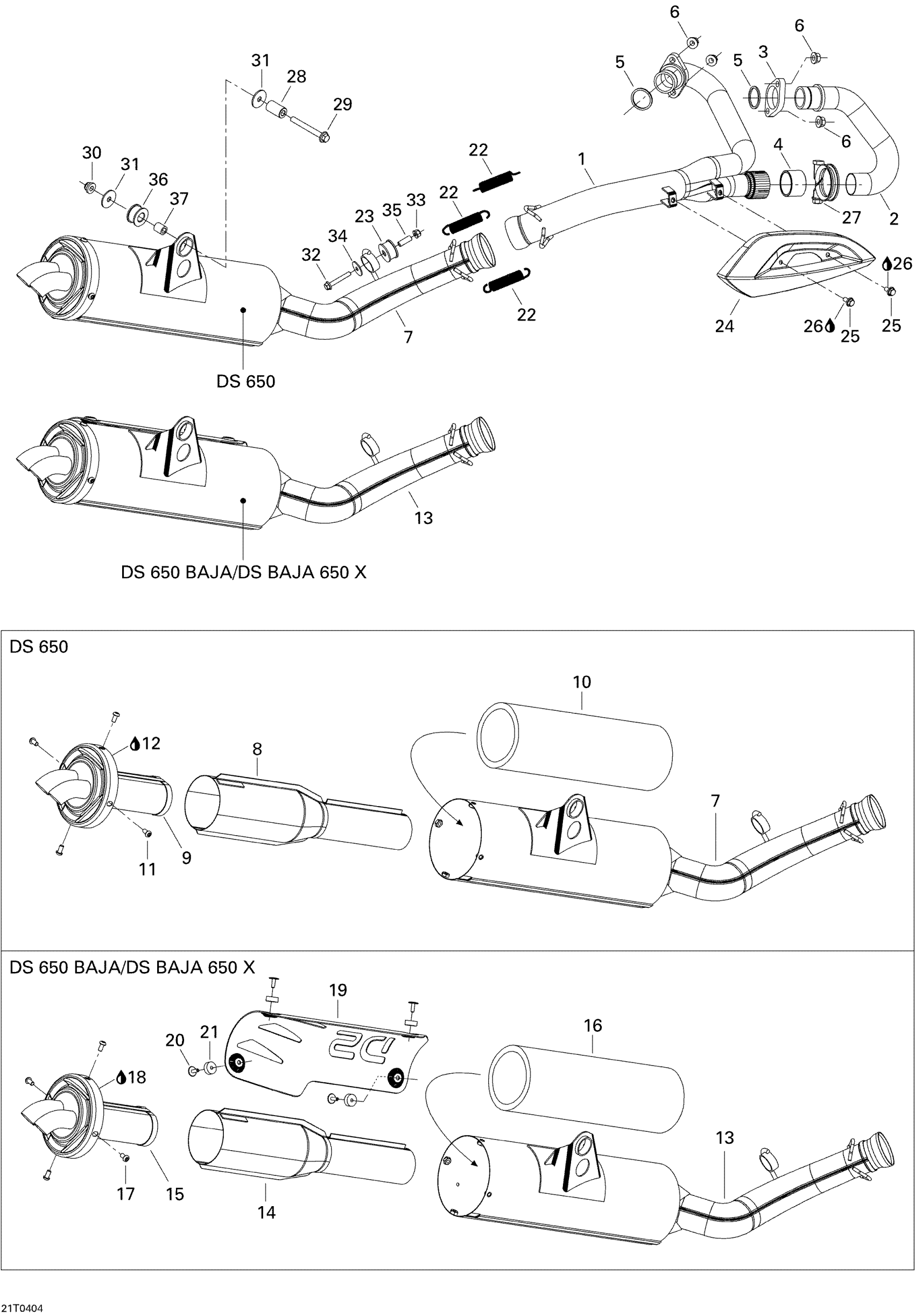

Can-Am DS 650/DS 650 Baja/X, 2004 01- Exhaust System Diagram

#

Description
Price

1

LH TUNED PIPE - Call your local BRP dealership

707600019

Unavailable

2

RH TUNED PIPE - Call your local BRP dealership

707600196

Unavailable

3

EXHAUST CLAMP - Call your local BRP dealership

707600024

Unavailable

4

PIPE GASKET - Call your local BRP dealership

707600020

Unavailable

5

PIPE GASKET - Call your local BRP dealership

707600069

Unavailable

6

Hex. Flange Nut M8

233081416

Unavailable

7

Tuned Pipe | DS 650

707600065

Unavailable

8

Perforated Tube | DS 650

707600053

Unavailable

9

END PIECE - Call your local BRP dealership | DS 650

707600066

Unavailable

10

Insulator | DS 650

707600089

Unavailable

11

Socket Screw Button Head M6 X 10 | DS 650

250000436

Unavailable

12

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

13

TUNED PIPE - Call your local BRP dealership | DS 650 X

707600188

Unavailable

14

Perforated Tube | DS 650

707600053

Unavailable

15

END PIECE - Call your local BRP dealership | DS 650

707600066

Unavailable

16

Insulator | DS 650

707600089

Unavailable

17

Socket Screw Button Head M6 X 10 | DS 650

250000436

Unavailable

18

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

19

Heat Shield | DS 650 X

707600179

Unavailable

20

Pop Rivet 3/16" | DS 650 X

293150104

Unavailable

21

Rubber Washer | DS 650 X

250200034

Unavailable

22

Spring

415107100

Unavailable

23

Anti-Vibration Rubber

707600702

Unavailable

24

Heat Shield, viper Red | DS 650

707600223

Unavailable

HEAT SHIELD, SLATE GRAY - Call your local BRP dealership | DS 650 X

707600241

Unavailable

25

Hex. Flange Screw M6 X 12

207661244

Unavailable

26

Loctite 271, 10 ml

293800005

Unavailable

27

GEAR CLAMP - Call your local BRP dealership

293650093

Unavailable

28

SPACER - Call your local BRP dealership

707600049

Unavailable

29

Hex. Flange Screw M8 X 70

207687044

Unavailable

30

Hex. Flange Elastic Nut M8

233281414

Unavailable

31

Flat Washer

224081301

Unavailable

32

Hex. Flange Screw M6 X 40

207664044

Unavailable

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

34

Washer

224060251

Unavailable

35

Spacer

707600070

Unavailable

36

Vibration Damper

707603323

Unavailable

37

Bushing

293900106

Unavailable
