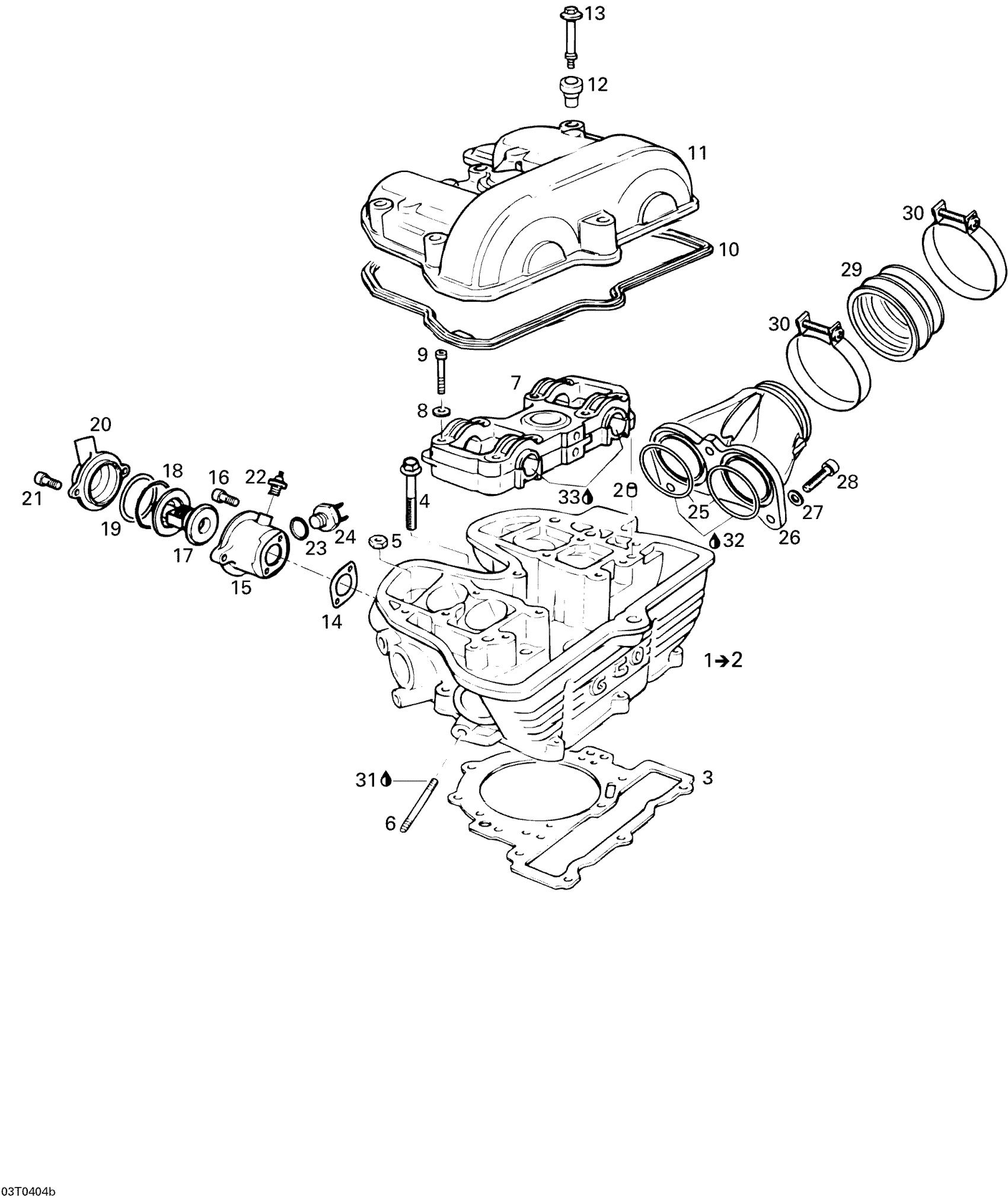

Can-Am DS 650/DS 650 Baja/X, 2004 01- Cylinder Head Diagram

#

Description
Price

1

CYLINDER HEAD - Call your local BRP dealership | Includes 1 to 2

420223916

Unavailable

2

Center Pin 8 X 12

420632010

Unavailable

3

GASKET - Call your local BRP dealership

420650020

Unavailable

4

Hex. Flange Screw M8 X 45

207684544

Unavailable

5

Hex. Flange Nut M10

233101414

Unavailable

6

STUD M8 X 58 - Call your local BRP dealership

420240362

Unavailable

7

Camshaft Bridge

420211326

Unavailable

8

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

9

Socket Head Screw M6 X 45

420241820

Unavailable

10

GASKET - Call your local BRP dealership

420250900

Unavailable

11

VALVE COVER - Call your local BRP dealership

420211301

Unavailable

12

Rubber Bushing

420260050

Unavailable

13

DISTANCE SCREW M6 X 47.9 - Call your local BRP dealership

420240906

Unavailable

14

Gasket

420650060

Unavailable

15

THERMOSTAT HOUSING - Call your local BRP dealership

420222430

Unavailable

16

SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership

420840518

Unavailable

17

Thermostat

420222463

Unavailable

18

CORRUGATED WASHER - Call your local BRP dealership

420245770

Unavailable

19

O-RING - Call your local BRP dealership

420650030

Unavailable

20

THERMOSTAT COVER - Call your local BRP dealership

420222440

Unavailable

21

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

420840512

Unavailable

22

Thermostatic Switch

420265392

Unavailable

23

O-RING - Call your local BRP dealership

420230380

Unavailable

24

Inter.Thermost.*Switch-Thermo Fan

420265396

Unavailable

25

O-Ring

293300059

Unavailable

26

Intake Adaptor

420267230

Unavailable

27

Flat Washer 6 mm

234061410

Unavailable

28

Socket Head Screw M6 X 25

205062544

Unavailable

29

Carburator Flange 52 mm

420267240

Unavailable

30

Norma Gear Clamp

293650090

Unavailable

31

Loctite 243, 10 ml

293800060

Unavailable

32

Grease, Super Lube

293550030

Unavailable

33

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
