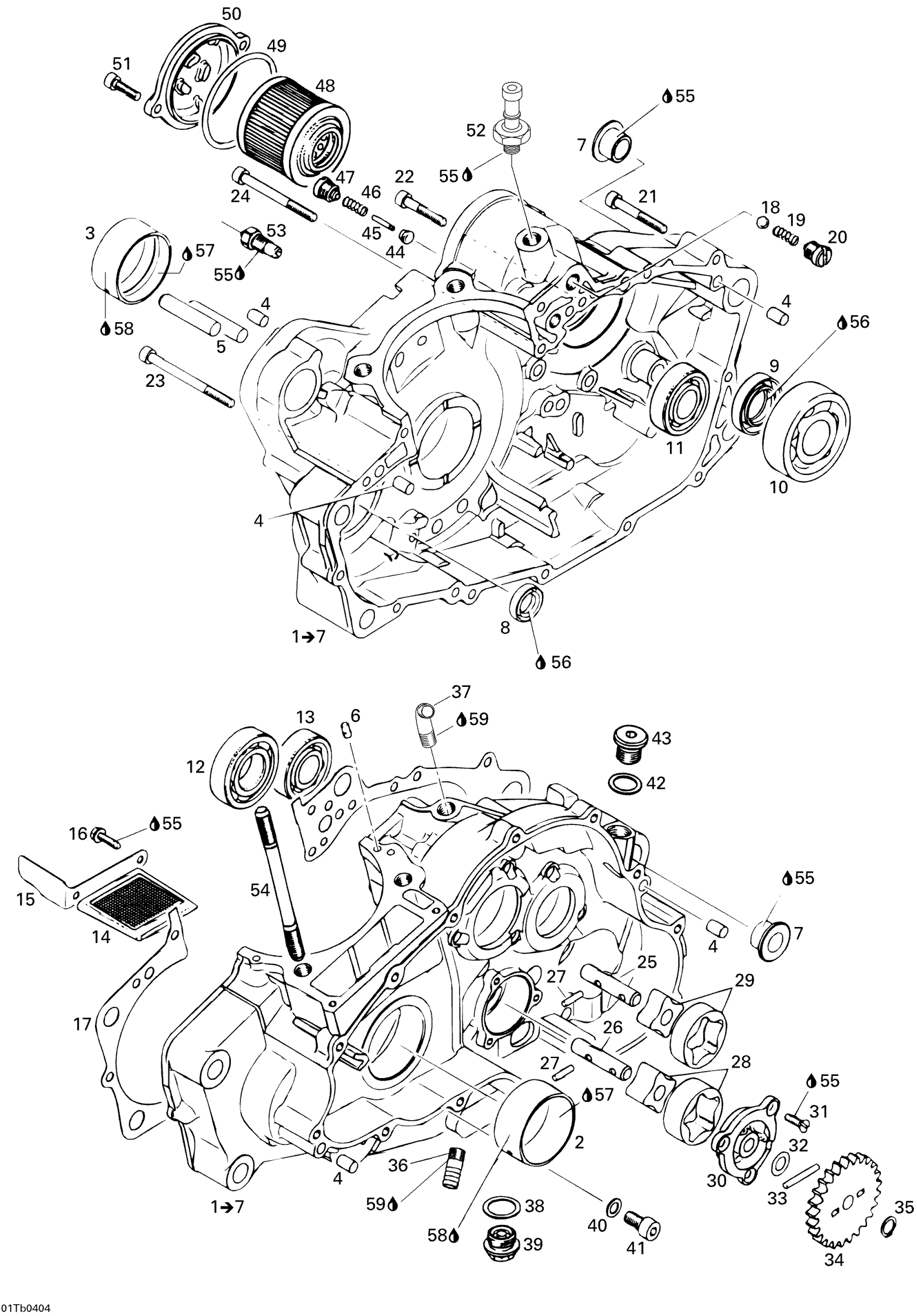

Can-Am DS 650/DS 650 Baja/X, 2004 01- Crankcase Diagram

#

Description
Price

1

CRANKCASE ASS'Y - Call your local BRP dealership | Includes 1 to 7

420296346

Unavailable

2

BUSHING - Call your local BRP dealership

420233680

Unavailable

3

BUSHING - Call your local BRP dealership

420233677

Unavailable

4

Center Pin 8 X 12

420632010

Unavailable

5

Location Pin 10 M6x50

420229302

Unavailable

6

Drive Pin 5 X 10

420929650

Unavailable

7

SLEEVE - Call your local BRP dealership

420247320

Unavailable

8

OIL SEAL - Call your local BRP dealership

420430550

Unavailable

9

OIL SEAL - Call your local BRP dealership

420230395

Unavailable

10

Ball Bearing

420932822

Unavailable

11

BALL BEARING 6303 - Call your local BRP dealership

420232501

Unavailable

12

Ball Bearing 6205

420232764

Unavailable

13

Ball Bearing

420932816

Unavailable

14

Oil Sieve

420256322

Unavailable

15

OIL SIEVE GUIDE - Call your local BRP dealership

420256430

Unavailable

16

Taptite Screw M5 X 16

420941928

Unavailable

17

GASKET - Call your local BRP dealership

420250910

Unavailable

18

BALL 8 MM - Call your local BRP dealership

420932830

Unavailable

19

SPRING, COMPRESSION - Call your local BRP dealership

420239280

Unavailable

20

VALVE PIN SCREW - Call your local BRP dealership

420256170

Unavailable

21

SOCKET HEAD SCREW M6 X 45 - Call your local BRP dealership

420241822

Unavailable

22

Socket Head Screw M6 X 35

420241810

Unavailable

23

SOCKET HEAD SCREW M6 X 75 - Call your local BRP dealership

420240531

Unavailable

24

SOCKET HEAD SCREW M6 X 65 - Call your local BRP dealership

420241262

Unavailable

25

OIL PUMP SHAFT - Call your local BRP dealership

420220762

Unavailable

26

Oil Pump Shaft

420220760

Unavailable

27

Needle Pin

420232731

Unavailable

28

Oil Pump Rotor, Suction

420256681

Unavailable

29

Oil Pump Rotor, Pressure

420256671

Unavailable

30

Oil Pump Cover

420210642

Unavailable

31

Torx Head Screw M5 X 16

420640823

Unavailable

32

Thrust Washer

420827590

Unavailable

33

Needle Pin

420232431

Unavailable

34

Oil Pump Gear, 25 Teeth

420234560

Unavailable

35

Snap Ring

420245330

Unavailable

36

HOSE NIPPLE - Call your local BRP dealership

420256330

Unavailable

37

ANGLE TUBE - Call your local BRP dealership

420924245

Unavailable

38

Crush Washer

420552280

Unavailable

39

Drain Plug M18 X 1.5

420840278

Unavailable

40

Sealing Ring

420950141

Unavailable

41

Socket Head Screw M8 X 16

205081660

Unavailable

42

O-Ring

420430622

Unavailable

43

PLUG SCREW M16 X 1.5 - Call your local BRP dealership

420240232

Unavailable

44

RETAINING VALVE - Call your local BRP dealership

420260570

Unavailable

45

VALVE PIN - Call your local BRP dealership

420256150

Unavailable

46

SPRING, COMPRESSION - Call your local BRP dealership

420239810

Unavailable

47

VALVE PIN SCREW - Call your local BRP dealership

420256170

Unavailable

48

Oil Filter

420256188

Unavailable

49

O-Ring

420230923

Unavailable

50

OIL FILTER COVER - Call your local BRP dealership

420610230

Unavailable

51

Socket Head Screw M6 X 30

205063044

Unavailable

52

Inter.Press.Hui*Switch-Oil Pressure

420856539

Unavailable

53

Position Switch

420241856

Unavailable

54

STUD M10 X 223 - Call your local BRP dealership

420640470

Unavailable

55

Loctite 243, 10 ml

293800060

Unavailable

56

Grease, Super Lube

293550030

Unavailable

57

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

58

Petamo Grease, GHY133N, 400 g

420899271

Unavailable

59

Loctite 277, 10 ml

293800073

Unavailable
