10- Electrical System

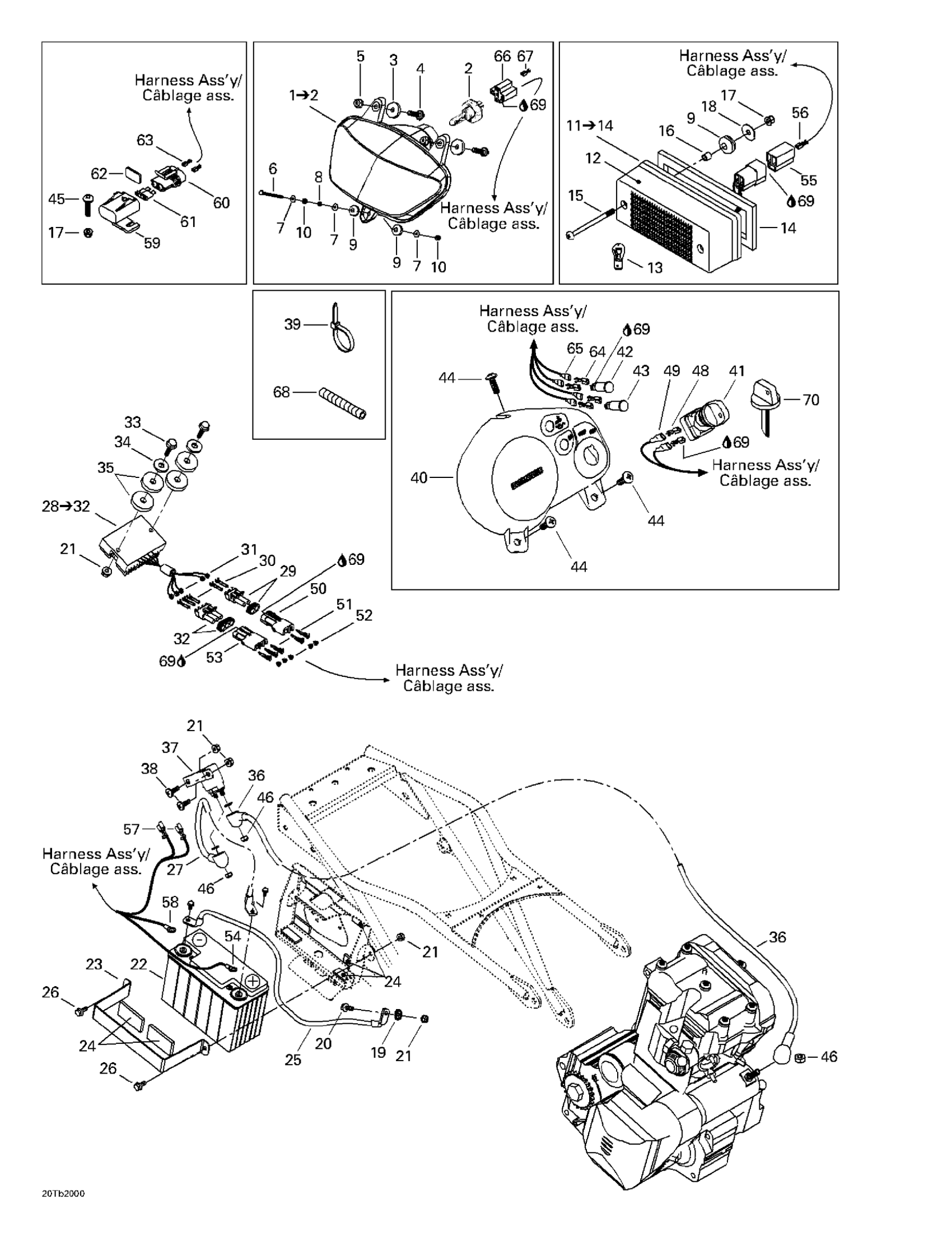

Can-Am DS 650, 7449, 2001 10- Electrical System Diagram
#
1
HEADLAMP - Call your local BRP dealership
710000053
Unavailable
2
Halogen Bulb, 60/55 W, 12 V ( H4 )
515176274
Unavailable
3
RUBBER WASHER - Call your local BRP dealership
250200002
Unavailable
4
Hex. Flange Screw M8 X 35
207683544
Unavailable
5
Hex. Flange Elastic Nut M8
233281414
Unavailable
6
PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership
208656091
Unavailable
7
Washer
517124300
Unavailable
8
Nut
414806900
Unavailable
9
Grommet
414036300
Unavailable
10
Hex. Flange Elastic Nut M5
233251414
Unavailable
11
Tail Light Housing
710000102
Unavailable
12
TAIL LIGHT LENS, RED - Call your local BRP dealership
710000055
Unavailable
13
Bulb
520000758
Unavailable
14
GASKET - Call your local BRP dealership
710000129
Unavailable
15
PHILLIPS SCREW M5 X 70 - Call your local BRP dealership
208657041
Unavailable
16
Bushing
293900112
Unavailable
17
Hex. Flange Elastic Nut M5
233251414
Unavailable
18
Flat Washer
224060201
Unavailable
19
Lock Washer Serrated M6
250200041
Unavailable
20
Hex. Flange Screw M6 X 20
207662044
Unavailable
21
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
22
Battery, 13 Amperes | Includes 7 to 8
710000283
Unavailable
23
RUBBER STRAP, BLACK - Call your local BRP dealership
710000087
Unavailable
24
PROTECTOR - Call your local BRP dealership
293830083
Unavailable
25
Ground Cable
710000086
Unavailable
26
Hex. Flange Screw M6 X 16
207661644
Unavailable
27
Positive Cable
710000066
Unavailable
28
Rectifier Ass’Y | Includes 30 - 34.
278001554
Unavailable
29
Male Connector, 2 Circuits
278000220
Unavailable
30
Female Terminal
409007300
Unavailable
31
Wire Seal
278000218
Unavailable
32
Male Housing, 3 Circuits
278000273
Unavailable
33
Hex. Flange Screw M6 X 35
207663544
Unavailable
34
Washer
224060251
Unavailable
35
RUBBER WASHER - Call your local BRP dealership
250200002
Unavailable
36
POSITIVE CABLE - Call your local BRP dealership | Includes 35 to 40
710000069
Unavailable
37
Starter Relay
515176011
Unavailable
38
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
39
Tie-Rap 180 mm
414115200
Unavailable
39
Tie Wrap 94 mm | 4X4
293750001
Unavailable
39
Tie Wrap 368 mm
293750008
Unavailable
40
DASHBOARD - Call your local BRP dealership | DS 650
710000060
Unavailable
41
IGNITION SWITCH - Call your local BRP dealership
710000075
Unavailable
42
Pilot Lamp, Red
710000062
Unavailable
43
Pilot Lamp
710000063
Unavailable
44
PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership
732600009
Unavailable
45
Forming Screw M5 x 16
250000676
Unavailable
46
Elastic Stop Nut M6
232561414
Unavailable
47
Harness Ass'y (Not Shown)
710000178
Unavailable
48
Female Terminal | DS 650 X
278001009
Unavailable
49
Insulated Sheath
278001007
Unavailable
50
Female Housing, 2 Circuits
278000217
Unavailable
51
Male Terminal
409004300
Unavailable
52
Wire Seal
710000048
Unavailable
53
Female Terminal Housing, 3 Circuits | XT Models
278000281
Unavailable
54
Open Barrel Terminal
278001392
Unavailable
55
Female Housing
409204300
Unavailable
56
Female Terminal
561503100
Unavailable
57
Female Terminal
409010700
Unavailable
58
Open Barrel
278000992
Unavailable
59
Fuse Holder Cap
278001326
Unavailable
60
Fuse Holder
278001325
Unavailable
61
Fuse, 15 Amperes
278000343
Unavailable
61
Fuse, 25 Amperes
278001443
Unavailable
62
Cushion
278000805
Unavailable
63
Female Terminal
710000113
Unavailable
64
FEMALE TERMINAL - Call your local BRP dealership
710000114
Unavailable
65
Rubber Envelope Terminal
710000115
Unavailable
66
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
409202700
Unavailable
67
FEMALE TERMINAL - Call your local BRP dealership
515175321
Unavailable
68
Tubing 6 Mm 3000Mm Long
219704425
Unavailable
68
Tubing 10 MM 1000MM Long
219704407
Unavailable
68
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
69
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
70
BLANK KEY (B TYPE) - Call your local BRP dealership
710000101
Unavailable
70
BLANK KEY (A TYPE) - Call your local BRP dealership
710000137
Unavailable
