03- Ignition

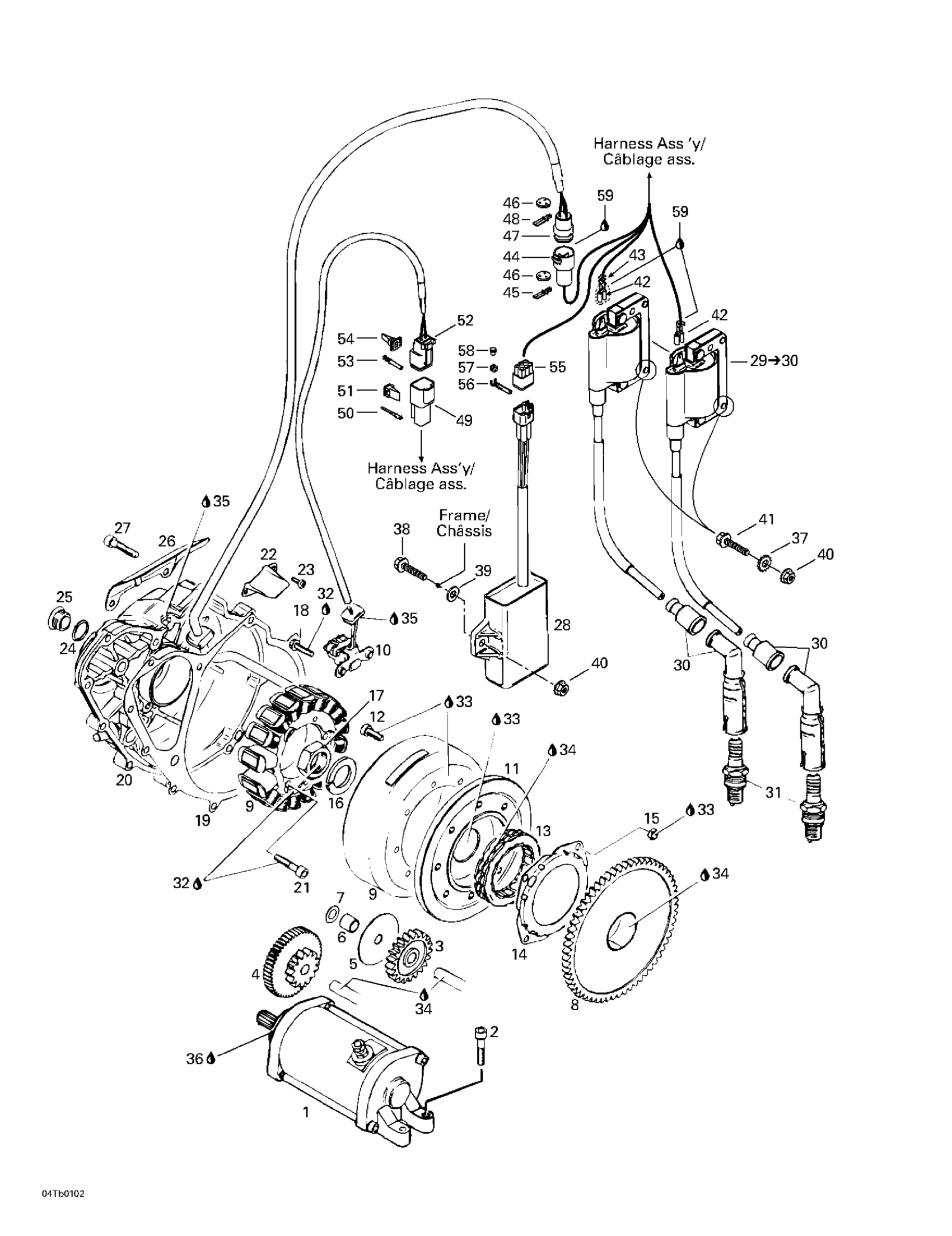

Can-Am DS 650, 7449, 2001 03- Ignition Diagram
#
1
Electric Starter
711294351
Unavailable
1
STARTER BRUSH KIT - Call your local BRP dealership
420294354
Unavailable
1
O-Ring For Starter (Not Illustrated)
293300103
Unavailable
2
Socket Head Screw M6 X 30
205063044
Unavailable
3
Intermediate Gear (24 Teeth)
711234655
Unavailable
4
Intermediate Gear, 11/52 Teeth
420234756
Unavailable
5
Thrust Washer
711627080
Unavailable
6
Spacer
711247785
Unavailable
7
Thrust Washer
420827590
Unavailable
8
Starting Gear (61 Teeth)
711634317
Unavailable
9
Magneto Ass'y 12V/280W
711295172
Unavailable
10
PICKUP ASS'Y - Call your local BRP dealership
711265153
Unavailable
11
FLYWHEEL ROTOR HUB - Call your local BRP dealership
420264577
Unavailable
12
SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership
420640980
Unavailable
13
Sprag Clutch
420958857
Unavailable
14
Housing-Clutch Sprag
711259192
Unavailable
15
Nut BM6
711242031
Unavailable
16
Lock Washer, 22 mm
420945759
Unavailable
17
Hex. Nut, M22 X 1.5
420842239
Unavailable
18
Taptite Screw M5 X 16
420941928
Unavailable
19
Gasket
711250920
Unavailable
20
Ignition Cover
711211291
Unavailable
21
Socket Head Screw M6 x 35
711241810
Unavailable
22
Interior Cable Support Ass'y
420251889
Unavailable
23
Phillips Screw M4 X 8
420240196
Unavailable
24
O-Ring
420250890
Unavailable
25
Drain Plug
420241801
Unavailable
26
Cable External Cover
711251990
Unavailable
27
Socket Head Screw M6 X 30
205063044
Unavailable
28
Amplifier Box
711265368
Unavailable
29
Ignition Coil
711265357
Unavailable
30
SPARK PLUG CAP - Call your local BRP dealership
420665010
Unavailable
31
Spark Plug, NGK/DR8EA
707000008
Unavailable
32
Loctite 243, 10 ml
293800060
Unavailable
33
Sealant Loctite 648
219703000
Unavailable
34
Not Available As Spare Part - Friction Washer
Unavailable
35
Sealing Compound Loctite 5366 310Ml
420297907
Unavailable
36
Was 420297616 Klueber Grease, 60g
219704464
Unavailable
37
Lock Washer Serrated M6
250200041
Unavailable
38
Hex. Flange Screw M6 X 20
207662044
Unavailable
39
Flat Washer
224061201
Unavailable
40
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
41
Hex. Flange Screw M6 X 25
207662544
Unavailable
42
FEMALE TERMINAL - Call your local BRP dealership
710000114
Unavailable
43
Rubber Envelope Terminal
710000115
Unavailable
44
MALE HOUSING - Call your local BRP dealership
409207900
Unavailable
45
MALE TERMINAL - Call your local BRP dealership
409011100
Unavailable
46
SEAL - Call your local BRP dealership
409208500
Unavailable
47
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
409208200
Unavailable
48
FEMALE TERMINAL - Call your local BRP dealership
409011900
Unavailable
49
Male Housing, 2 Circuits
409206900
Unavailable
50
Male Terminal
278000631
Unavailable
51
Male Lock, 2 Circuits
409207500
Unavailable
52
Female Connector, 2 Circuits
409207300
Unavailable
53
Female Terminal
278000632
Unavailable
54
FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership
409207100
Unavailable
55
Female Housing, 6 Circuits
710000081
Unavailable
56
Female Terminal
409012100
Unavailable
57
Seal
409012300
Unavailable
58
Cap
710000080
Unavailable
59
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
