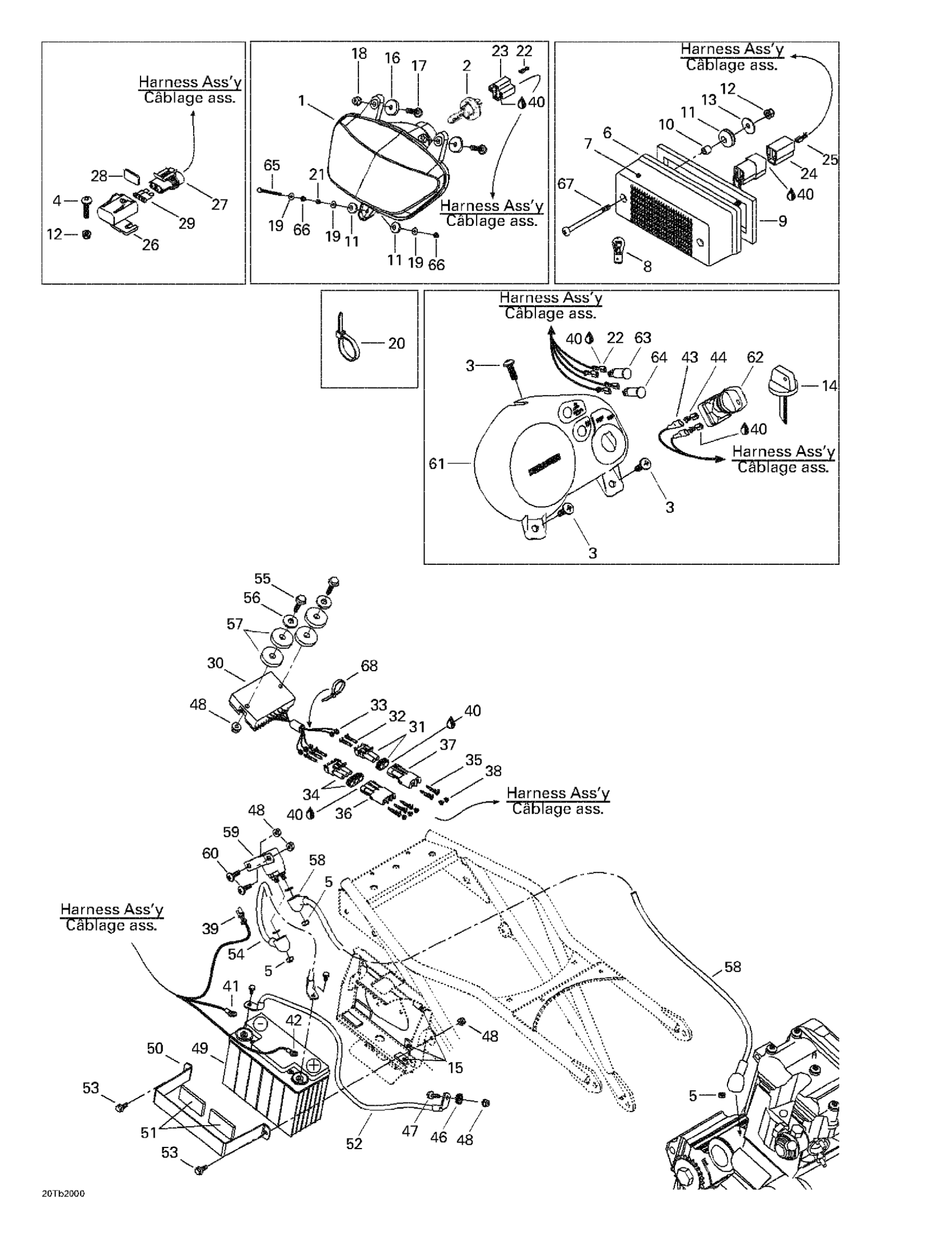

Can-Am DS 650, 7404, 2000 Electrical System Diagram

#

Description
Price

1

HEADLAMP - Call your local BRP dealership

710000053

Unavailable

2

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

3

PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership

732600009

Unavailable

4

Forming Screw M5 x 16

250000676

$0.83

5

Elastic Stop Nut M6

232561414

Unavailable

6

Tail Light Housing

710000102

Unavailable

7

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

8

Bulb

520000758

$7.49

9

GASKET - Call your local BRP dealership

710000129

$8.43

10

Bushing

293900112

Unavailable

11

Grommet

414036300

$2.22

12

Hex. Flange Elastic Nut M5

233251414

Unavailable

13

Flat Washer

224060201

Unavailable

14

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

$15.35

14

BLANK KEY (A TYPE) - Call your local BRP dealership

710000137

Unavailable

15

PROTECTOR - Call your local BRP dealership

293830083

$6.49

16

RUBBER WASHER - Call your local BRP dealership

250200002

$4.95

17

Hex. Flange Screw M8 X 35

207683544

$1.39

18

Hex. Flange Elastic Nut M8

233281414

Unavailable

19

Washer

517124300

Unavailable

20

Tie-Rap 180 mm

414115200

$0.09

20

Tie Wrap 368 mm

293750008

$0.85

21

Nut

414806900

Unavailable

22

FEMALE TERMINAL - Call your local BRP dealership

515175321

Unavailable

23

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

24

Female Housing

409204300

Unavailable

25

Female Terminal

561503100

Unavailable

26

Fuse Holder Cap

278001326

$6.03

27

Fuse Holder

278001325

$8.57

28

Cushion

278000805

$3.22

29

Fuse, 15 Amperes

278000343

$2.72

29

Fuse, 25 Amperes

278001443

Unavailable

30

Rectifier Ass’Y | Includes 30 - 34.

278001554

Unavailable

31

Male Connector, 2 Circuits

278000220

$11.02

32

Female Terminal

409007300

$0.36

33

Wire Seal

278000218

Unavailable

34

Male Housing, 3 Circuits

278000273

Unavailable

35

Male Terminal

409004300

$5.46

36

Female Terminal Housing, 3 Circuits | XT Models

278000281

Unavailable

37

Female Housing, 2 Circuits

278000217

Unavailable

38

Wire Seal

710000048

Unavailable

39

Female Terminal

409010700

$5.08

40

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

41

Open Barrel

278000992

$1.79

42

Open Barrel Terminal

278001392

Unavailable

43

Insulated Sheath

278001007

Unavailable

44

Female Terminal | DS 650 X

278001009

Unavailable

45

Harness Ass'y(Not Shown)

710000071

Unavailable

46

Lock Washer Serrated M6

250200041

Unavailable

47

Hex. Flange Screw M6 X 20

207662044

Unavailable

48

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

49

Battery, 13 Amperes | Includes 7 to 8

710000283

Unavailable

50

RUBBER STRAP, BLACK - Call your local BRP dealership

710000087

Unavailable

51

Tie Wrap 94 mm | 4X4

293750001

$0.83

52

Ground Cable

710000086

Unavailable

53

Hex. Flange Screw M6 X 16

207661644

Unavailable

54

Positive Cable

710000066

Unavailable

55

Hex. Flange Screw M6 X 35

207663544

$0.74

56

Washer

224060251

Unavailable

57

RUBBER WASHER - Call your local BRP dealership

250200002

$4.95

58

POSITIVE CABLE - Call your local BRP dealership | Includes 35 to 40

710000069

Unavailable

59

Starter Relay

515176011

Unavailable

60

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

61

DASHBOARD - Call your local BRP dealership | DS 650

710000060

Unavailable

62

IGNITION SWITCH - Call your local BRP dealership

710000075

$58.43

63

Pilot Lamp, Red

710000062

Unavailable

64

Pilot Lamp

710000063

Unavailable

65

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

66

Hex. Flange Elastic Nut M5

233251414

Unavailable

67

PHILLIPS SCREW M5 X 70 - Call your local BRP dealership

208657041

Unavailable
