2000 Can-Am DS 650, 7404 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2000 Can-Am DS 650, 7404, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

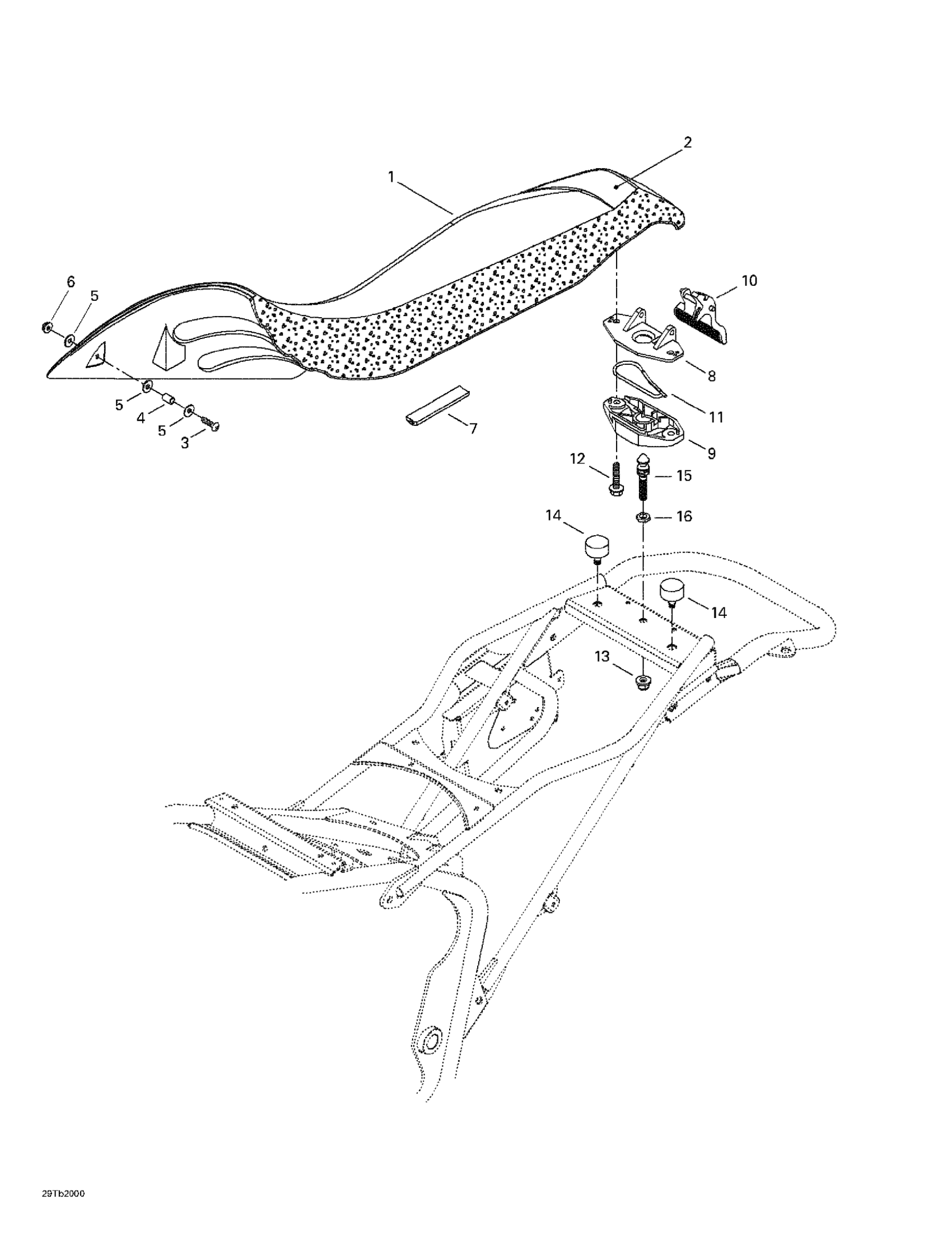

2000 Can-Am DS 650, 7404 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Seat Ass'y | Includes 1 - 4.

708000030

—
Out of stock

2

Seat Cover

708000033

—
Out of stock

3

SCREW M6 X 30 - Call your local BRP dealership

250000046

—
Out of stock

4

SPACER - Call your local BRP dealership

708000049

—
Out of stock

5

Flat Washer

224061201

6
Out of stock

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

2
Out of stock

7

Seal Tray 1000Mm Long

219704368

1
Out of stock

8

Latch Ass'y

269700109

1
Out of stock

9

Latch Ass'y

269700109

1
Out of stock

10

Latch Ass'y

269700109

1
Out of stock

11

Latch Spring

269700017

1

$7.27

In stock

12

Hex. Flange Screw M6 X 25

207562544

2
Out of stock

13

Seat Corner

708000035

—
Out of stock

14

LH Seat Corner

708000036

—
Out of stock

RH Seat Corner

708000037

—
Out of stock

15

LATCH STUD - Call your local BRP dealership

291000689

—
Out of stock

16

Hex. Jam Nut M10

232100600

1

$1.85

In stock

17

1

$1.26

In stock

18

Rubber Stopper

708000758

2
Out of stock
