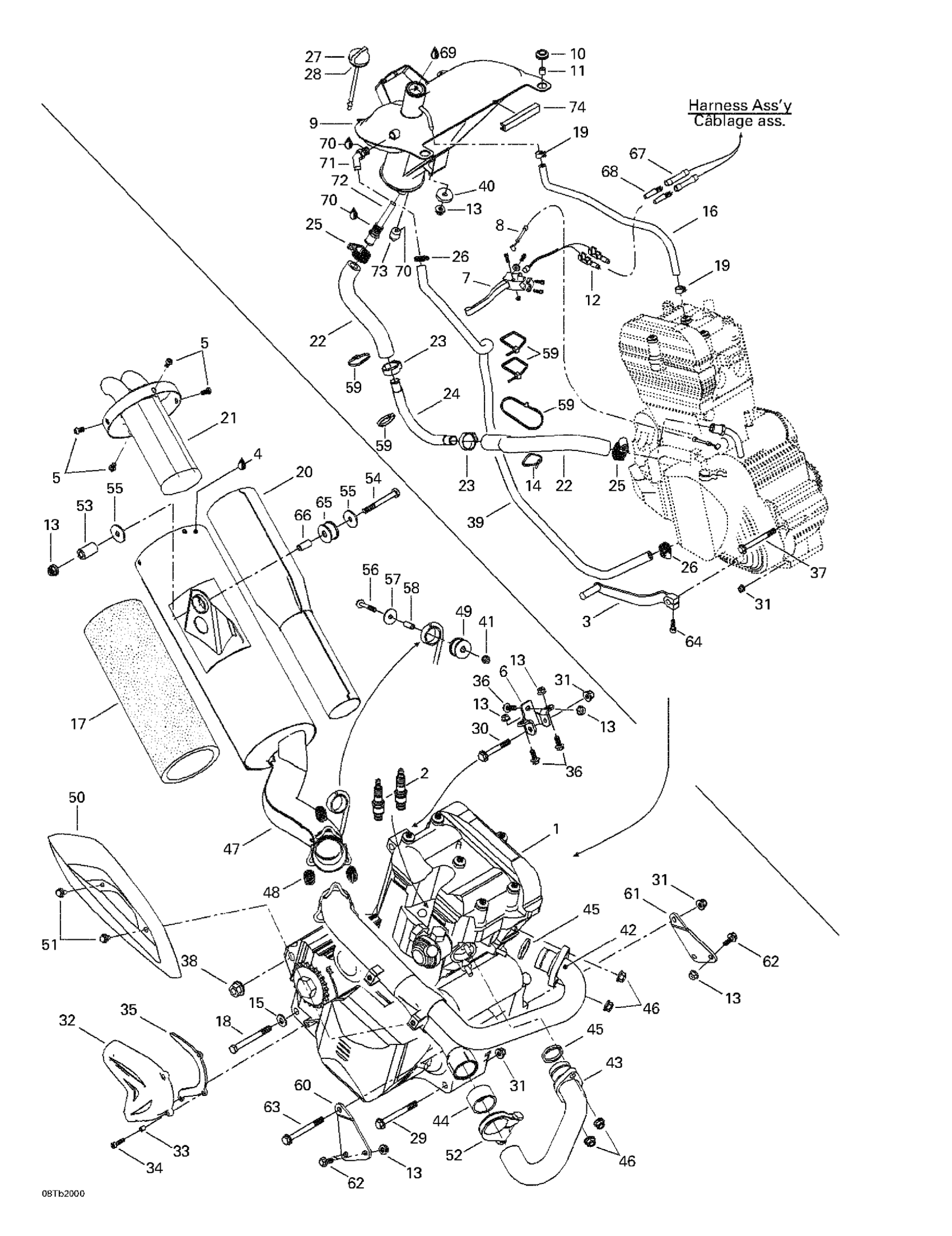

Can-Am DS 650, 7404, 2000 Exhaust System Diagram

#

Description
Price

1

Rotax 4 Strokes Engine <<654>>

707000023

Unavailable

2

Spark Plug, NGK/DR8EA

707000008

$4.03

3

SHIFTER PEDAL - Call your local BRP dealership

711248317

Unavailable

4

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

5

Socket Screw Button Head M6 X 10 | DS 650

250000436

Unavailable

6

Support Bracket

707000029

Unavailable

7

Shifter Lever | Includes 5 to 6

707000035

Unavailable

8

SHIFTER LEVER CABLE - Call your local BRP dealership

707000027

Unavailable

9

Oil Tank

709000012

Unavailable

10

Grommet

293720062

Unavailable

11

Spacer

707000058

Unavailable

12

Male Terminal

278000230

Unavailable

13

Hex. Flange Elastic Nut M8

233281414

Unavailable

14

Tie Wrap 368 mm

293750008

$0.85

15

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

16

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

17

Insulator | DS 650

707600089

Unavailable

18

Hex. Screw M10 X 120, Scotch Grip

230202046

Unavailable

19

Spring Clamp

414415200

$0.83

20

Perforated Tube | DS 650

707600053

Unavailable

21

END PIECE - Call your local BRP dealership | DS 650

707600066

Unavailable

22

HOSE 15.8 MM, METER - Call your local BRP dealership

707000098

Unavailable

23

Crimp Clamp

293650099

Unavailable

24

INTAKE TUBE - Call your local BRP dealership

707000059

Unavailable

25

Tridon Gear Clamp

293650051

Unavailable

26

Tridon Gear Clamp

293650171

Unavailable

27

Oil Cap Ass'y | Includes 42 to 43

707000047

Unavailable

28

O-RING - Call your local BRP dealership

293250009

$8.43

29

Oil Dip Stick

707000060

Unavailable

30

Hex. Screw M10 X 70, Scotch Grip

207507046

Unavailable

31

Hex. Flange Elastic Nut M10

233201436

Unavailable

32

Pinion Cover

707000024

Unavailable

33

Spacer

707000065

$6.45

34

Socket Head Screw M6 X 25

205062544

$0.88

35

Chain Guard

707000028

Unavailable

36

Hex. Flange Screw M8 X 25

207682544

$0.90

37

HEX. SCREW M14 X 150, SCOTCH GRIP - Call your local BRP dealership

230275044

Unavailable

38

ELASTIC FLANGED NUT M14 - Call your local BRP dealership

233271414

Unavailable

39

HOSE 9.5 MM, METER - Call your local BRP dealership

709000022

Unavailable

40

RUBBER WASHER - Call your local BRP dealership

250200002

$4.95

41

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

42

LH TUNED PIPE - Call your local BRP dealership

707600019

Unavailable

43

RH Tuned Pipe

707600095

Unavailable

44

PIPE GASKET - Call your local BRP dealership

707600020

Unavailable

45

PIPE GASKET - Call your local BRP dealership

707600069

Unavailable

46

Hex. Flange Nut M8

233081416

Unavailable

47

Tuned Pipe | DS 650

707600065

Unavailable

48

Spring

415107100

$6.20

49

Anti-Vibration Rubber

707600702

$8.34

50

Heat Shield

707600074

Unavailable

51

Hex. Flange Screw M6 X 12

207661244

Unavailable

52

GEAR CLAMP - Call your local BRP dealership

293650093

Unavailable

53

SPACER - Call your local BRP dealership

707600049

Unavailable

54

Hex. Flange Screw M8 X 70

207687044

Unavailable

55

Flat Washer

224081301

$0.86

56

Hex. Flange Screw M6 X 40

207664044

$2.18

57

Washer

224060251

Unavailable

58

Spacer

707600070

Unavailable

59

Tie-Rap 180 mm

414115200

$0.09

60

RH Support

707000071

Unavailable

61

LH Support

707000072

Unavailable

62

Hex. Flange Screw M8 X 25

207682544

$0.90

63

Hex. Screw M10 X 100, Scotch Grip

230500046

Unavailable

64

Socket Head Screw M6 X 20

205062047

Unavailable

65

Vibration Damper

707603323

Unavailable

66

Bushing

293900106

Unavailable

67

Insulated Sheath

278001007

Unavailable

68

Female Terminal | DS 650 X

278001009

Unavailable

69

Not Available As Spare Part - Friction Washer

Unavailable

70

Was 293800013 Loctite 56765

219704454

Unavailable

71

Angular Tube

420922242

Unavailable

72

STRAINER - Call your local BRP dealership

707000076

$11.62

73

Magnetic Cap

250000000

Unavailable

74

TRIM 30000MM LONG - Call your local BRP dealership

219704405

Unavailable

75

Adaptor

707000093

Unavailable

76

Loctite 609, 10 ml

413703100

$24.58

77

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

78

Hex. Screw M10 X 110, Scotch Grip

230501046

Unavailable

79

Loctite 271, 10 ml

293800005

Unavailable

80

Flat Washer 14 mm

234071410

Unavailable
