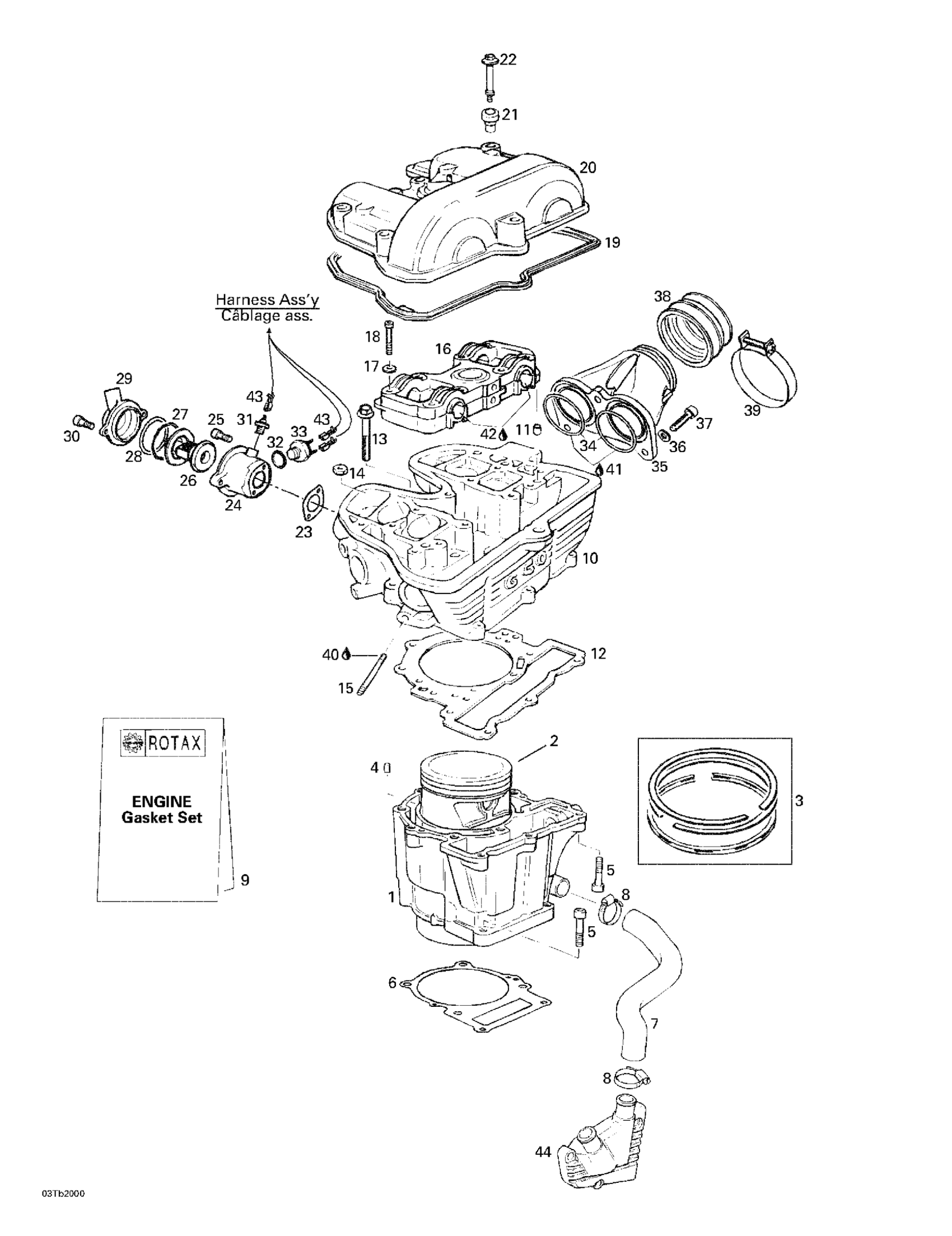

Can-Am DS 650, 7404, 2000 Cylinder, Cylinder Head Diagram

#

Description
Price

1

CYLINDER WITH PISTON ASS'Y - Call your local BRP dealership

711223906

Unavailable

2

Piston Ass'y | Includes 18 - 19.

711295185

Unavailable

3

Piston Ring Set

420295184

Unavailable

4

Drive Pin 5 X 10

420929650

Unavailable

5

Socket Head Screw M6 X 30

205063044

Unavailable

6

Gasket

711650010

Unavailable

7

Water Cooling Hose

711222450

Unavailable

8

Tridon Gear Clamp

293650051

Unavailable

9

Gasket Set

711294768

Unavailable

10

Cylinder Head

711223916

Unavailable

11

Center Pin 8 X 12

420632010

Unavailable

12

GASKET - Call your local BRP dealership

420650020

Unavailable

13

Hex. Flange Screw M8 X 45

207684544

Unavailable

14

Hex. Flange Nut M10

233101414

Unavailable

15

STUD M8 X 58 - Call your local BRP dealership

420240362

Unavailable

16

Camshaft Bridge

711211326

Unavailable

17

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

18

Socket Head Screw M6 x 45

711241820

Unavailable

19

GASKET - Call your local BRP dealership

420250900

Unavailable

20

Valve Cover

711211301

Unavailable

21

Rubber Bushing

711260050

Unavailable

22

DISTANCE SCREW M6 X 47.9 - Call your local BRP dealership

420240906

Unavailable

23

Gasket

711650060

Unavailable

24

Thermostat Housing

711222430

Unavailable

25

Socket Head Screw M5 x 18

711840518

Unavailable

26

Thermostat

420222463

Unavailable

27

Corrugated Washer

711245770

Unavailable

28

O-Ring

711650030

Unavailable

29

Thermostat Cover

711222440

Unavailable

30

Socket Head Screw M5 x 16

711840512

Unavailable

31

Thermostat Fan Switch

711265392

Unavailable

32

O-Ring

711230380

Unavailable

33

Inter.Thermost.*Switch-Thermo Fan

420265396

Unavailable

34

O-Ring

293300059

$7.31

35

Intake Adaptor

711267230

Unavailable

36

Flat Washer 6 mm

234061410

Unavailable

37

Socket Head Screw M6 X 25

205062544

$0.88

38

Carburator Flange 52 mm

420267240

$46.12

39

Clamp

711853590

Unavailable

40

Loctite 243, 10 ml

293800060

$20.77

41

Grease, Super Lube

293550030

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Not Available As Spare Part - Friction Washer

Unavailable

44

Waterpump Cover

711211270

Unavailable
