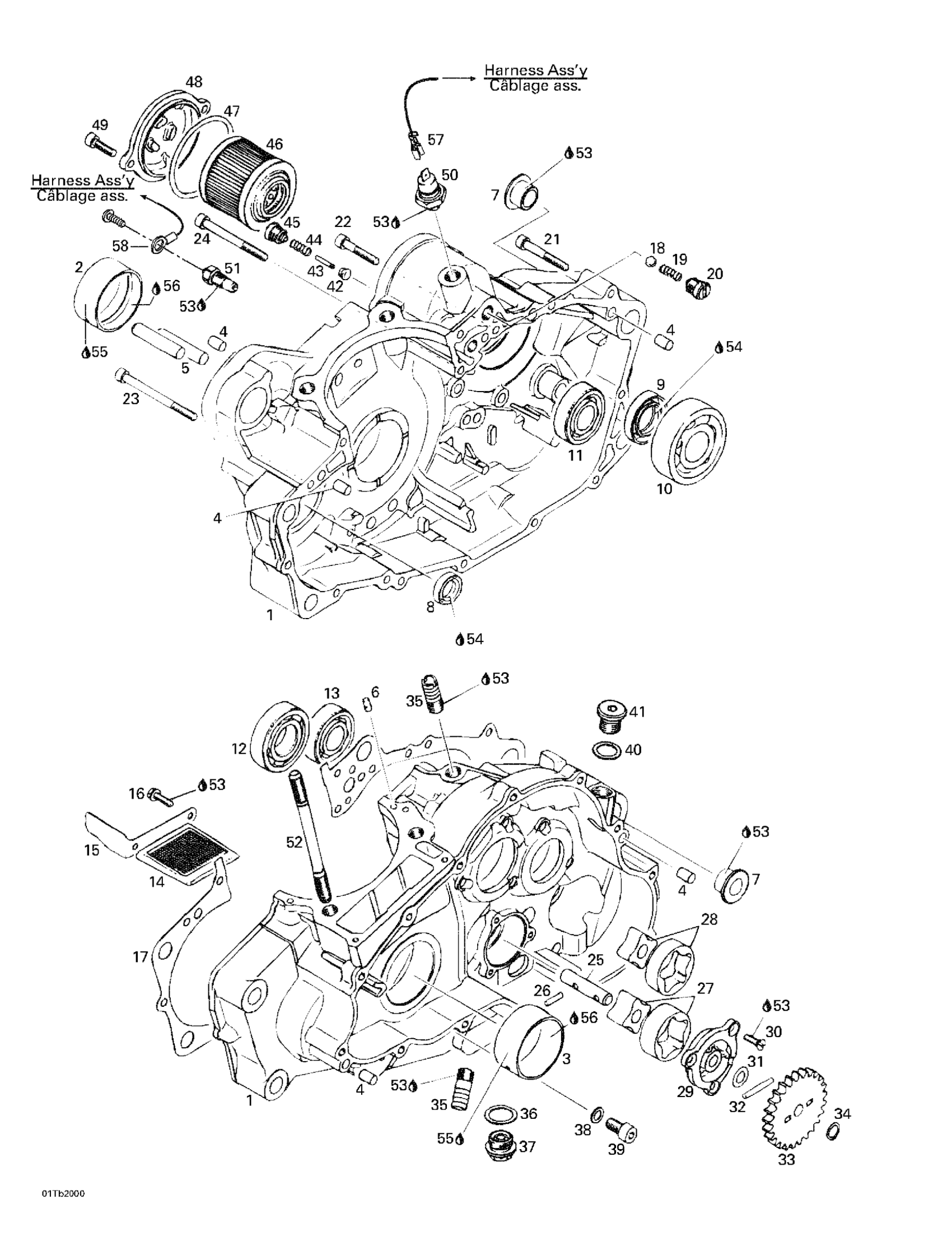

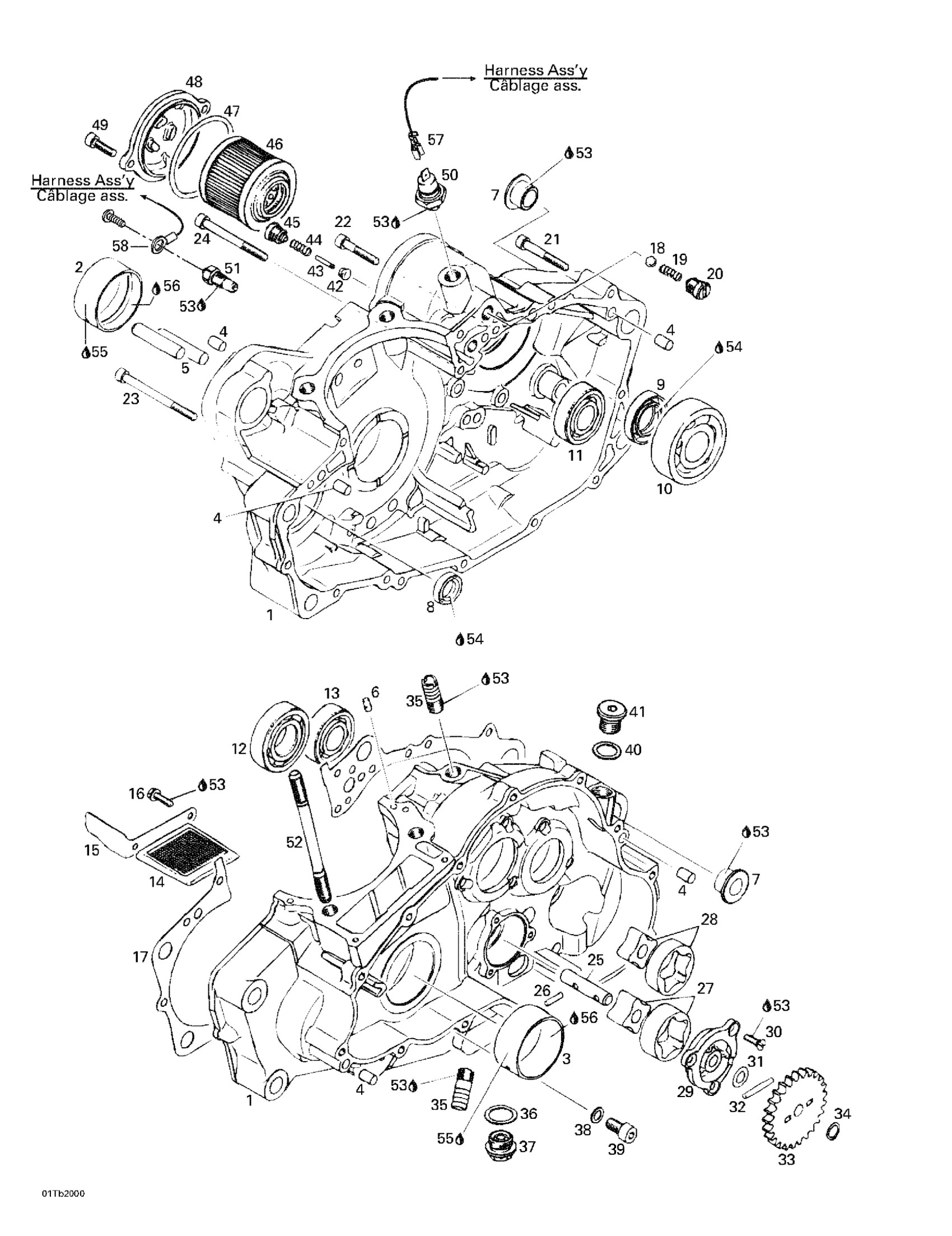

Can-Am DS 650, 7404, 2000 Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y

711296346

Unavailable

2

BUSHING - Call your local BRP dealership

420233677

Unavailable

3

BUSHING - Call your local BRP dealership

420233680

Unavailable

4

Center Pin 8 X 12

420632010

$3.07

5

Location Pin 10 M6x50

420229302

$3.11

6

Drive Pin 5 X 10

420929650

$1.34

7

Sleeve

711247320

Unavailable

8

Oil Seal

711430550

Unavailable

9

OIL SEAL - Call your local BRP dealership

420230395

Unavailable

10

Ball Bearing

420932822

$28.97

11

Ball Bearing 6303

711232501

Unavailable

12

Ball Bearing 6205

420232764

$24.58

13

Ball Bearing

420932816

$40.37

14

Oil Sieve

420256322

$27.66

15

Oil Sieve Guide

711256430

Unavailable

16

Taptite Screw M5 X 16

420941928

Unavailable

17

Gasket

711250910

Unavailable

18

BALL 8 MM - Call your local BRP dealership

420932830

Unavailable

19

Spring (Compression)

711239810

Unavailable

20

Valve Pin Screw

711256170

Unavailable

21

Socket Head Screw M6 x 45

711241822

Unavailable

22

Socket Head Screw M6 x 35

711241810

Unavailable

23

Socket Head Screw M6 x 75

711240531

Unavailable

24

Socket Head Screw M6 x 65

711241262

Unavailable

25

Oil Pump Shaft

711220762

Unavailable

26

Needle Pin

420232731

$1.56

27

Oil Pump Rotor, Suction

420256681

$34.58

28

Oil Pump Rotor, Pressure

420256671

$32.28

29

Oil Pump Cover

711210642

Unavailable

30

Torx Head Screw M5 X 16

420640823

$1.85

31

Thrust Washer

420827590

$3.86

32

Needle Pin

420232431

$3.67

33

Oil Pump Gear (25 Teeth)

711234560

Unavailable

34

Snap Ring

420245330

$1.43

35

Oil Pump Shaft

711220760

Unavailable

36

Crush Washer

420552280

$2.99

37

Drain Plug M18 X 1.5

420840278

$23.05

38

Sealing Ring

420950141

$1.64

39

Socket Head Screw M8 X 16

205081660

Unavailable

40

O-Ring

420430622

$3.61

41

Plug Screw M16 x 1,5

711240232

Unavailable

42

Retaining Valve

711260570

Unavailable

43

Valve Pin

711256150

Unavailable

44

Compression Spring

711239280

Unavailable

45

Valve Pin Screw

711256170

Unavailable

46

Oil Filter

711256186

Unavailable

47

O-Ring

420230923

$2.59

48

Oil Filter Cover

711210411

Unavailable

49

Socket Head Screw M6 X 20

205062044

$1.07

50

Inter.Press.Hui*Switch-Oil Pressure

420856539

$33.77

50

Oil Pressure Switch | Engine Serial number lower and equal to 699918

711956169

Unavailable

51

Position Switch

420241856

$35.14

52

Stud M10 x 223

711640470

Unavailable

53

Loctite 243, 10 ml

293800060

$20.77

54

Grease, Super Lube

293550030

$24.67

55

Was 420297616 Klueber Grease, 60g

219704464

$23.82

56

Not Available As Spare Part - Friction Washer

Unavailable

57

FEMALE TERMINAL - Call your local BRP dealership

710000114

Unavailable

58

Not Available As Spare Part - Friction Washer

Unavailable

59

Tie Wrap 94 mm | 4X4

293750001

$0.83
