10- Electrical System 2

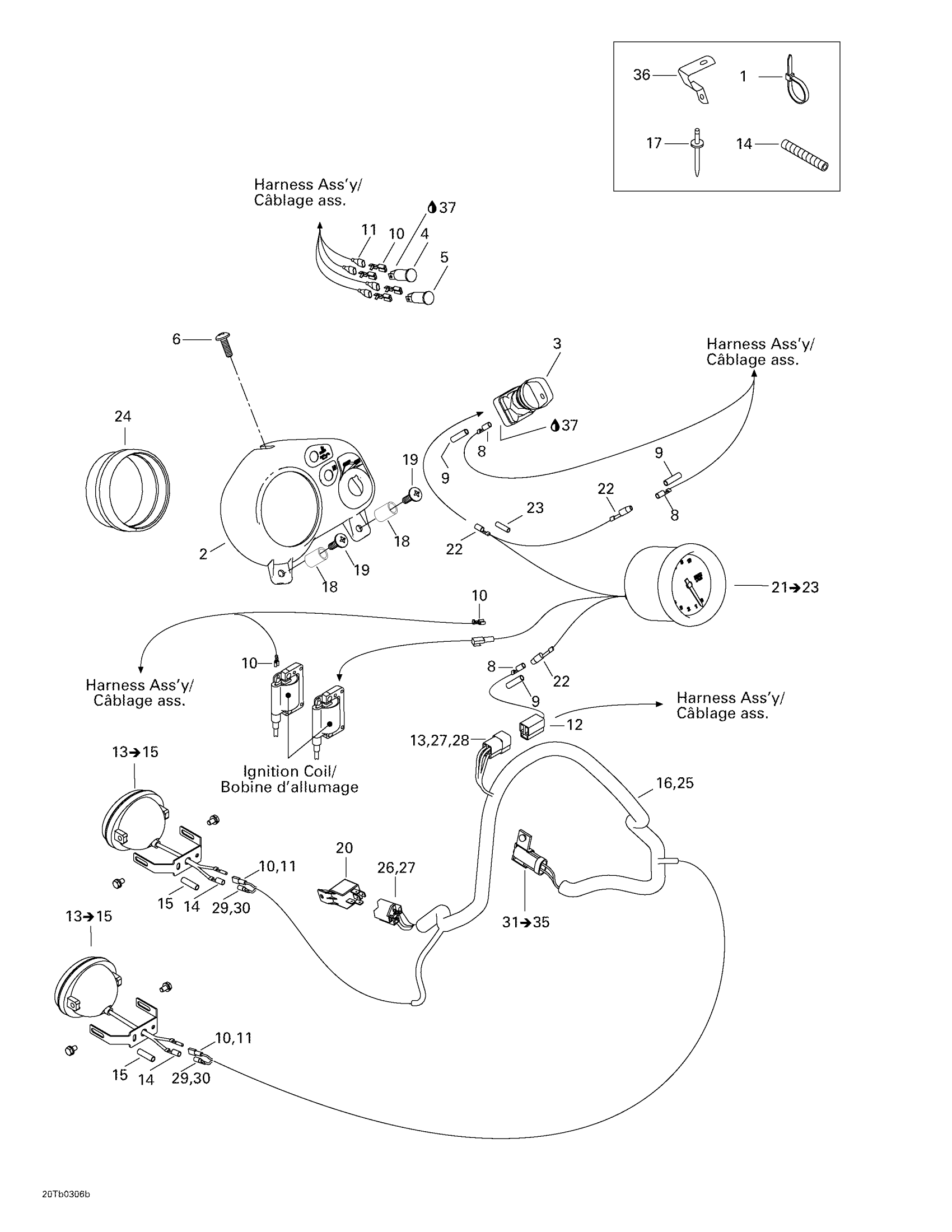

Can-Am DS 650, 2003 10- Electrical System 2 Diagram
#
1
Tie-Rap 180 mm
414115200
Unavailable
1
Tie Wrap 94 mm | 4X4
293750001
Unavailable
1
Tie Wrap 368 mm
293750008
Unavailable
2
DASHBOARD - Call your local BRP dealership | DS 650 X
710000250
Unavailable
2
DASHBOARD - Call your local BRP dealership | DS 650
710000060
Unavailable
3
IGNITION SWITCH - Call your local BRP dealership
710000075
Unavailable
3
BLANK KEY (A TYPE) - Call your local BRP dealership
710000137
Unavailable
3
BLANK KEY (B TYPE) - Call your local BRP dealership
710000101
Unavailable
4
Pilot Lamp, Red
710000062
Unavailable
5
Pilot Lamp
710000063
Unavailable
6
Hex. Flange Screw M6 X 16
210261650
Unavailable
7
Harness Ass'y, Not Shown
710000226
Unavailable
8
Female Terminal | DS 650 X
278001009
Unavailable
9
Insulated Sheath
278001007
Unavailable
10
FEMALE TERMINAL - Call your local BRP dealership
710000114
Unavailable
11
Rubber Envelope Terminal
710000115
Unavailable
12
Female Housing
409204300
Unavailable
13
HEADLAMP - Call your local BRP dealership | DS 650 X / Includes 59 to 62
710000268
Unavailable
14
Female Terminal | DS 650 X
278001009
Unavailable
15
Insulated Sheath
278001007
Unavailable
16
Tubing 6 Mm 3000Mm Long
219704425
Unavailable
16
Was 409901700 Tubing (9 mm)
219704399
Unavailable
16
Tubing 10 MM 1000MM Long
219704407
Unavailable
16
Was 409901800 Tubing (13 mm)
219704400
Unavailable
16
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
17
Pop Rivet 3/16" | DS 650 X
390402000
Unavailable
18
Hose 6 mm
204000068
Unavailable
19
Hex. Flange Screw M6 X 16
210261650
Unavailable
19
Hex. Flange Screw M6 X 30 | International
210263050
Unavailable
20
Relay | DS 650 X
710010053
Unavailable
21
Tachometer | Includes 21 - 23.
710000267
Unavailable
21
Tachometer
710000251
Unavailable
22
Male Terminal
278000230
Unavailable
23
Insulated Sheath
278000770
Unavailable
24
Gauge Support
293720047
Unavailable
25
FRONT LAMP HARNESS ASS'Y - Call your local BRP dealership | DS 650 X / Includes 22 to 37
710000256
Unavailable
26
Female Terminal
561503100
Unavailable
27
Female Housing, 5 Circuits
409209900
Unavailable
28
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
29
Insulated Sheath
278001008
Unavailable
30
Male Terminal
278000230
Unavailable
31
Fuse, 15 Amperes
278000343
Unavailable
32
Cushion
278000805
Unavailable
33
Fuse Holder Cap
278001326
Unavailable
34
Fuse Holder
278001325
Unavailable
35
Female Terminal
710000113
Unavailable
36
Open Clamp
515175507
Unavailable
37
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
