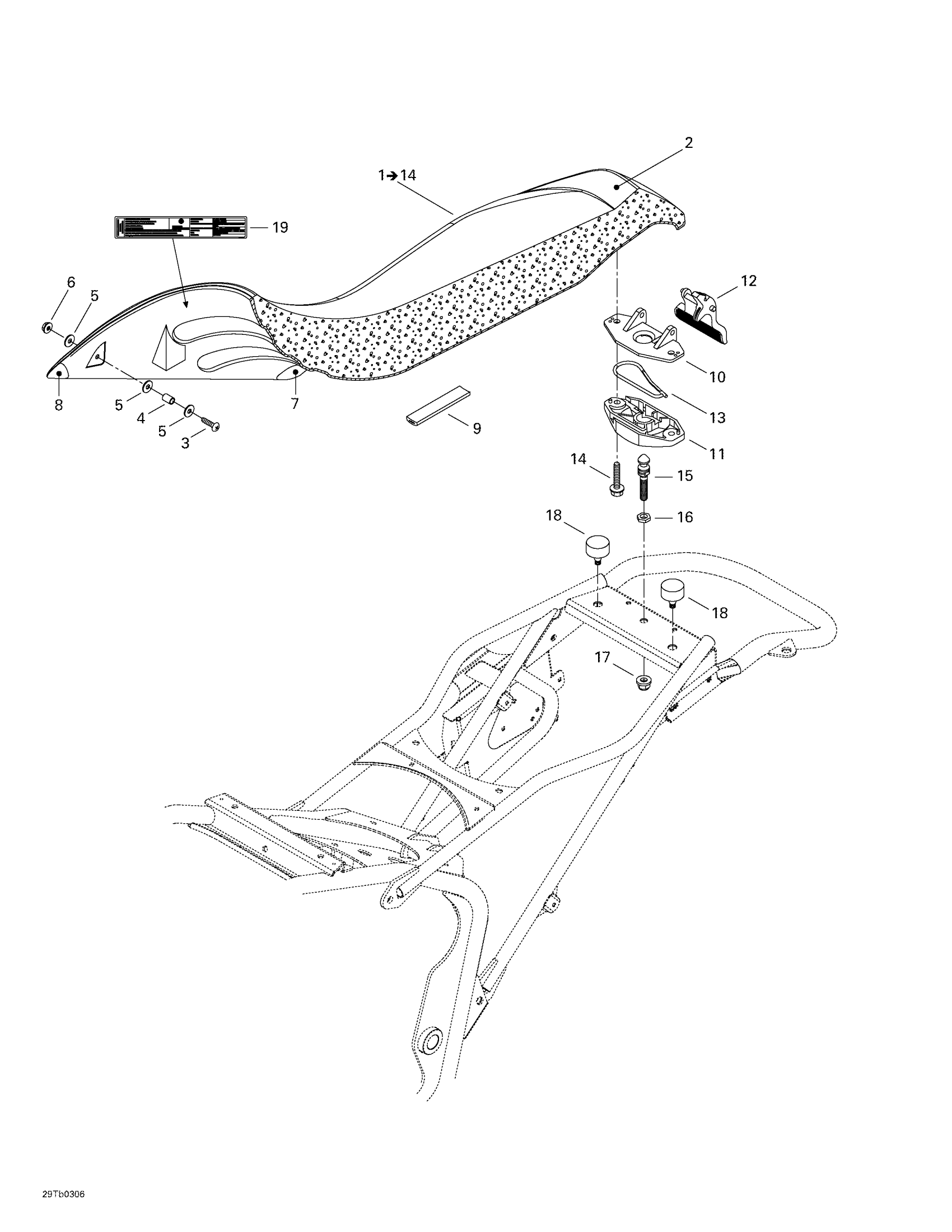

Can-Am DS 650, 2003 09- Seat Diagram
#
Description
Price
1
Seat Ass'y | Includes 1 - 14. DS 650.
708000153
Unavailable
Seat Ass'y | DS 650 Baja.
708000158
Unavailable
2
Seat Cover | DS 650.
708000154
Unavailable
Seat Cover
708000115
Unavailable
3
SCREW M6 X 30 - Call your local BRP dealership
250000046
Unavailable
4
SPACER - Call your local BRP dealership
708000049
Unavailable
5
Flat Washer
224061201
Unavailable
6
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
7
Seat Corner
708000155
Unavailable
SEAT CORNER, BLACK - Call your local BRP dealership
708000127
Unavailable
8
Seat Corner
708000156
Unavailable
Seat Corner
708000157
Unavailable
LH SEAT CORNER - Call your local BRP dealership
708000128
Unavailable
RH SEAT CORNER - Call your local BRP dealership
708000129
Unavailable
9
Seal Tray 1000Mm Long
219704368
Unavailable
10
Latch Ass'y
269700109
Unavailable
11
Latch Ass'y
269700109
Unavailable
12
Latch Ass'y
269700109
Unavailable
13
Latch Spring
269700017
Unavailable
14
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
Unavailable
15
LATCH STUD - Call your local BRP dealership
291000689
Unavailable
16
Hex. Jam Nut M10
232100600
Unavailable
17
Hex. Flange Elastic Nut M10
233201414
Unavailable
18
Rubber Stopper
708000758
Unavailable
19
Emission Label
704900397
Unavailable
