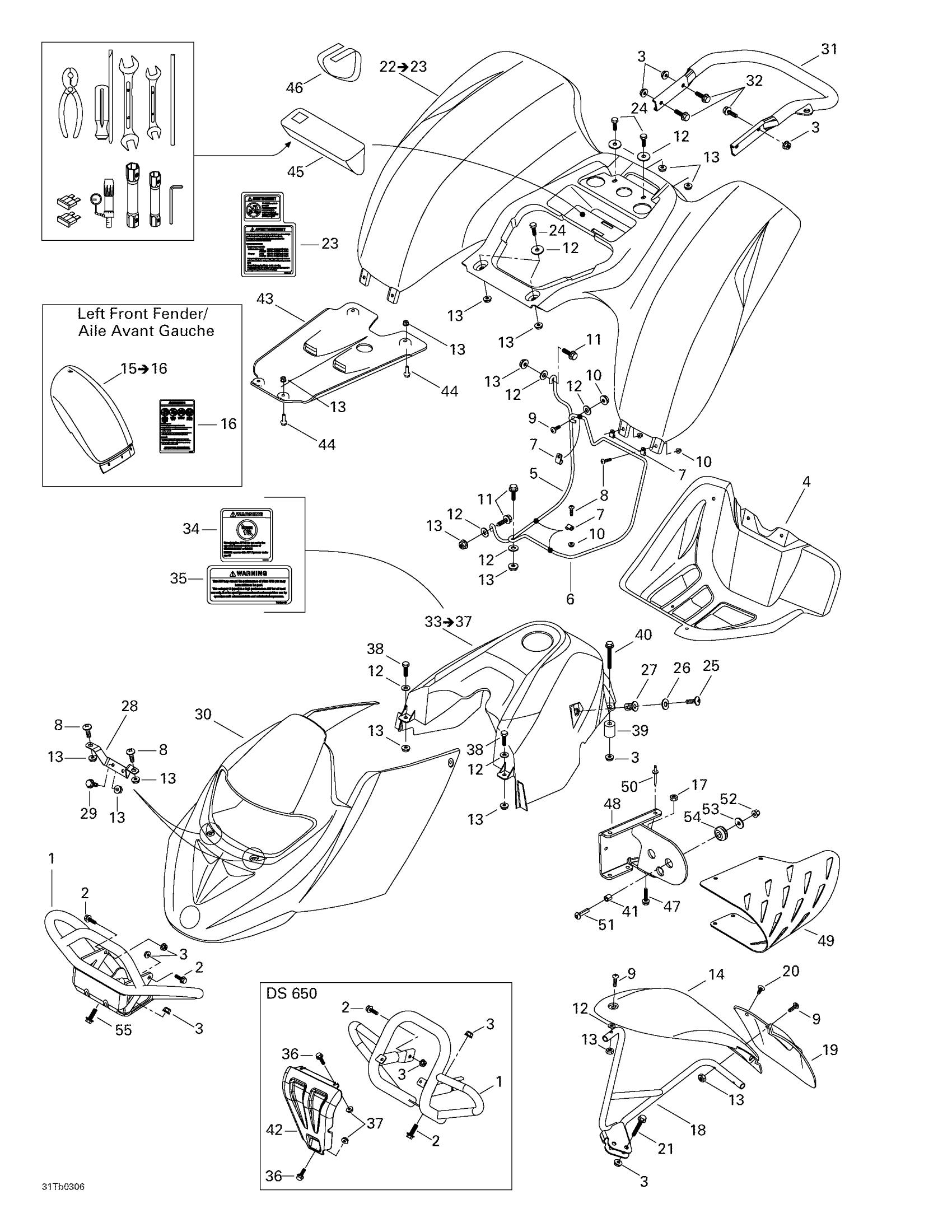

Can-Am DS 650, 2003 09- Body Diagram

#

Description
Price

1

BUMPER DS - Call your local BRP dealership | DS 650

715000172

Unavailable

BUMPER DS - Call your local BRP dealership | DS 650

715000172

Unavailable

2

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

Unavailable

Hex. Flange Screw M8 X 20

207682044

Unavailable

3

Hex. Flange Elastic Nut M8

233281414

Unavailable

4

RH FOOT PROTECTOR - Call your local BRP dealership

705000301

Unavailable

LH FOOT PROTECTOR - Call your local BRP dealership

705000302

Unavailable

5

RH Support

705000116

Unavailable

LH Support

705000119

Unavailable

6

RH FOOT PROTECTOR SUPPORT, EXTERIOR - Call your local BRP dealership

705000117

Unavailable

LH FOOT PROTECTOR SUPPORT, EXTERIOR - Call your local BRP dealership

705000120

Unavailable

7

Gear Clamp

293650150

Unavailable

8

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

9

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

250000032

Unavailable

10

Elastic Stop Nut M6

232561414

Unavailable

11

Hex. Flange Screw M6 X 25

207662544

Unavailable

12

Flat Washer

224061201

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

14

RH Front Fender Kit

705000485

Unavailable

RH FRONT FENDER, BLACK - Call your local BRP dealership | DS 650 X

705000360

Unavailable

15

LH Front Fender Kit | Includes 15 - 17.

703500160

Unavailable

LH Front Fender Kit

705000361

Unavailable

16

WARNING DECAL, DEATH AND INJURIES - Call your local BRP dealership

704901878

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

18

RH Fender Support

705000150

Unavailable

LH Fender Support

705000151

Unavailable

19

RH FRONT MUDGUARD - Call your local BRP dealership

705000095

Unavailable

LH FRONT MUDGUARD - Call your local BRP dealership

705000096

Unavailable

20

Dart

414939500

Unavailable

21

Hex. Flange Screw M8 X 35

207683544

Unavailable

22

Rear Fender Kit | Includes 22 - 23.

703500159

Unavailable

Rear Fender Kit | DS 650 X / Includes 11 to 13

703500125

Unavailable

23

Warning Decal, Tire And Passenger

704900040

Unavailable

24

Hex. Screw M6 X 18

207161844

Unavailable

25

Phillips Screw M6 X 20, Scotch Grip

250000043

Unavailable

26

BUSHING - Call your local BRP dealership

506117300

Unavailable

27

JACK NUT M6 - Call your local BRP dealership

732610057

Unavailable

28

FASCIA BRACKET, BLACK - Call your local BRP dealership

705000146

Unavailable

29

Hex. Flange Screw M6 X 16

207661644

Unavailable

30

Front Fascia

705000363

Unavailable

Front Fascia | DS 650.

705000611

Unavailable

31

Rear Bumper

705000143

Unavailable

32

Hex. Flange Screw M8 X 20

207682044

Unavailable

33

Tank Cover Kit

705000276

Unavailable

Tank Cover Kit | DS 650 / Includes 44 to 48

703500265

Unavailable

34

Warning Decal, Under 16 Years Old

704900011

Unavailable

35

WARNING DECAL, PERFORMANCE - Call your local BRP dealership

704900089

Unavailable

36

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

38

Hex. Screw M6 X 30

207063044

Unavailable

39

SPACER - Call your local BRP dealership

705000114

Unavailable

40

Hex. Flange Screw M8 x 60

207686044

Unavailable

41

Bushing

293900112

Unavailable

42

Protective Plate

705000303

Unavailable

43

Skid Plate

705000488

Unavailable

Skid Plate | DS 650

705000304

Unavailable

44

Hex. Flange Screw M6 X 20

207662044

Unavailable

45

TOOL KIT - Call your local BRP dealership

529035782

Unavailable

46

STRAP - Call your local BRP dealership

708200008

Unavailable

47

Hex. Flange Screw M6 X 20

207662044

Unavailable

48

RH HEADLAMP SUPPORT - Call your local BRP dealership | DS 650 X

705000397

Unavailable

LH Headlamp Support | DS 650 X

705000398

Unavailable

49

RH HEADLAMP PROTECTOR - Call your local BRP dealership | DS 650 X

705000399

Unavailable

LH HEADLAMP PROTECTOR - Call your local BRP dealership | DS 650 X

705000400

Unavailable

50

Pop Rivet 3/16" | DS 650 X

390402000

Unavailable

51

SOCKET HEAD SCREW M5 X 20 - Call your local BRP dealership | DS 650 X

205452046

Unavailable

52

Hex. Flange Elastic Nut M5

233251414

Unavailable

53

Washer | DS 650 X

391301600

Unavailable

54

Grommet

414036300

Unavailable

55

Socket Head Screw M8 X 20 | DS 650 X

205482060

Unavailable
