06- Hydraulic Brake

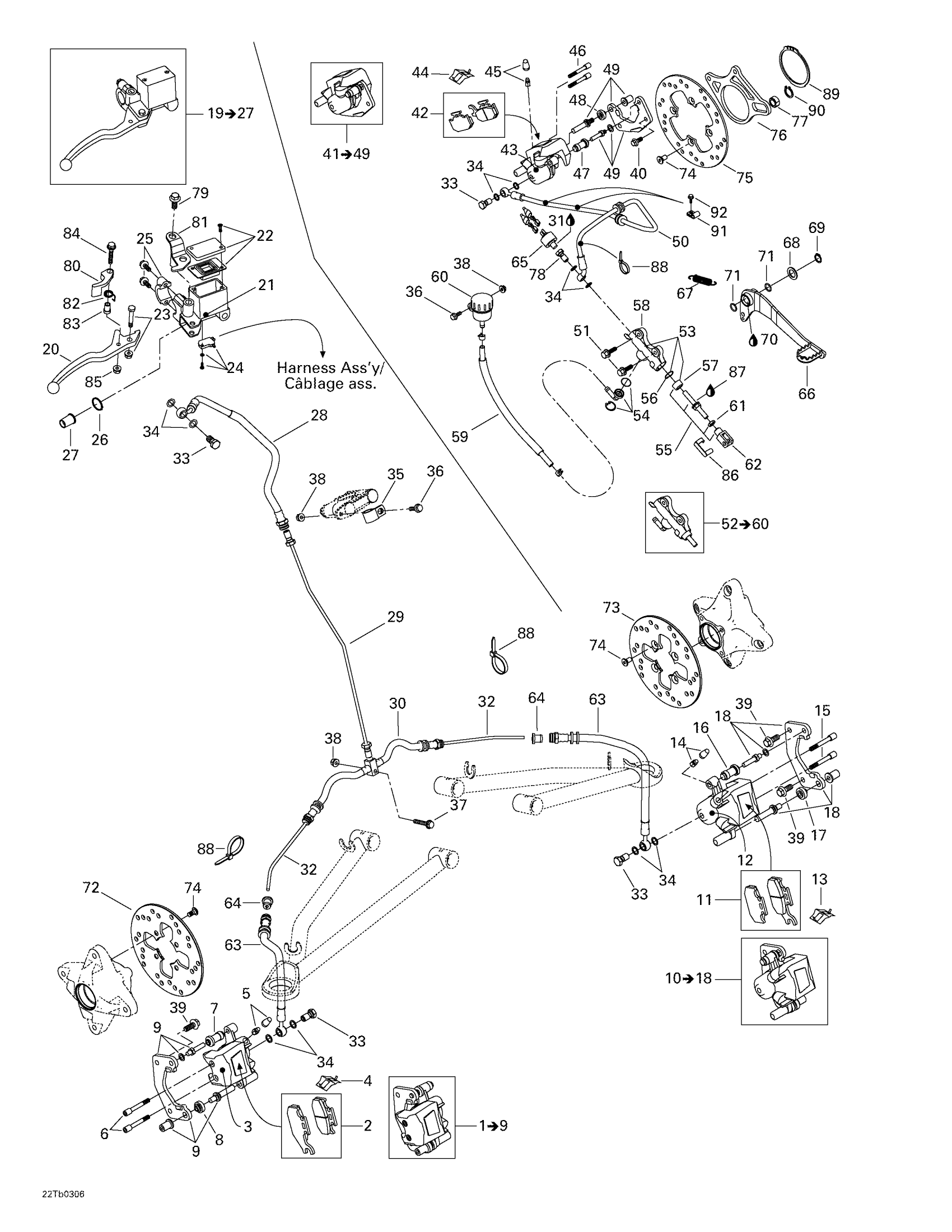

Can-Am DS 650, 2003 06- Hydraulic Brake Diagram
#
1
RH CALIPER - Call your local BRP dealership | Includes 1 To 9
705600043
Unavailable
2
Brake Pad Kit
705600004
Unavailable
3
Piston Set
705600078
Unavailable
4
Spring
705600079
Unavailable
5
Bleeding Screw
705600080
Unavailable
6
Pin Set (2)
705600081
Unavailable
7
Compression Boot
705600082
Unavailable
8
Compression Boot
705600083
Unavailable
9
RH BRAKE SUPPORT - Call your local BRP dealership
705600062
Unavailable
10
LH CALIPER - Call your local BRP dealership | Includes 10 To 18
705600044
Unavailable
11
Brake Pad Kit
705600014
Unavailable
12
Piston Set
705600078
Unavailable
13
Spring
705600079
Unavailable
14
Bleeding Screw
705600080
Unavailable
15
Pin Set (2)
705600081
Unavailable
16
Compression Boot
705600082
Unavailable
17
Compression Boot
705600083
Unavailable
18
LH BRAKE SUPPORT - Call your local BRP dealership
705600061
Unavailable
19
MASTER CYLINDER - Call your local BRP dealership | Includes 19 To 27
705600045
Unavailable
20
ARM LEVER - Call your local BRP dealership
705600057
Unavailable
21
Piston Kit
705600058
Unavailable
22
Cap Set
705600084
Unavailable
23
BOLT KIT - Call your local BRP dealership
705600085
Unavailable
24
SWITCH KIT - Call your local BRP dealership
705600086
Unavailable
25
BRACKET KIT - Call your local BRP dealership
705600087
Unavailable
26
CIRCLIP - Call your local BRP dealership
705600088
Unavailable
27
COMPRESSION BOOT - Call your local BRP dealership
705600089
Unavailable
28
Brake Handle Hose
705600227
Unavailable
29
Vertical Hose
705600047
Unavailable
30
Flexible Hose
705600048
Unavailable
31
Was 293800013 Loctite 56765
219704454
Unavailable
32
Horizontal Tube
705600070
Unavailable
33
Banjo Bolt (M10 x 1.25 thread)
705600609
Unavailable
34
Washer
414920600
Unavailable
35
Hose Retainer 13 mm
705600232
Unavailable
36
Hex. Flange Screw M6 X 20
207662044
Unavailable
37
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
38
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
39
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
40
Hex. Flange Screw M8 X 12, Scotch Grip
207581244
Unavailable
41
Rear Caliper | Includes 39 To 47
705600599
Unavailable
42
Brake Pad Kit
705600014
Unavailable
43
Piston Set
705600078
Unavailable
44
Spring
705600079
Unavailable
45
Bleeding Screw
705600080
Unavailable
46
Pin Set (2)
705600081
Unavailable
47
Compression Boot
705600082
Unavailable
48
Compression Boot
705600083
Unavailable
49
BRAKE SUPPORT ASS'Y - Call your local BRP dealership
705600017
Unavailable
50
Rear Flexible Hose
705600229
Unavailable
51
Hex. Flange Screw M8 X 16, Scotch Grip
207581646
Unavailable
52
Master Cylinder Ass'y | Includes 51 To 59
705600300
Unavailable
53
Piston Set
705600063
Unavailable
54
PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership
705600064
Unavailable
55
ROD ASSY - Call your local BRP dealership | Includes 54 To 57
705600301
Unavailable
56
Circlip
705600068
Unavailable
57
Compression Boot
705600090
Unavailable
58
Master Cylinder
705600117
Unavailable
59
HOSE ASS'Y - Call your local BRP dealership
705600190
Unavailable
60
Oil Tank, Brake Fluid Reservoir
705600182
Unavailable
61
Hex. Jam Nut M8
232180600
Unavailable
62
Yoke
705600100
Unavailable
63
Brake Hose
705600071
Unavailable
64
Grommet
293720046
Unavailable
65
Interrupteur *Brake Switch
710001345
Unavailable
66
Brake Pedal
705600094
Unavailable
67
BREAK PEDAL SPRING - Call your local BRP dealership
705600098
Unavailable
68
WASHER - Call your local BRP dealership
503107800
Unavailable
69
CIRCLIP - Call your local BRP dealership
293370012
Unavailable
70
Synthetic Grease, 400 G
293550010
Unavailable
71
O-RING - Call your local BRP dealership
293300053
Unavailable
72
RH BRAKE DISC - Call your local BRP dealership
705600042
Unavailable
73
LH BRAKE DISC - Call your local BRP dealership
705600093
Unavailable
74
Torx Screw M8 X 16, Scotch Grip
235381646
Unavailable
75
Brake Disc
705500059
Unavailable
76
Caliper Support
705500066
Unavailable
77
Caliper Guide
705500068
Unavailable
78
BANJO BOLT - Call your local BRP dealership
705600092
Unavailable
79
HEX. SCREW M10 X 16 - Call your local BRP dealership
250000029
Unavailable
80
LEVER ARM - Call your local BRP dealership
705600095
Unavailable
81
Lever Stopper
705600096
Unavailable
82
SPRING - Call your local BRP dealership
705600055
Unavailable
83
SNAP RING - Call your local BRP dealership
705600097
Unavailable
84
HEX. SCREW M6 X 40 - Call your local BRP dealership
210264080
Unavailable
85
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
86
Pin Kit
219702305
Unavailable
87
Not Available As Spare Part - Friction Washer
Unavailable
88
Tie-Rap 180 mm
414115200
Unavailable
89
CIRCLIP - Call your local BRP dealership
293370014
Unavailable
90
CIRCLIP - Call your local BRP dealership
293370015
Unavailable
91
CLIP - Call your local BRP dealership
414351600
Unavailable
92
Hex. Flange Screw M6 X 16
210261650
Unavailable
