Description

Price

1

Painted Frame

705200185

Unavailable

2

RH Footrest

705200313

Unavailable

LH Footrest

705200315

Unavailable

3

Frame Extension | 7449.

705200359

Unavailable

4

Box Support

705200189

Unavailable

5

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

Unavailable

6

Hex. Flange Screw M10 X 50, Scotch Grip

207505046

Unavailable

7

Hex. Flange Elastic Nut M10

233201436

Unavailable

8

Hex. Flange Screw M6 X 16

207661644

Unavailable

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

10

Hex. Flange Screw M8 X 75

207687544

Unavailable

11

Hex. Flange Elastic Nut M8

233281414

Unavailable

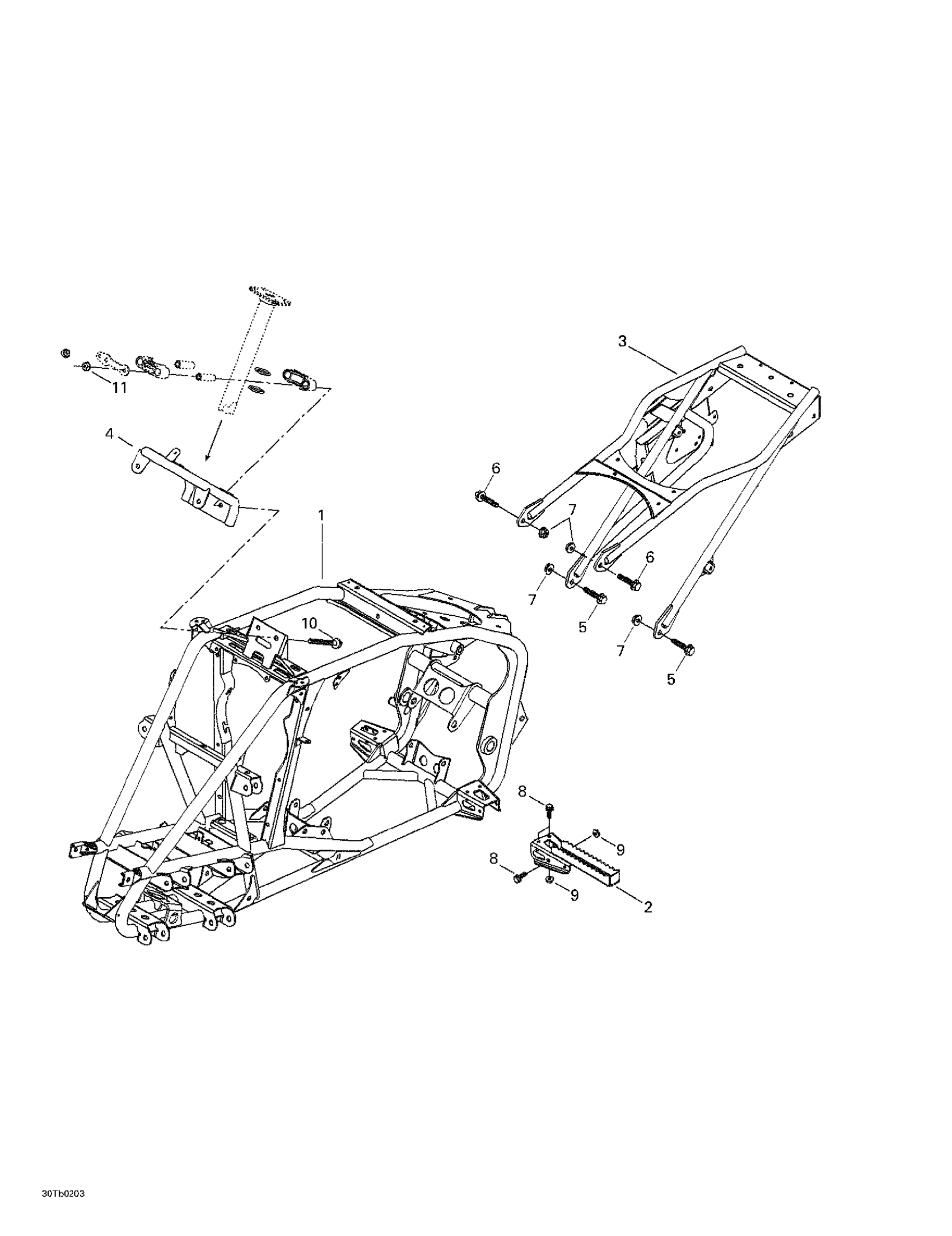

Can-Am DS 650, 2002 09- Frame Diagram

Painted Frame

RH Footrest

LH Footrest

Frame Extension | 7449.

Box Support

Hex. Flange Screw M10 X 30, Scotch Grip

Hex. Flange Screw M10 X 50, Scotch Grip

Hex. Flange Elastic Nut M10

Hex. Flange Screw M6 X 16

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw M8 X 75

Hex. Flange Elastic Nut M8
