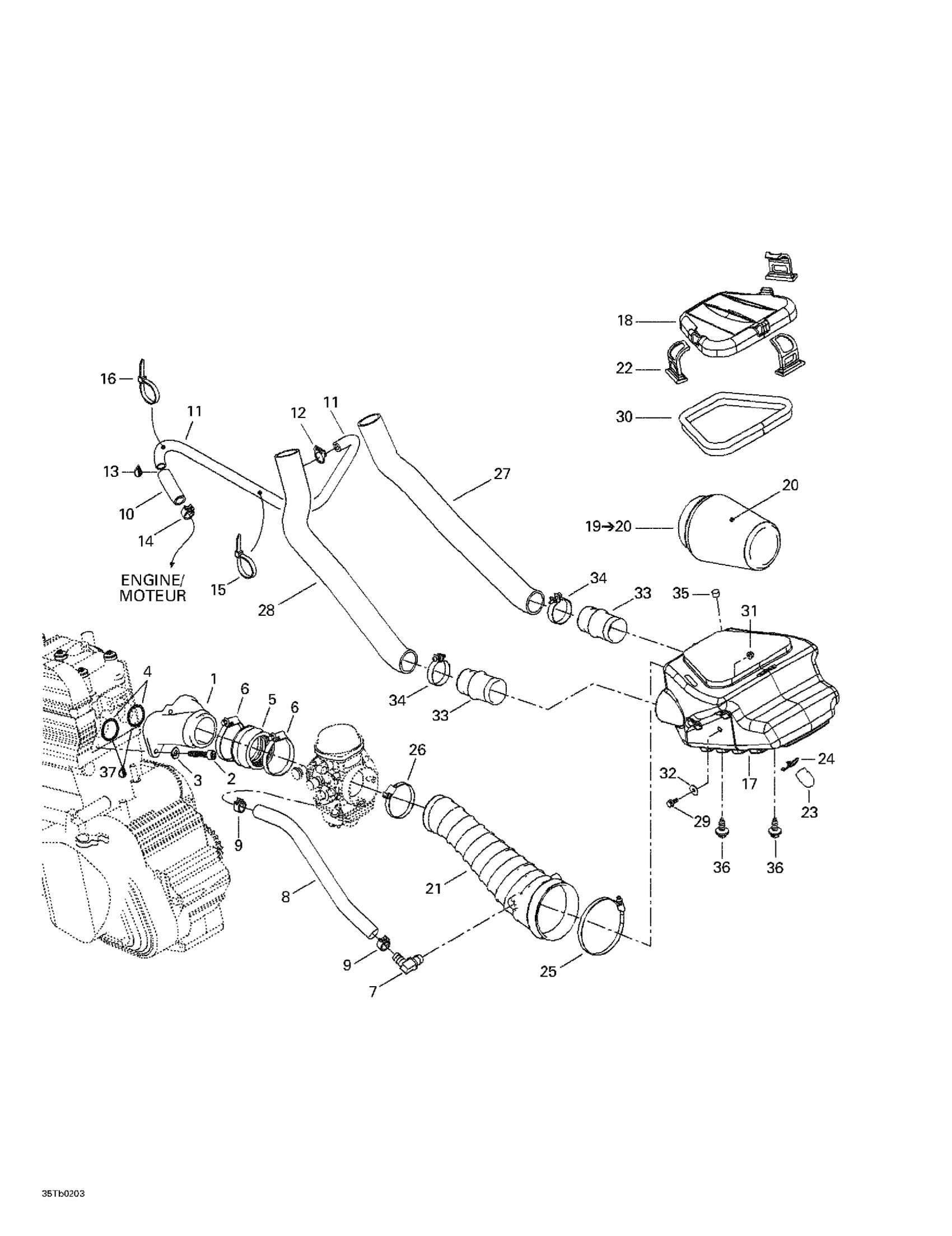

Can-Am DS 650, 2002 02- Air Intake System Diagram
#
1
Intake Adaptor
711267230
Unavailable
2
Socket Head Screw M6 X 25
205062544
Unavailable
3
Flat Washer 6 mm
234061410
Unavailable
4
O-Ring
293300059
Unavailable
5
Carburator Flange 52 mm
420267240
Unavailable
6
Norma Gear Clamp
293650090
Unavailable
7
Elbow Fitting
414523600
Unavailable
8
OIL LINE - Call your local BRP dealership
414644800
Unavailable
9
Spring Clamp
414655700
Unavailable
10
HOSE 5/16 - Call your local BRP dealership
204560396
Unavailable
11
Was 276000001 Hose 12.5 mm
219704394
Unavailable
12
HOSE CLAMP - Call your local BRP dealership
293650119
Unavailable
13
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
Unavailable
14
Crimp Clamp, 15.3-706R
293650047
Unavailable
15
Tie-Rap 180 mm
414115200
Unavailable
16
Tie Wrap 368 mm
293750008
Unavailable
17
Air Silencer
707800021
Unavailable
18
Air Silencer Cover
707800022
Unavailable
19
Air Filter | Includes 3 To 4
707800023
Unavailable
20
Foam
707800074
Unavailable
21
Intake Adaptor
707800142
Unavailable
22
COVER LATCH - Call your local BRP dealership
708200003
Unavailable
23
Drain Tube
707800080
Unavailable
24
RETAINER CLIP - Call your local BRP dealership
707800081
Unavailable
25
Norma Gear Clamp
514052983
Unavailable
26
Norma Gear Clamp
293650118
Unavailable
27
Vent Hose
707800093
Unavailable
28
Vent Hose
707800094
Unavailable
29
Hex. Flange Screw M6 X 20
207662044
Unavailable
30
Neoprene Seal 3000Mm Long
219704371
Unavailable
31
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
32
Flat Washer
224060201
Unavailable
33
DEFLECTOR - Call your local BRP dealership
707800038
Unavailable
34
GEMI CLAMP - Call your local BRP dealership
293650160
Unavailable
35
Cap
572051500
Unavailable
36
Mount Dart
293730040
Unavailable
37
Grease, Super Lube
293550030
Unavailable
