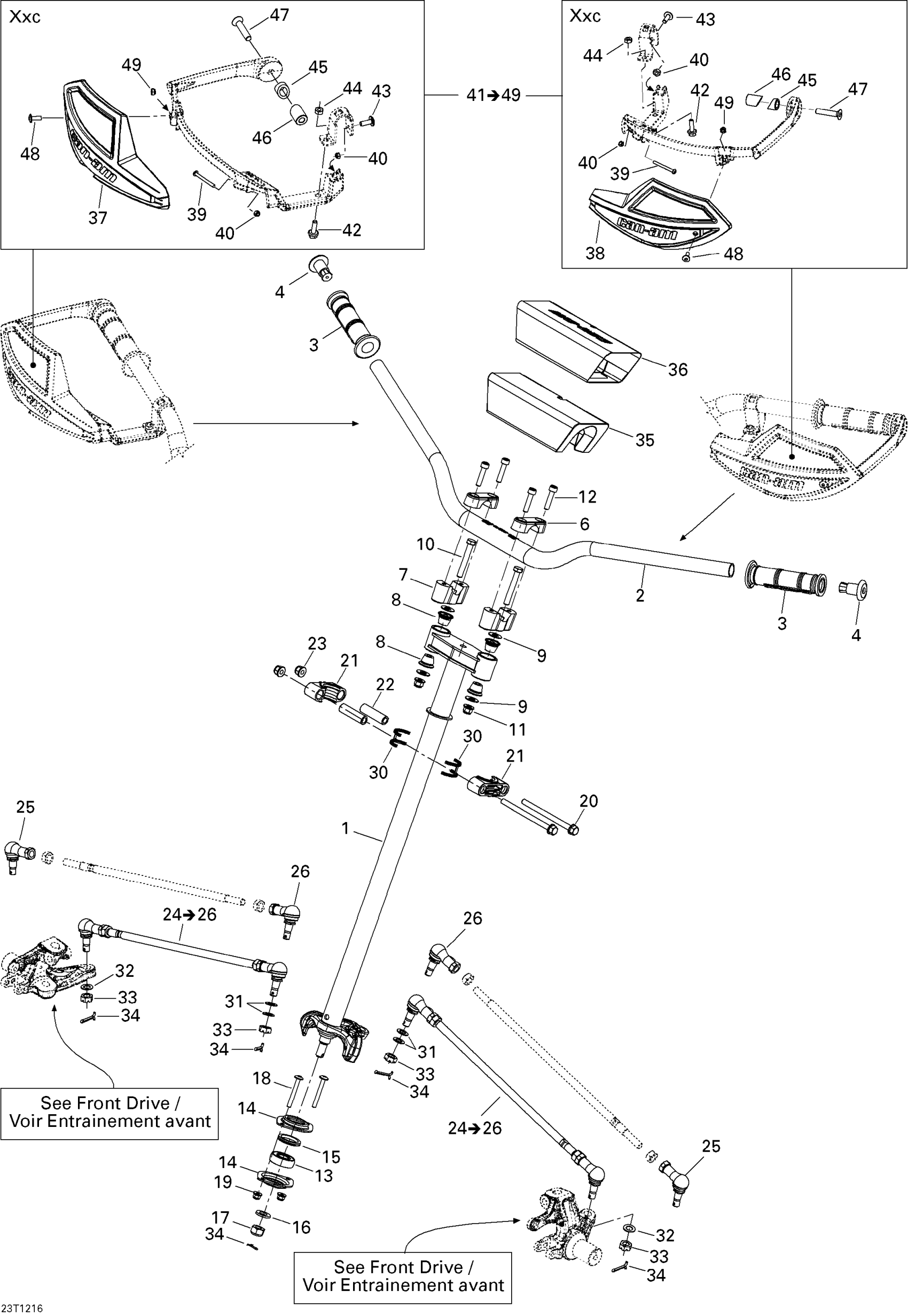

Can-Am DS 450EFI Xxc & Xmx, 2012 Steering Diagram

#

Description
Price

1

PAINT COLUMN - Call your local BRP dealership

709401645

Unavailable

2

HANDLE BAR ALUMINUM - Call your local BRP dealership

709400668

Unavailable

3

Handle Grip

709400493

$13.82

4

END PIECE - Call your local BRP dealership

709400627

Unavailable

6

Support

709400496

$23.10

7

ALUMINUM SUPPORT - Call your local BRP dealership

709400592

Unavailable

8

DAMPER BUSHING - Call your local BRP dealership

293830131

Unavailable

9

Washer

506152194

$4.28

10

Screw Hex. M10 X 70

250001024

$1.74

11

Elastic Flange Nut M10

232501416

$1.25

12

Socket Head Screw

205083534

$2.00

13

Ball Bearing

709400439

$17.88

14

THRUST WASHER - Call your local BRP dealership

709400468

Unavailable

15

Seal

293250177

$6.49

16

Flat Washer

234021430

$2.00

17

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

250100090

Unavailable

18

Torx Screw M6 X 50

250000317

$2.00

19

Flange Elastic Nut M6

233261434

$3.61

20

Hex. Flange Screw M8 X 110

230681034

$4.15

21

Half Bushing

709400471

$13.22

22

BUSHING - Call your local BRP dealership

709400072

Unavailable

23

Hex. Flange Elastic Nut M8

233281434

$1.74

24

ROD_TIE ASSY - Call your local BRP dealership

709400352

Unavailable

24

TIE ROD ASS'Y - Call your local BRP dealership | Includes 25 to 27, Xmx

709400673

Unavailable

25

BALL JOINT - Call your local BRP dealership

715900053

Unavailable

26

BALL JOINT - Call your local BRP dealership

715900052

Unavailable

30

HALF-SEAL - Call your local BRP dealership

293300120

Unavailable

31

Washer

503183800

$3.10

32

Washer

503183800

$3.10

33

CASTLE NUT - Call your local BRP dealership

250100094

Unavailable

34

Cotter Pin

250400034

$2.00

35

Foam

709400422

$15.64

36

Cover

709400423

$30.57

37

RH AIR DEFLECTOR - Call your local BRP dealership

709400530

Unavailable

38

LH AIR DEFLECTOR - Call your local BRP dealership

709400531

Unavailable

39

Socket Head Screw M4 X 40 | X

205444086

$1.42

40

Elastic Stop Nut M4

232541414

$0.48

41

Air Deflector Support Kit | X

715001378

$138.49

42

Hex. Flange Screw M6 X 20

207662044

$1.66

43

Torx Screw M6 X 16

250000223

$1.74

44

Hex. Elastic Stop Nut M6

232561600

$0.92

45

Small Bracket | DS 650 X

709400161

$17.88

46

Large Bracket | DS 650 X

709400162

$17.13

47

Socket Head Screw | X

205384034

$5.19

48

Torx Screw M5 X 14

250000742

$1.20

49

Hex. Elastic Nut M5 | X

232551600

$0.91
