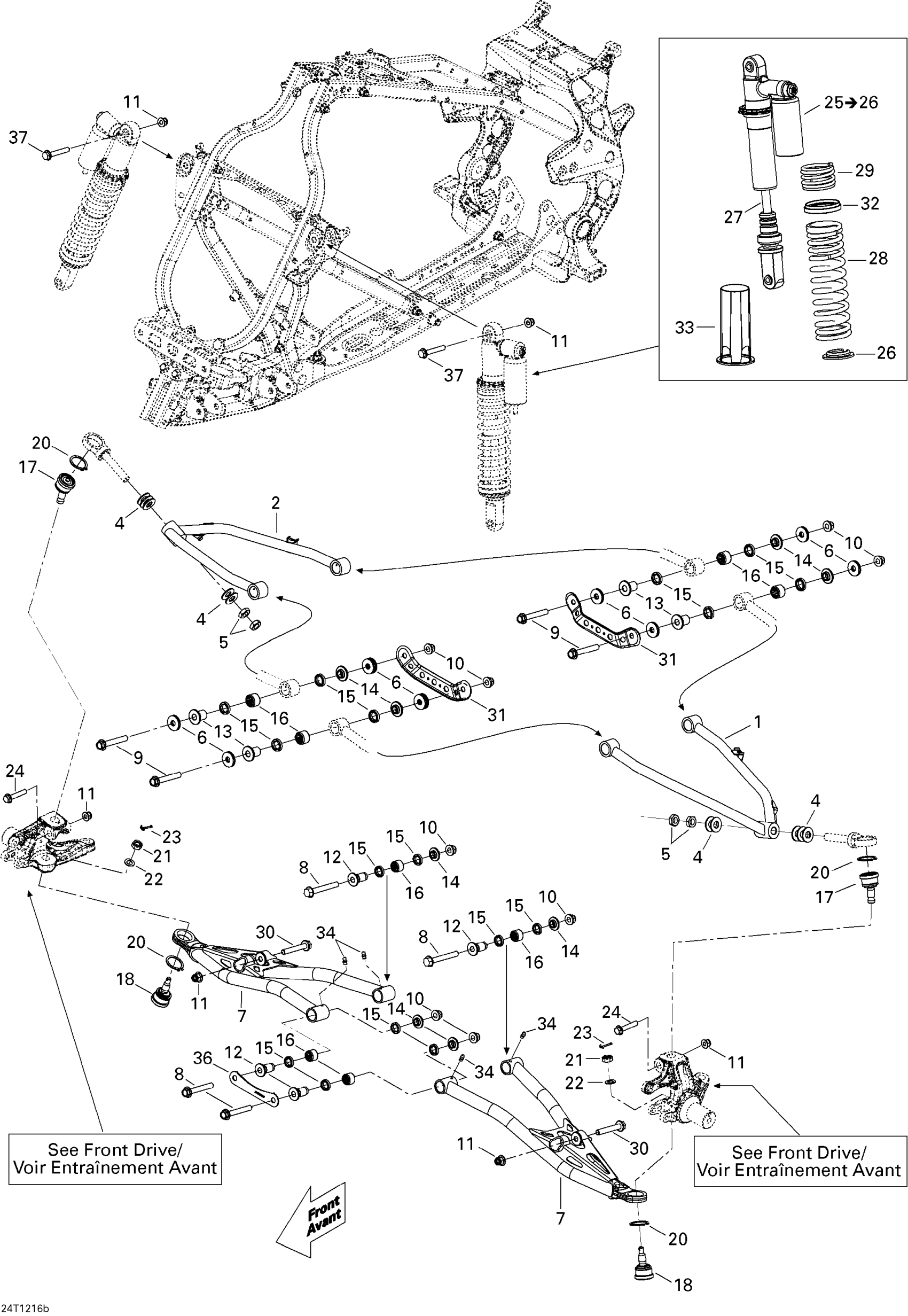

Can-Am DS 450EFI Xxc & Xmx, 2012 Front Suspension Xmx Diagram

#

Description
Price

1

LH UPPER ARM - Call your local BRP dealership

706201128

Unavailable

2

RH UPPER ARM - Call your local BRP dealership

706201134

Unavailable

4

FLAT WASHER - Call your local BRP dealership

250200079

Unavailable

5

Hex. Jam Nut M14

232170411

$1.25

6

Flat Washer M10 | 4X4

250200014

$1.17

7

LOWER ARM - Call your local BRP dealership

706201398

Unavailable

8

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207607036

Unavailable

9

Hex. Flange Screw M10 X 75

207607546

$6.69

10

Hex. Flange Elastic Nut M10

233201436

$1.74

11

Hex. Flange Elastic Nut M10

233201434

$1.63

12

INNER BUSHING - Call your local BRP dealership

706200890

Unavailable

13

Inner Bushing

706200888

$15.64

14

INNER BUSHING - Call your local BRP dealership

706200889

Unavailable

15

SEAL - Call your local BRP dealership

293200120

Unavailable

16

Needle Bearing

293350064

$21.61

17

UPPER BALL JOINT - Call your local BRP dealership

706200462

Unavailable

18

LOWER BALL JOINT - Call your local BRP dealership

706200461

Unavailable

20

Circlip 32 mm

293370009

$1.33

21

CASTLE NUT - Call your local BRP dealership

250100094

Unavailable

22

Flat Washer 10 mm

234001410

$0.98

23

Cotter Pin

250400035

$2.00

24

Hex. Flange Screw

207605534

$2.00

25

RH FRONT SHOCK - Call your local BRP dealership | Includes 25 to 26

706201591

Unavailable

25

LH FRONT SHOCK - Call your local BRP dealership

706201592

Unavailable

26

Spring Stopper

706000567

$14.40

27

Front Piston And Rod Kit | Includes 25d to 25f

715500330

Unavailable

28

Black-Yellow Spring

706200833

Unavailable

29

Black-Yellow Spring

706200876

Unavailable

30

Hex. Flange Screw

207605534

$2.00

31

FRONT SUSPENSION UPPER PLATE - Call your local BRP dealership

706200532

Unavailable

32

Spring Spacer

503191281

$7.43

33

ROD PROTECTOR - Call your local BRP dealership

706201286

Unavailable

34

Grease Fitting

250000315

$4.82

36

Front Suspension Lower Plate

706200722

Unavailable

37

HEX. FLANGED SCREW M10 X 65 - Call your local BRP dealership

207606534

Unavailable
