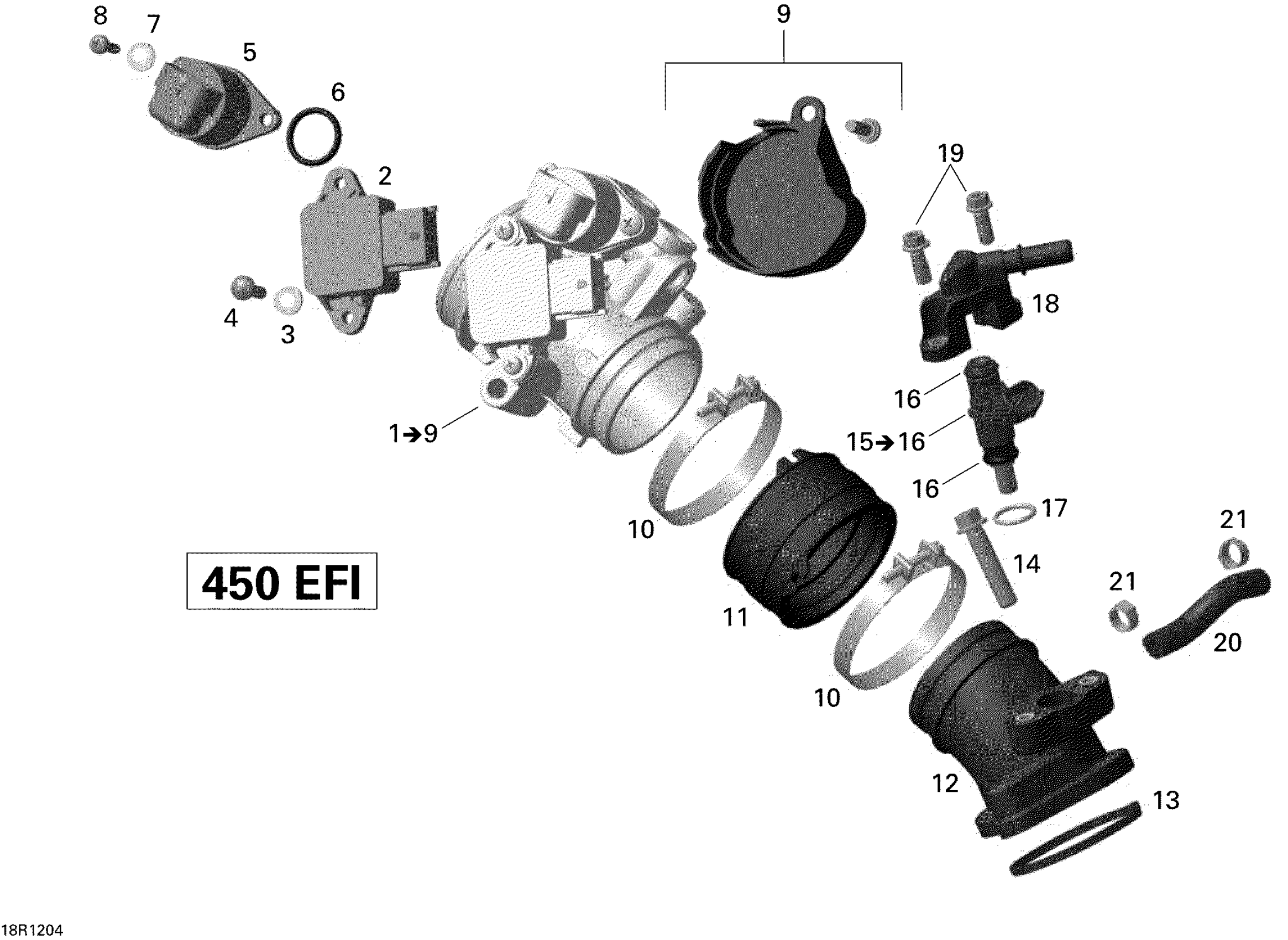

Can-Am DS 450EFI Xxc & Xmx, 2012 Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

THROTTLE BODY ASS'Y - Call your local BRP dealership | Includes 1 to 9

420296874

Unavailable

2

Position Sensor

420866120

$98.99

3

Flat Washer 4 mm, Stainless

234042600

$1.15

4

Phillips Screw M4 X 16

208641660

$0.90

5

Idle Air Control Valve

420665941

$179.99

6

O-Ring

420631780

$4.44

7

Snap Ring

420845710

$4.12

8

Binding Head Screw M5 X 16

420440911

$14.28

9

Cover Kit

420281540

$20.99

10

Clamp

420251480

$14.28

11

Intake Adaptor

420267480

$15.89

12

Elbow Intake Adaptor

420267510

$43.49

13

GASKET - Call your local BRP dealership

420431230

Unavailable

14

Torx Flange Screw M8 X 35

420641188

$7.41

15

Injection Valve

420874402

$185.49

16

O-Ring

420631220

$14.28

17

O-Ring

420631296

$0.76

18

Fuel Rail

420874901

$24.49

19

Torx Flange Screw M6 X 16

420641048

$2.96

20

HOSE 88 MM, MAPS SENSOR - Call your local BRP dealership

420260420

Unavailable

21

Gear Clamp

420851468

$5.97
