- DS 450EFI Xxc & Xmx, 2012
01- Engine Lubrication

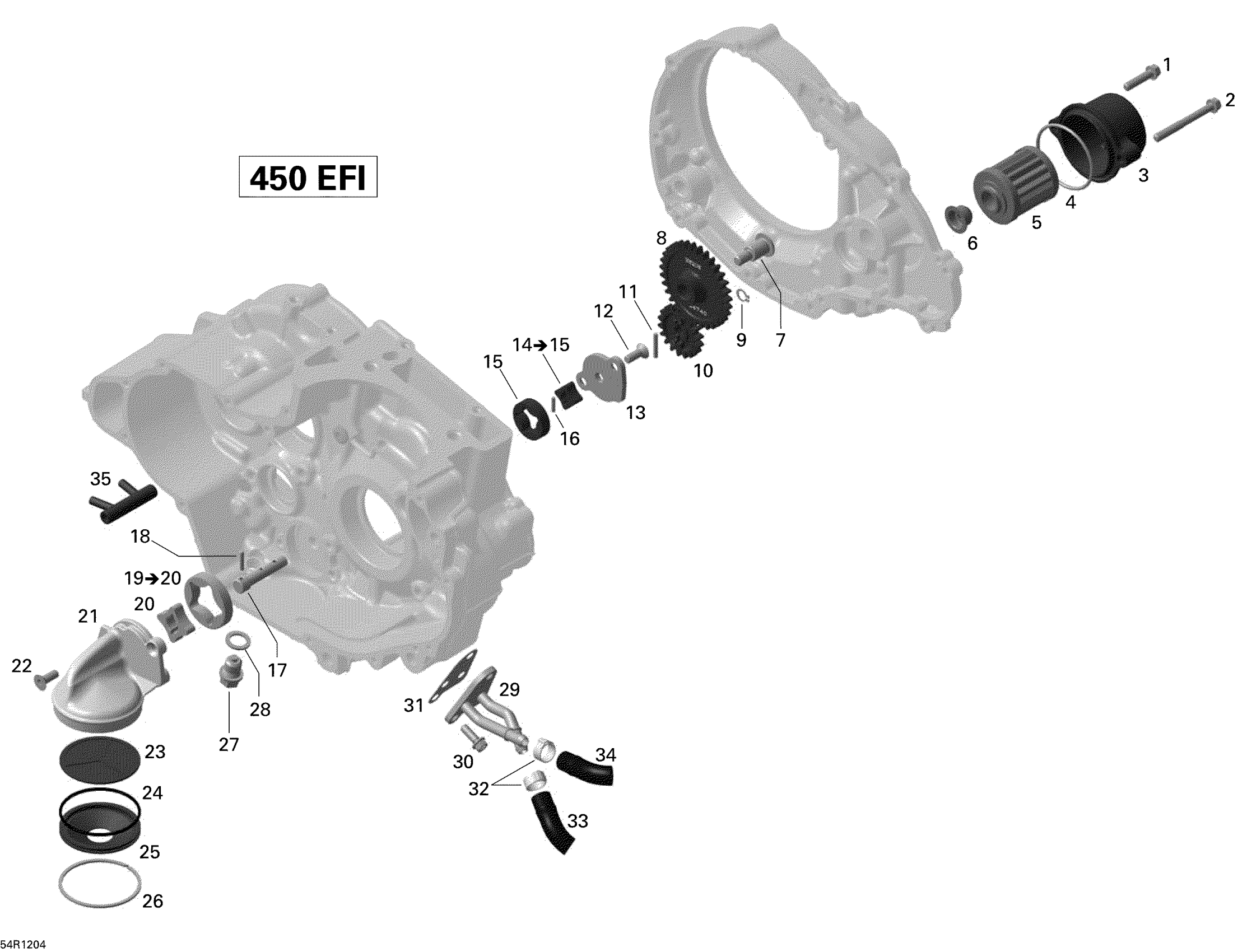

Can-Am DS 450EFI Xxc & Xmx, 2012 01- Engine Lubrication Diagram
#
1
Torx Flange Screw M6 X 25
420641238
Unavailable
2
Torx Flange Screw M6 X 55
420440702
Unavailable
3
OIL FILTER COVER - Call your local BRP dealership
420211509
Unavailable
4
O-Ring
420430920
Unavailable
5
Oil Filter
420256455
Unavailable
6
SLEEVE - Call your local BRP dealership
420647100
Unavailable
7
BEARING BOLT M8 - Call your local BRP dealership
420241150
Unavailable
8
Idle Gear, 31 Teeth
420434740
Unavailable
9
Retaining Ring
420245570
Unavailable
10
Oil Pump Gear, 18 Teeth
420434730
Unavailable
11
Needle Pin
420932840
Unavailable
12
Countersunk Screw M6 X 16
420440906
Unavailable
13
Oil Pump Cover
420611791
Unavailable
14
Inner And Outer Rotor Ass'y | Includes 14 to 15
420256477
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
NEEDLE PIN - Call your local BRP dealership
420832560
Unavailable
17
OIL PUMP SHAFT - Call your local BRP dealership
420620810
Unavailable
18
NEEDLE PIN - Call your local BRP dealership
420232980
Unavailable
19
Inner And Outer Rotor Ass'y | Includes 19 to 20
420256117
Unavailable
20
Not Available As Spare Part - Friction Washer
Unavailable
21
Oil Sieve Cover
420610740
Unavailable
22
Screw M6 X 20
420941436
Unavailable
23
OIL SIEVE - Call your local BRP dealership
420256570
Unavailable
24
O-Ring
420650697
Unavailable
25
Oil Collector
420256650
Unavailable
26
SNAP RING - Call your local BRP dealership
420845590
Unavailable
27
Magnetic Drain Plug M12
420241787
Unavailable
28
Copper Washer
420250640
Unavailable
29
Connection Cover
420656460
Unavailable
30
Torx Flange Screw M6 X 20
420440207
Unavailable
31
Gasket
420431120
Unavailable
32
Clamp
420851458
Unavailable
33
Oil Hose
420460791
Unavailable
34
OIL HOSE - Call your local BRP dealership
420460792
Unavailable
35
OIL TUBE - Call your local BRP dealership
420656300
Unavailable
