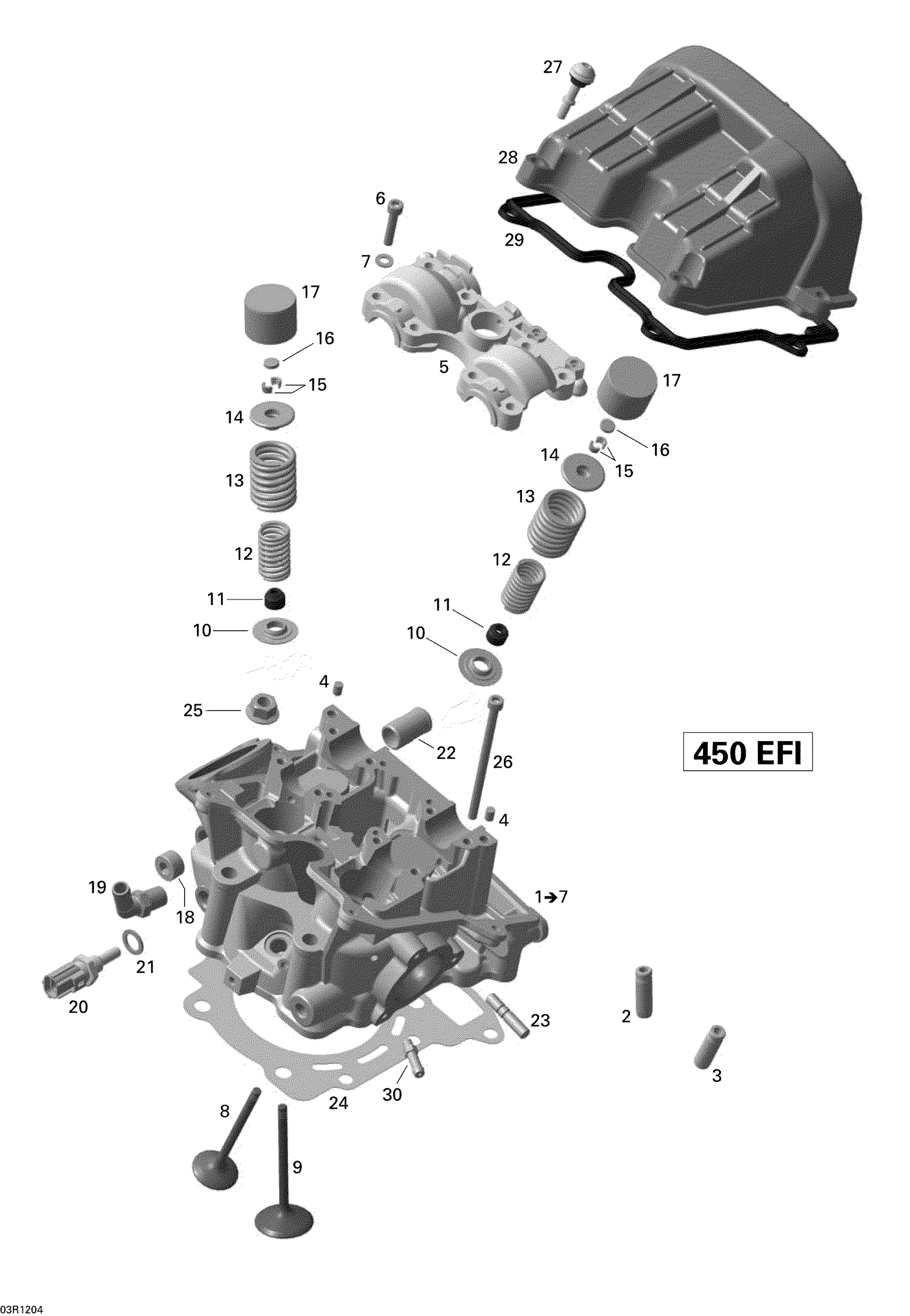

Can-Am DS 450EFI Xxc & Xmx, 2012 01- Cylinder Head Diagram

#

Description
Price

1

Cylinder Head Ass'y | Includes 1 to 7

420623470

Unavailable

2

VALVE GUIDE, EXHAUST - Call your local BRP dealership

420253926

Unavailable

3

VALVE GUIDE, INTAKE - Call your local BRP dealership

420253921

Unavailable

4

Center Pin

420232210

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Socket Head Screw M6 X 30

205063044

Unavailable

7

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

8

Exhaust Valve 31 mm

420254027

Unavailable

9

Intake Valve, 38 mm

420254295

Unavailable

10

Valve Spring Shim

420253967

Unavailable

11

Seal

420230510

Unavailable

12

Valve Spring, Inner

420238201

Unavailable

13

VALVE SPRING, OUTER - Call your local BRP dealership

420238211

Unavailable

14

Valve Spring Retainer

420253957

Unavailable

15

Valve Cotter

420253645

Unavailable

16

SHIM 2.3 - Call your local BRP dealership

420253974

Unavailable

16

Shim 2.35

420253975

Unavailable

16

SHIM 2.4 - Call your local BRP dealership

420253976

Unavailable

16

SHIM 2.45 - Call your local BRP dealership

420253977

Unavailable

16

SHIM 2.5 - Call your local BRP dealership

420253978

Unavailable

16

SHIM 2.55 - Call your local BRP dealership

420253979

Unavailable

16

SHIM 2.6 - Call your local BRP dealership

420253980

Unavailable

16

SHIM 2.65 - Call your local BRP dealership

420253981

Unavailable

16

SHIM 2.7 - Call your local BRP dealership

420253982

Unavailable

16

SHIM 2.75 - Call your local BRP dealership

420253983

Unavailable

16

SHIM 2.8 - Call your local BRP dealership

420253984

Unavailable

16

SHIM 2.85 - Call your local BRP dealership

420253985

Unavailable

16

SHIM 2.9 - Call your local BRP dealership

420253986

Unavailable

16

SHIM 2.95 - Call your local BRP dealership

420253987

Unavailable

16

SHIM 3.0 - Call your local BRP dealership

420253988

Unavailable

16

SHIM 3.05 - Call your local BRP dealership

420253989

Unavailable

17

Tappet Valve

420253990

Unavailable

18

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

Unavailable

19

Angular Tube

420922242

Unavailable

20

Temperature Sensor

420274040

Unavailable

21

Copper Washer

420250640

Unavailable

22

Elbow Fitting

420224090

Unavailable

23

STUB M8 X 16/20 - Call your local BRP dealership

420241560

Unavailable

24

Cylinder Head Gasket

420650210

Unavailable

25

Hex. Flange Nut M10

233101414

Unavailable

26

Socket Head Screw M6 X 100

420241601

Unavailable

27

VALVE COVER - Call your local BRP dealership

420211662

Unavailable

28

Distance Screw

420241625

Unavailable

29

Valve Cover Gasket

420650345

Unavailable

30

HOSE NIPPLE - Call your local BRP dealership

420924722

Unavailable
