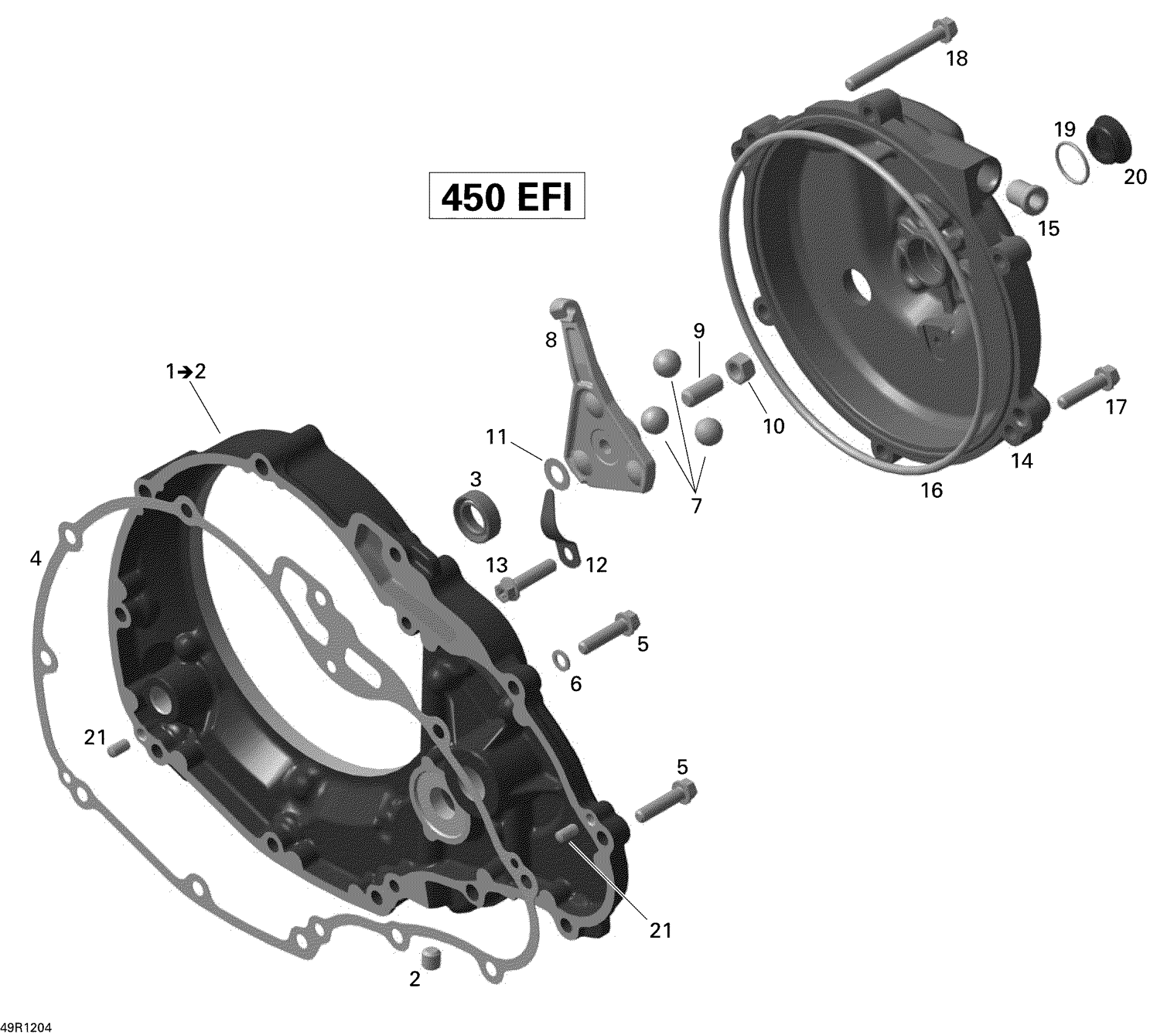

Can-Am DS 450EFI Xxc & Xmx, 2012 Clutch Cover Diagram

#

Description
Price

1

Clutch Cover | Includes 1 to 2

420611666

$207.66

2

Plug Screw

420941611

$11.98

3

Oil Seal

420250455

$15.22

4

Gasket

420430995

$27.66

5

Torx Flange Screw M6 X 25

420641238

$2.68

6

Seal Washer

420230415

$1.77

7

Ball 12 mm

420232150

$5.52

8

Clutch Release Cam

420259325

$32.28

9

Adjustment Screw M8 X 19.5

420240310

$11.98

10

Hex. Nut M8

420942674

$5.02

11

Thrust Washer

420227945

$3.86

12

SPRING - Call your local BRP dealership

420239907

Unavailable

13

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

14

Clutch Release Cover

420210966

$87.66

15

Thread Sleeve M8

420629010

$16.12

16

Gasket

420431432

$25.35

17

Torx Flange Screw M6 X 25

420641238

$2.68

18

Torx Flange Screw M6 X 55

420440702

$2.54

19

O-Ring

420250890

$2.50

20

PLUG SCREW M18 - Call your local BRP dealership

420241800

Unavailable

21

Drive Pin 5 X 10

420929650

$1.34
