10- Main Harness Front Section

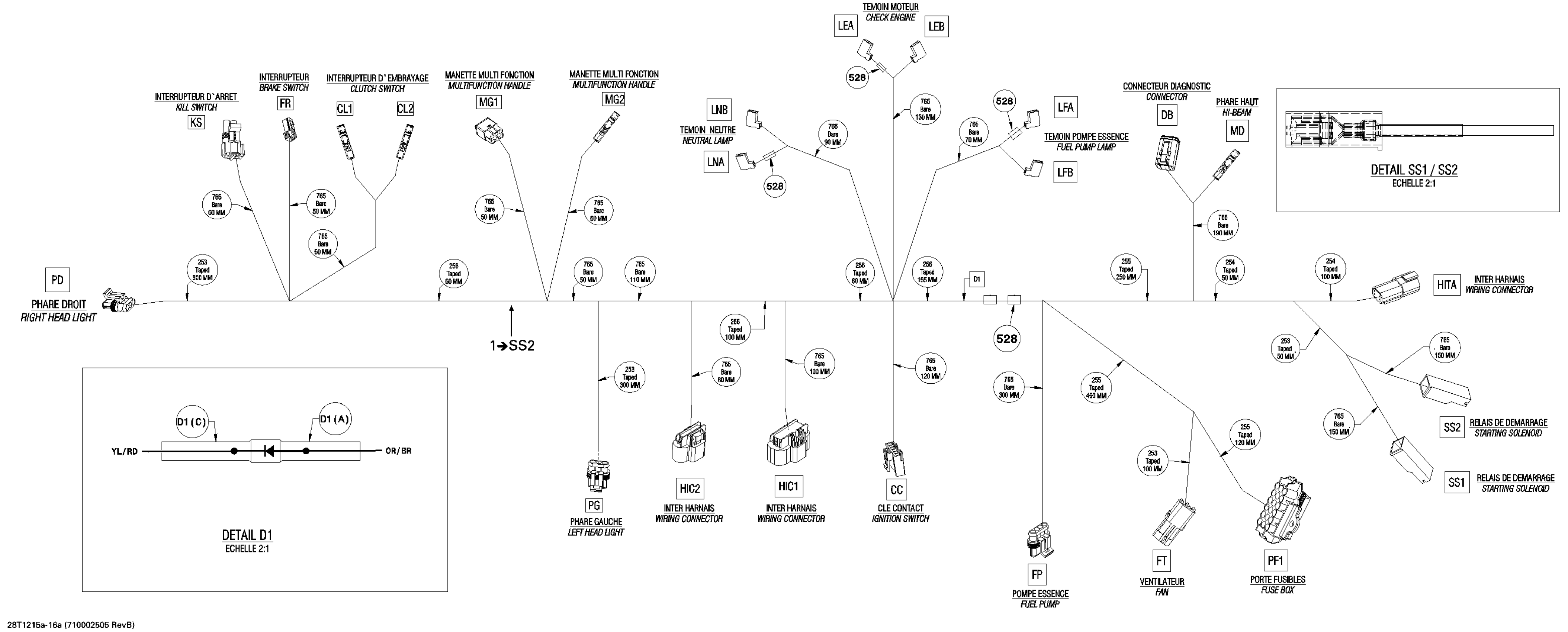

Can-Am DS 450EFI Xmx, 2013 10- Main Harness Front Section Diagram
#
1
Front Main Harness Ass'y | Includes 1 to SS2
710002505
Unavailable
253
Tubing 6 Mm 3000Mm Long
219704425
Unavailable
254
Was 409901700 Tubing (9 mm)
219704399
Unavailable
255
Was 409901800 Tubing (13 mm)
219704400
Unavailable
256
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
258
Tubing 10 MM 1000MM Long
219704407
Unavailable
527
Not Available As Spare Part - Friction Washer
Unavailable
528
Not Available As Spare Part - Friction Washer
Unavailable
765
Not Available As Spare Part - Friction Washer
Unavailable
CC
Not Available As Spare Part - Friction Washer
Unavailable
CC
Female Terminal
710000274
Unavailable
CC
Lock
710000848
Unavailable
CC
Male Housing, 6 Circuits
710000849
Unavailable
CC
Terminal | Canada/Usa
710001635
Unavailable
CL1
Insulated Sheath
278001007
Unavailable
CL1
Female Terminal
710000421
Unavailable
CL2
Insulated Sheath
278001007
Unavailable
CL2
Female Terminal
710000421
Unavailable
D1
Diode
409012700
Unavailable
D1
Not Available As Spare Part - Friction Washer
Unavailable
DB
Male Housing, 6 Circuits
515175673
Unavailable
DB
Male Wedge, 6 Circuits
515175678
Unavailable
DB
Female Terminal
278001665
Unavailable
FP
Female Terminal
278001014
Unavailable
FP
Female Housing, 4 Circuits
409209700
Unavailable
FP
Wire Seal
278001013
Unavailable
FP
Female Terminal
710001340
Unavailable
FR
Female Terminal
515175231
Unavailable
FR
Female Housing, 2 Circuits
515175658
Unavailable
FT
Male Terminal | XT Models
278000222
Unavailable
FT
Female Housing, 2 Circuits
278000217
Unavailable
FT
Wire Seal
278001065
Unavailable
FT
Clip
710000992
Unavailable
HIC1
Seal
710001230
Unavailable
HIC1
Seal
710001233
Unavailable
HIC1
Terminal
710001229
Unavailable
HIC1
Terminal
710001228
Unavailable
HIC1
Housing
710001226
Unavailable
HIC1
Cap
710001225
Unavailable
HIC2
Housing
710001232
Unavailable
HIC2
Seal
710001230
Unavailable
HIC2
Seal
710001233
Unavailable
HIC2
Terminal
710001229
Unavailable
HIC2
Terminal
710001228
Unavailable
HIC2
Cap
710001225
Unavailable
HITA
Male Terminal
515175823
Unavailable
HITA
Female Wedge, 4 Circuits
278000636
Unavailable
HITA
Not Available As Spare Part - Friction Washer
Unavailable
HITA
Male Terminal
710001348
Unavailable
KS
Female Terminal
278000223
Unavailable
KS
Male Connector, 2 Circuits
278000220
Unavailable
KS
Wire Seal
278001065
Unavailable
LEA
Female Terminal
409010300
Unavailable
LEA
Not Available As Spare Part - Friction Washer
Unavailable
LEB
Female Terminal
409010300
Unavailable
LEB
Not Available As Spare Part - Friction Washer
Unavailable
LFA
Female Terminal
409010300
Unavailable
LFA
Not Available As Spare Part - Friction Washer
Unavailable
LFB
Female Terminal
409010300
Unavailable
LFB
Not Available As Spare Part - Friction Washer
Unavailable
LNA
Female Terminal
409010300
Unavailable
LNA
Not Available As Spare Part - Friction Washer
Unavailable
LNB
Female Terminal
409010300
Unavailable
LNB
Not Available As Spare Part - Friction Washer
Unavailable
MD
Insulated Sheath
278001007
Unavailable
MD
Female Terminal
710000421
Unavailable
MG1
Female Terminal
409012100
Unavailable
MG1
Seal
409012300
Unavailable
MG1
Female Housing, 6 Circuits
710000081
Unavailable
MG2
Insulated Sheath
278001007
Unavailable
MG2
Female Terminal
710000421
Unavailable
PD
Female Terminal
278001014
Unavailable
PD
Female Housing, 3 Circuits
409209600
Unavailable
PD
Wire Seal
278001013
Unavailable
PF1
Wire Seal
278000216
Unavailable
PF1
Wire Seal
278001065
Unavailable
PF1
Wire Seal
710000504
Unavailable
PF1
Little Fuse, 10 Amperes
710000744
Unavailable
PF1
Little Fuse, 20 Amperes
710000746
Unavailable
PF1
Female Terminal
710000918
Unavailable
PF1
Fuse Box Ass'y
278002285
Unavailable
PF1
Fuse Box Cover
278002286
Unavailable
PF1
Relay
715900824
Unavailable
PF1
Female Terminal
278002578
Unavailable
PG
Female Terminal
278001014
Unavailable
PG
Female Housing, 3 Circuits
409209600
Unavailable
PG
Wire Seal
278001013
Unavailable
SS1
Female Terminal
409010100
Unavailable
SS1
Female Terminal Housing, 1 Circuit
409010400
Unavailable
SS1
Not Available As Spare Part - Friction Washer
Unavailable
SS1
SHRINK TUBING 500MM LONG - Call your local BRP dealership
219704448
Unavailable
SS2
Female Terminal
409010100
Unavailable
SS2
Female Terminal Housing, 1 Circuit
409010400
Unavailable
SS2
Not Available As Spare Part - Friction Washer
Unavailable
SS2
SHRINK TUBING 500MM LONG - Call your local BRP dealership
219704448
Unavailable
