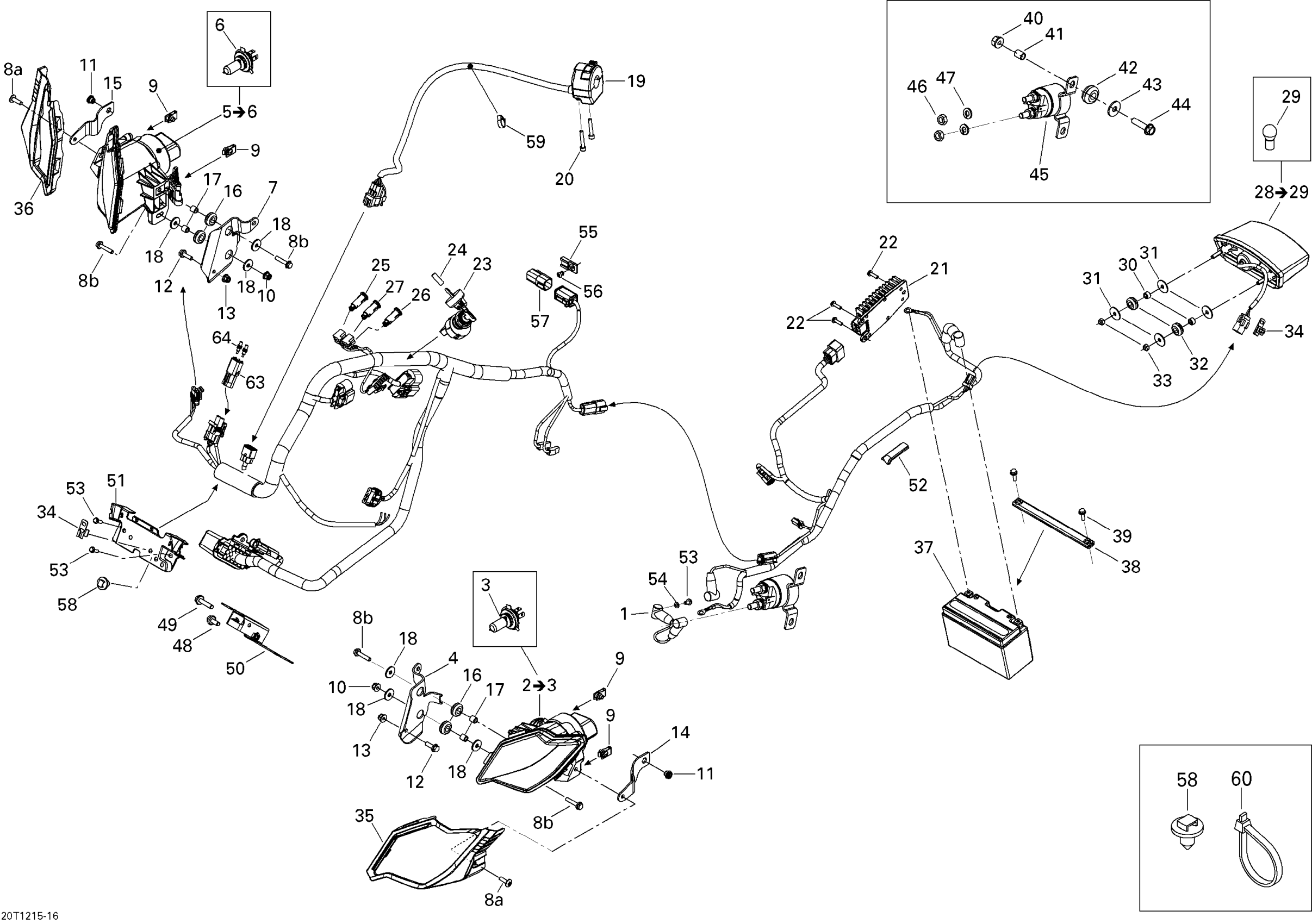

Can-Am DS 450EFI Xmx, 2013 Electrical System Diagram

#

Description
Price

1

Harness

710002429

Unavailable

2

LH FRONT LIGHT - Call your local BRP dealership | Includes 3 to 4

710001469

Unavailable

3

Bulb, 12V 35/35W

710000871

$32.06

4

LH FRONT SUPPORT - Call your local BRP dealership

710001763

Unavailable

5

RH FRONT LIGHT - Call your local BRP dealership | Includes 7 to 8

710001470

Unavailable

6

Bulb, 12V 35/35W

710000871

$32.06

7

RH FRONT SUPPORT - Call your local BRP dealership

710001764

Unavailable

8a

Torx Screw M6 X 20

250000722

$1.54

8b

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

9

Panel Nut M6 X 1.0

250100198

$1.99

10

Flange Elastic Nut M6

233261434

$4.15

11

Threaded Insert M6 X 1.0

250100242

Unavailable

12

Hex. Flange Screw M6 X 20

207662034

$2.00

13

Flange Elastic Nut M6

233261434

$4.15

14

LH SUPPORT - Call your local BRP dealership

710001519

Unavailable

15

RH SUPPORT - Call your local BRP dealership

710001520

Unavailable

16

Grommet

709000582

$4.25

17

Bushing

293900105

$6.07

18

Flat Washer

224061201

$1.27

19

Inter.Multi.Fon*Switch-M.Fuct.

710001762

$121.61

20

SCREW-SOCKET HD.DIN.912 - Call your local BRP dealership

205053088

Unavailable

21

Rectifier

710000803

$76.09

22

Hex. Flange Screw, Scotch Grip

207551634

$1.91

23

Ignition Switch With Key

710002323

$80.57

24

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

25

PILOT LAMP - Call your local BRP dealership

710002527

Unavailable

26

PILOT LAMP - Call your local BRP dealership

710002526

Unavailable

27

PILOT LAMP, NEUTRAL - Call your local BRP dealership

710001012

Unavailable

28

Tail Light Ass'y | Includes 19 to 20

710001041

$57.43

29

Bulb

520000758

$8.60

30

SPACER - Call your local BRP dealership

293900089

Unavailable

31

FLAT WASHER - Call your local BRP dealership

250200099

Unavailable

32

Grommet

709000582

$4.25

33

Elastic Stop Nut M6

232561434

$1.78

34

Housing Support

515175283

$8.18

35

PROTECTOR - Call your local BRP dealership

710001310

Unavailable

36

PROTECTOR - Call your local BRP dealership

710001311

Unavailable

37

Battery 6,5A

715500305

$116.39

38

BATTERY SUPPORT - Call your local BRP dealership

710002266

Unavailable

39

Hex. Flange Screw M6 X 20

207662034

$2.00

40

Hex. Flange Elastic Nut M6

233261494

$1.45

41

Spacer

707000065

$6.16

42

Grommet

414036300

$2.55

43

Stainless Steel Flat Washer

234062670

$2.00

44

Hex. Flange Forming Screw M6 X 25

210262550

$1.88

45

Starter Relay

710007777

$45.49

46

Hex. Nut M6

232061600

$1.04

47

Lock Washer Helical M6

234161601

$1.06

48

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

49

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.15

50

Bracket

710002614

Unavailable

51

Housing Support

710001074

Unavailable

34

Housing Support

515175283

$8.18

53

Hex. Flange Screw, Scotch Grip

207551634

$1.91

52

Neoprene Seal (1PAC=3M)

219704364

$26.09

53

SCREW-HEX.FLANGE DIN.6921 S.GRIP - Call your local BRP dealership

207551034

Unavailable

54

Flat Washer

234051430

$2.19

55

Clip

270000141

$9.57

56

Avex Rivet

390909200

$0.28

57

Diagnostic Connector

278002704

$17.88

58

Mount Dart

293730040

$0.99

59

Clamp

293650082

$3.82

60

Tie Wrap 142 mm

293750002

$1.01

60

Tie-Rap 180 mm

414115200

$0.10

60

Tie Wrap 368 mm

293750008

$0.97

60

Tie-rap 627 mm

293750041

$0.87

60

Tie Wrap 94 mm | 4X4

293750001

$0.96
