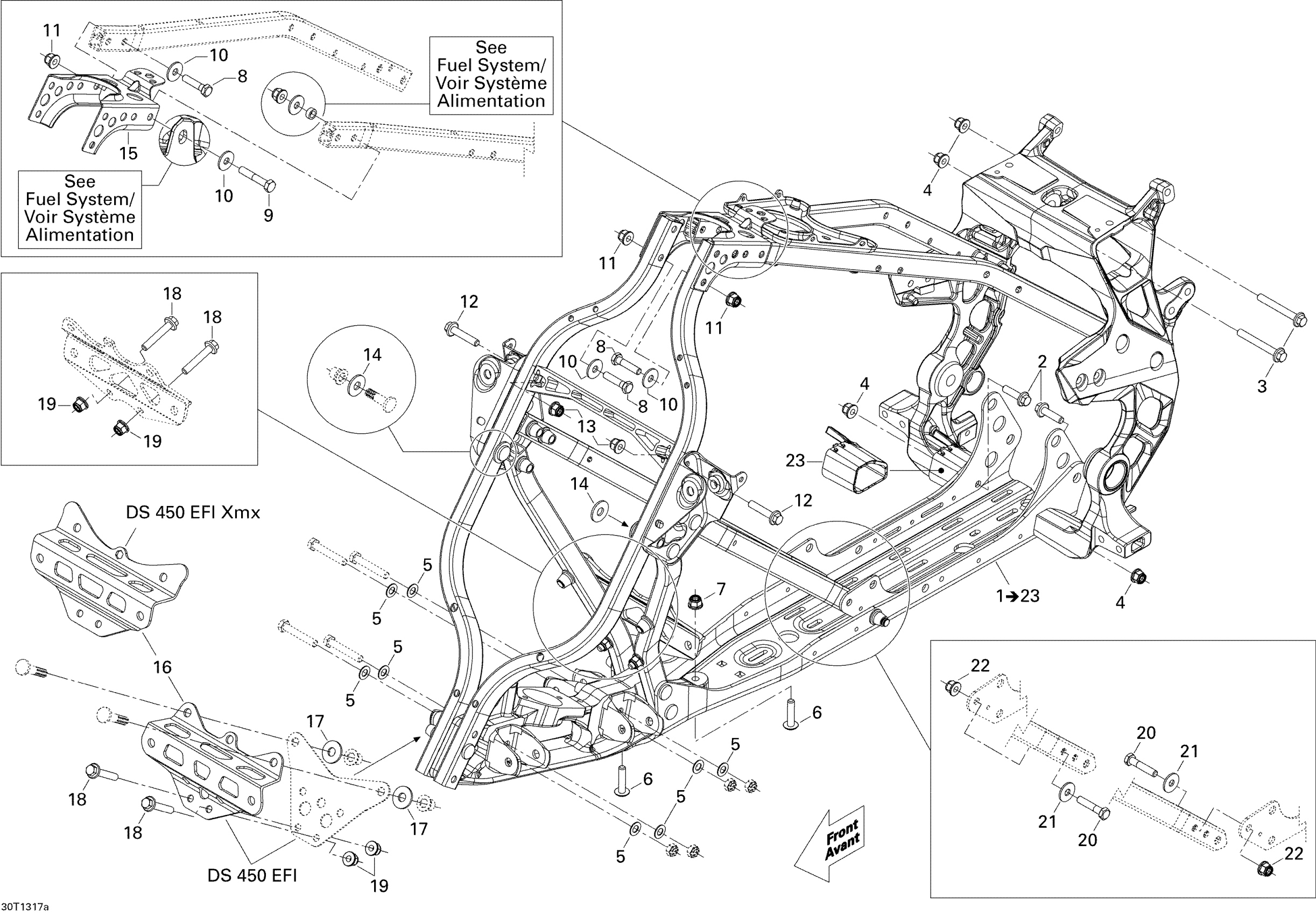

Can-Am DS 450EFI Xmx, 2013 09- Frame, System 1 Diagram
#
Description
Price
1
FRAME ASS'Y - Call your local BRP dealership | Includes 1 to 16
705202639
Unavailable
2
Hex. Flange Screw M8 X 30
207683034
Unavailable
3
Hex. Flange Screw M8 x 65
207686534
Unavailable
4
Hex. Flange Elastic Nut M8
233281434
Unavailable
5
Washer
506151252
Unavailable
6
TORX TRUSS SCREW M8 X 35 - Call your local BRP dealership
250000316
Unavailable
7
Hex. Flange Elastic Nut M8
233281434
Unavailable
8
Hex. Screw M8 X 35
207083544
Unavailable
9
Hex. Screw M8 X 45
207084544
Unavailable
10
Flat Washer 8 mm
234082410
Unavailable
11
Hex. Flange Elastic Nut M8
233281434
Unavailable
12
Hex. Flange Screw M8 X 40
207684034
Unavailable
13
Hex. Flange Elastic Nut M8
233281434
Unavailable
14
Flat Washer M10 | 4X4
250200014
Unavailable
15
PLATE - Call your local BRP dealership
705201072
Unavailable
16
FRONT BRAKET A-ARM - Call your local BRP dealership
705202172
Unavailable
17
Flat Washer M10 | 4X4
250200014
Unavailable
18
HEX. FLANGED SCREW M8 X 45 - Call your local BRP dealership
207684534
Unavailable
19
Hex. Flange Elastic Nut M8
233281434
Unavailable
20
Hex. Screw M8 X 40
207084044
Unavailable
21
Flat Washer 8 mm
234082410
Unavailable
22
Hex. Flange Elastic Nut M8
233281434
Unavailable
23
GUARD - Call your local BRP dealership
705500931
Unavailable
