08- Rear Suspension Xmx

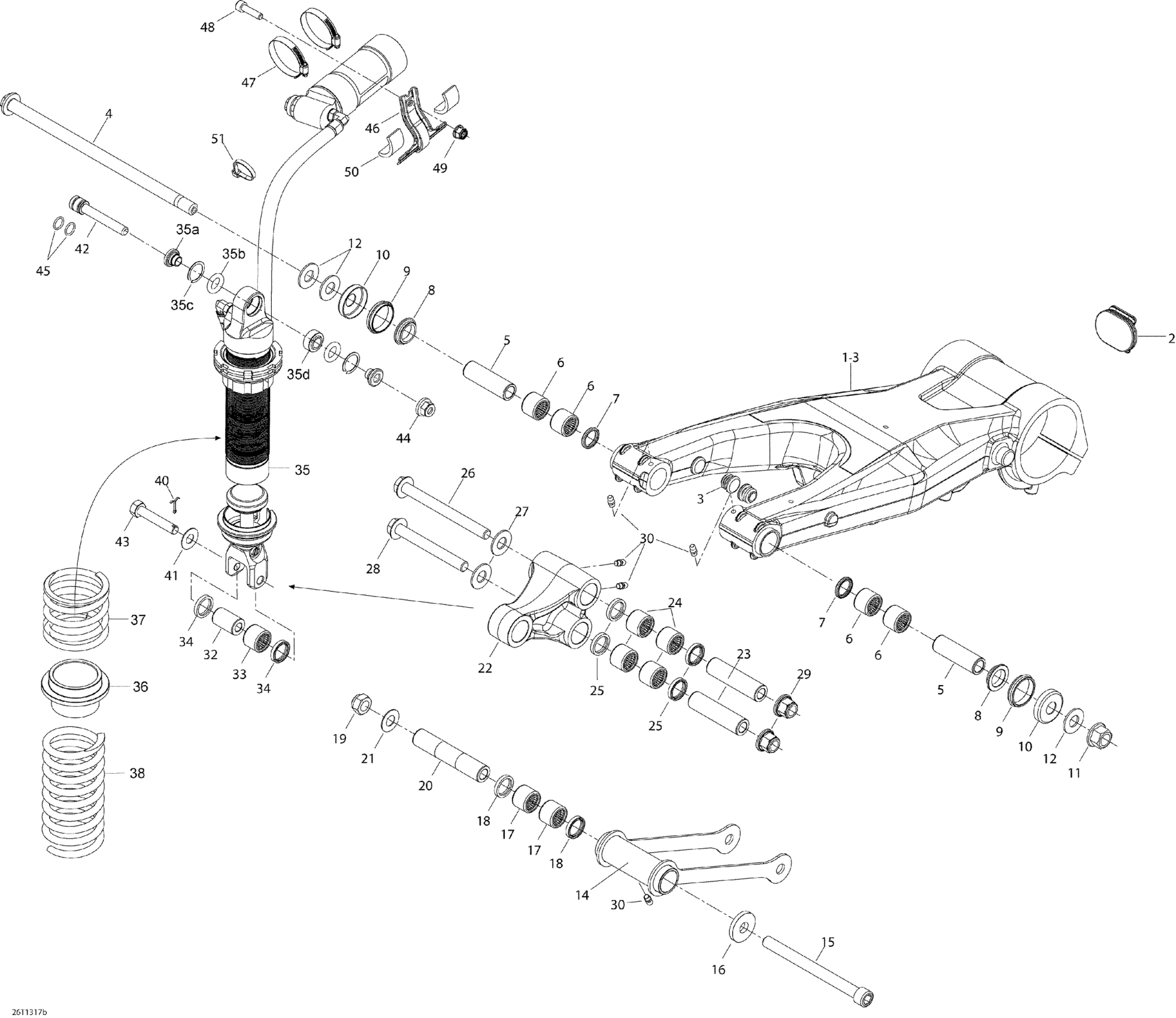

Can-Am DS 450EFI Xmx, 2013 08- Rear Suspension Xmx Diagram
#
1
SWING ARM ASS'Y - Call your local BRP dealership | Includes 1 to 3
706000849
Unavailable
2
SWING ARM CAP - Call your local BRP dealership
706000459
Unavailable
3
Cap
517302716
Unavailable
4
HEX. SCREW M14 X 287 - Call your local BRP dealership
250000358
Unavailable
5
BUSHING - Call your local BRP dealership
706000978
Unavailable
6
Bearing
706000447
Unavailable
7
SEAL - Call your local BRP dealership
706000850
Unavailable
8
SPACER - Call your local BRP dealership
706000701
Unavailable
9
SEAL - Call your local BRP dealership
706000750
Unavailable
10
SEAL CAP - Call your local BRP dealership
706000738
Unavailable
11
Elastic Stop Nut
232571436
Unavailable
12
FLAT WASHER - Call your local BRP dealership
250200079
Unavailable
14
LEVER - Call your local BRP dealership
706000445
Unavailable
15
Hexa gonal Socket Screw M12 X 140
231024087
Unavailable
16
Washer
250200052
Unavailable
17
Bearing
706000447
Unavailable
18
Seal, Single Lip ID 19.4 OD 26
706000448
Unavailable
19
Elastic Stop Nut M12
232521416
Unavailable
20
BUSHING - Call your local BRP dealership
706000730
Unavailable
21
Hardened Washer
706200281
Unavailable
22
SECONDARY LEVER - Call your local BRP dealership
706200465
Unavailable
23
Bushing
706000731
Unavailable
24
Bearing
706000447
Unavailable
25
Seal, Single Lip ID 19.4 OD 26
706000448
Unavailable
26
SCREW-HEX.CAP-ISO.4014 S.GRIP - Call your local BRP dealership
230223086
Unavailable
27
Hardened Washer
706200281
Unavailable
28
Hexagonal Screw M12 X 105
230020586
Unavailable
29
Flange Elastic Nut
233221434
Unavailable
30
Grease Fitting
250000315
Unavailable
32
BUSHING - Call your local BRP dealership
706000733
Unavailable
33
Bearing
706000447
Unavailable
34
Seal, Single Lip ID 19.4 OD 26
706000448
Unavailable
35
REAR SHOCK - Call your local BRP dealership | Includes 35 to 38
706001761
Unavailable
35a
INNER BUSHING - Call your local BRP dealership
715900211
Unavailable
35b
O-Ring Bushing
715900209
Unavailable
35c
Retaining Ring
715900252
Unavailable
35d
Spherical Bearing
715900251
Unavailable
36
Spring Spacer
706001387
Unavailable
37
SPRING - Call your local BRP dealership
706001259
Unavailable
38
SPRING - Call your local BRP dealership
706001386
Unavailable
40
Cotter Pin
250400034
Unavailable
41
Flat Washer
250200080
Unavailable
42
SCREW - Call your local BRP dealership
706000541
Unavailable
43
BOLT M10 - Call your local BRP dealership
250000254
Unavailable
44
Hex. Flange Elastic Nut M10
233201436
Unavailable
45
O-RING - Call your local BRP dealership
504151954
Unavailable
46
SUPPORT - Call your local BRP dealership
706001423
Unavailable
47
Tridon Clamp
293650036
Unavailable
48
Socket Head Screw M8 X 30
205083044
Unavailable
49
Hex. Flange Elastic Nut M8
233281434
Unavailable
50
RUBBER PAD - Call your local BRP dealership
293830129
Unavailable
51
Tie-rap 627 mm
293750041
Unavailable
