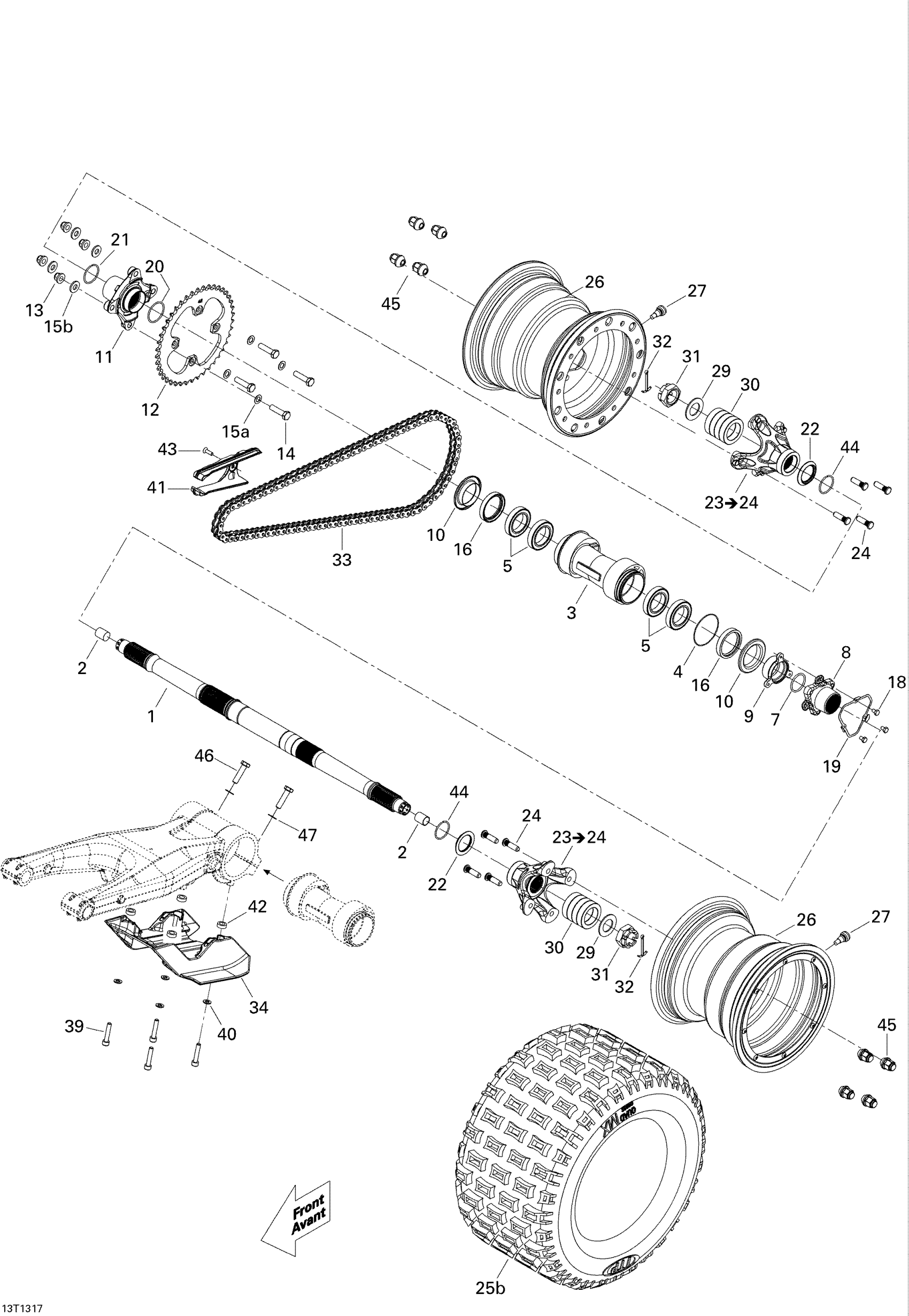

Can-Am DS 450EFI Xmx, 2013 Drive System, Rear Diagram

#

Description
Price

1

AXLE-DRIVE - Call your local BRP dealership

705501690

Unavailable

2

CAP - Call your local BRP dealership

293730044

Unavailable

3

CHAIN TIGHTENER - Call your local BRP dealership

705501159

Unavailable

4

O-Ring

293300115

$3.77

5

Ball Bearing

293350077

$38.99

7

O-RING - Call your local BRP dealership

293300089

Unavailable

8

Brake Disc Hub

705500646

$96.49

9

NUT M40 - Call your local BRP dealership

705500649

Unavailable

10

Wear Ring

705500648

$18.54

11

Wheel Hub

705501161

$132.49

12

Sprocket Kit, 39 Teeth | Includes 12 to 13, Xmx, Except Europe

715000527

$164.99

13

Hex. Flange Elastic Nut M10

233201436

$2.11

14

Hex. Screw M10 X 40

207004036

$1.90

15a

Flat Washer

250200084

$3.38

15b

Conical Spring Washer 10 mm

234201474

$1.69

16

Oil Seal

293250164

$14.28

18

HEX. SCREW M6 X 10 - Call your local BRP dealership

207161034

Unavailable

19

LOCK WASHER - Call your local BRP dealership

705500669

Unavailable

20

O-RING - Call your local BRP dealership

293300099

Unavailable

21

RING RETAINER - Call your local BRP dealership

705500108

$7.19

22

SUPPORT RING - Call your local BRP dealership

705500663

Unavailable

23

Rear Wheel Hub Ass'y | Includes 23 to 24

705501075

$132.49

24

Wheel Stud

250300013

$3.19

25b

Rear Tire | Xmx, Except Europe

705501106

Unavailable

26

RIM_8 INCH X 8 - Call your local BRP dealership | Xmx

705500995

Unavailable

27

Rim Valve With Cap

705400193

$8.69

29

FLAT WASHER - Call your local BRP dealership

250200087

Unavailable

30

SPACER - Call your local BRP dealership

705500999

Unavailable

31

Hex. Castlellated Nut M27

250100093

$13.18

32

COTTER PIN - Call your local BRP dealership

250400028

Unavailable

33

Chain | Xmx

705501084

$110.99

39

Socket Head Screw M8 X 50, Scotch Grip | XMX

205585044

$3.17

40

Flat Washer 8 mm

234081410

$0.83

41

Chain Slider

705501422

$18.54

42

BUSHING - Call your local BRP dealership | XMX

293900098

Unavailable

43

Socket Head Screw M6, Scotch Grip

205862034

$2.11

44

RING RETAINER - Call your local BRP dealership

705500065

Unavailable

45

Black, Wheel Nut M10 X 1.25

250100184

$4.51

46

Hex. Screw M10 X 1.5 X 40

207004034

$2.11

47

Flat Washer

250200084

$3.38
