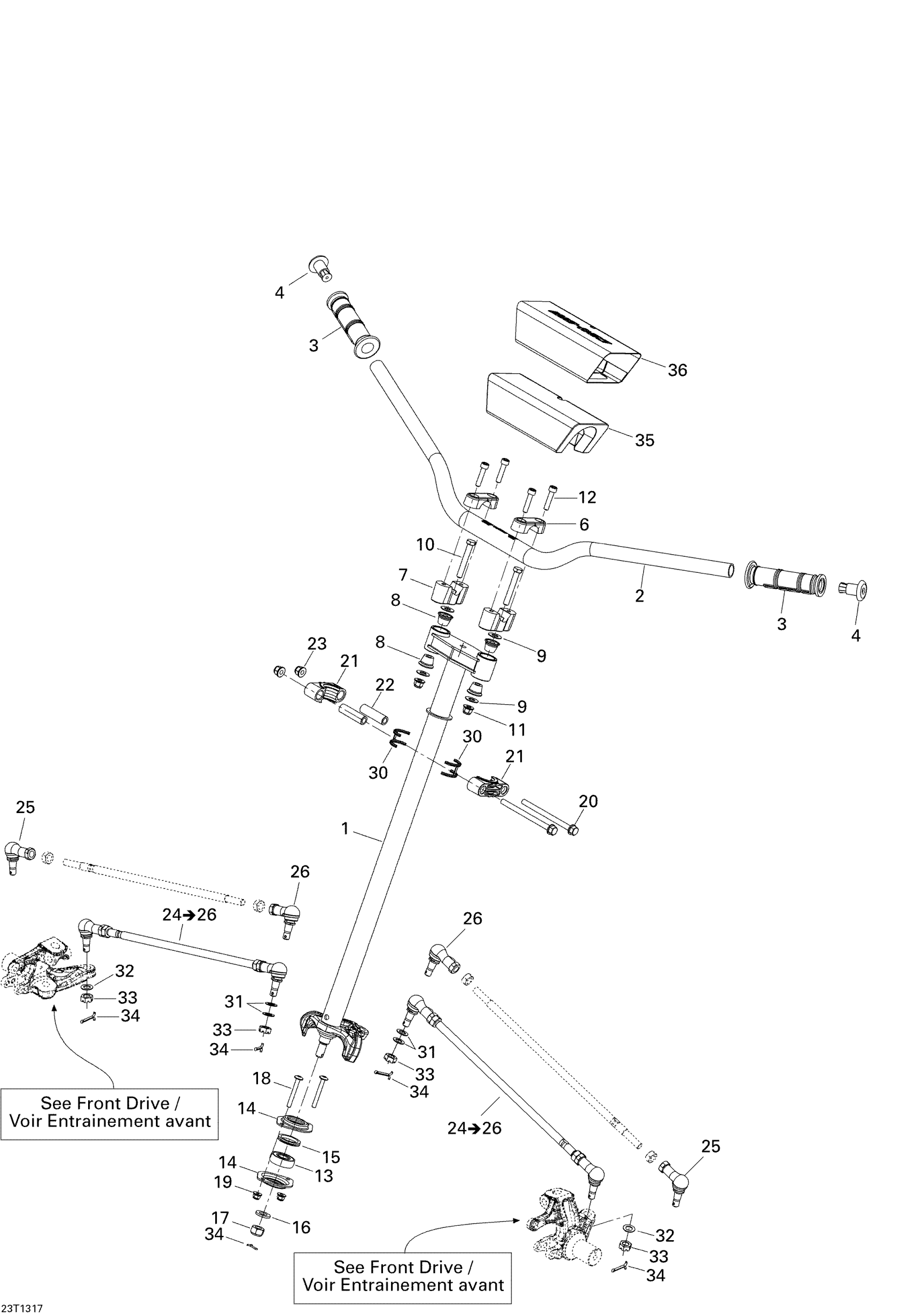

Can-Am DS 450EFI Xmx, 2013 Steering Diagram

#

Description
Price

1

PAINT COLUMN - Call your local BRP dealership

709401645

Unavailable

2

HANDLE BAR ALUMINUM - Call your local BRP dealership

709400668

Unavailable

3

Handle Grip

709400493

$14.75

4

END PIECE - Call your local BRP dealership

709400627

Unavailable

6

Support

709400496

$27.66

7

ALUMINUM SUPPORT - Call your local BRP dealership

709400592

Unavailable

8

DAMPER BUSHING - Call your local BRP dealership

293830131

Unavailable

9

Washer

506152194

$4.42

10

Screw Hex. M10 X 70

250001024

$1.74

11

Elastic Flange Nut M10

232501416

$1.25

12

Socket Head Screw

205083534

$2.06

13

Ball Bearing

709400439

$18.43

14

THRUST WASHER - Call your local BRP dealership

709400468

Unavailable

15

Seal

293250177

$7.37

16

Flat Washer

234021430

$2.06

17

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

250100090

Unavailable

18

Torx Screw M6 X 50

250000317

$2.06

19

Flange Elastic Nut M6

233261434

$3.61

20

Hex. Flange Screw M8 X 110

230681034

$4.28

21

Half Bushing

709400471

$13.59

22

BUSHING - Call your local BRP dealership

709400072

Unavailable

23

Hex. Flange Elastic Nut M8

233281434

$1.74

24

TIE ROD ASS'Y - Call your local BRP dealership | Includes 25 to 27, Xmx

709400673

Unavailable

25

BALL JOINT - Call your local BRP dealership

715900053

Unavailable

26

BALL JOINT - Call your local BRP dealership

715900052

Unavailable

30

HALF-SEAL - Call your local BRP dealership

293300120

Unavailable

31

Washer

503183800

$3.20

32

Washer

503183800

$3.20

33

CASTLE NUT - Call your local BRP dealership

250100094

Unavailable

34

Cotter Pin

250400034

$2.06

35

Foam

709400422

$16.12

36

Cover

709400423

$32.28
