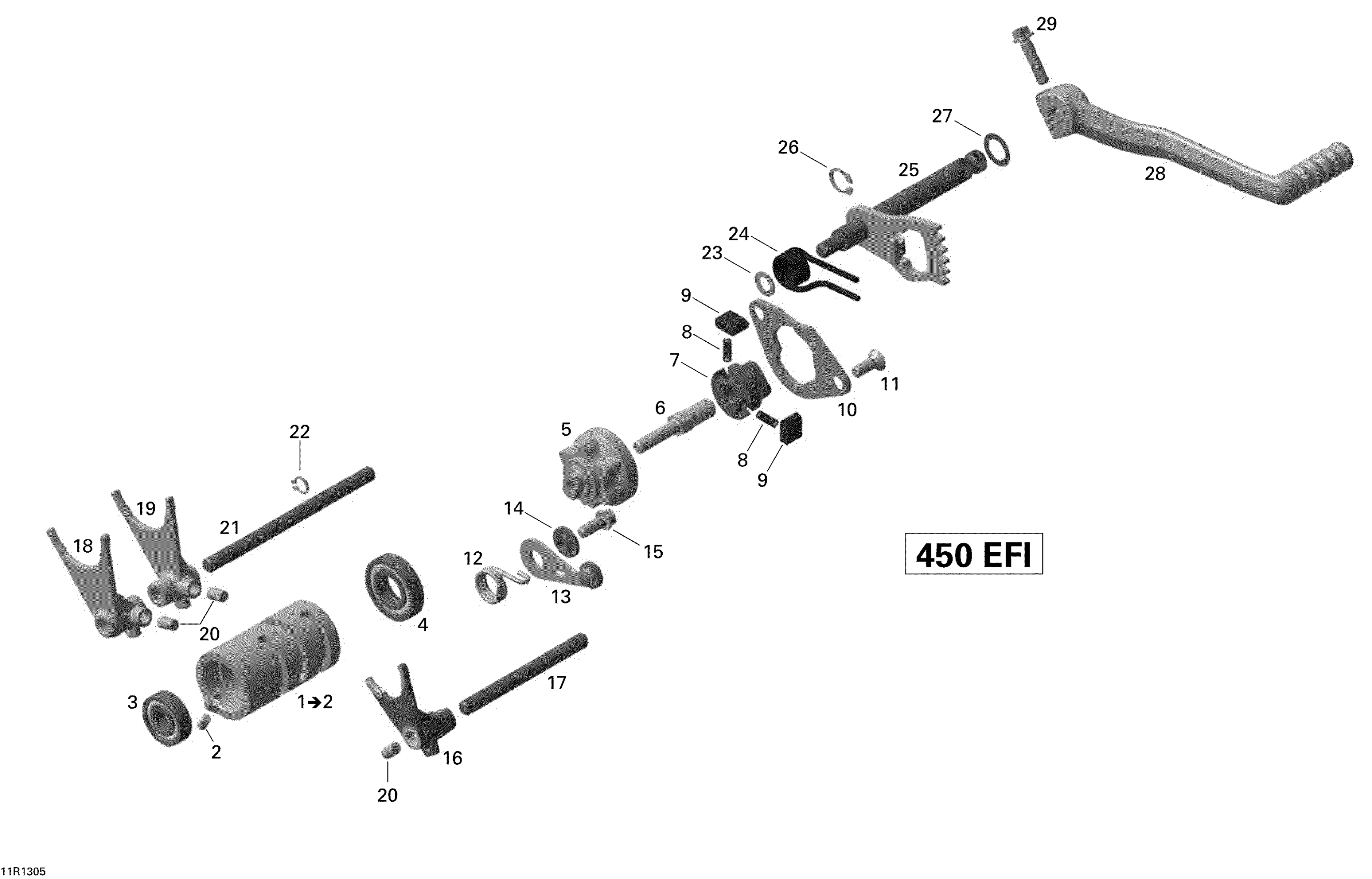

Can-Am DS 450EFI Xmx, 2013 Shifting Diagram

#

Description
Price

1

SHIFT DRUM - Call your local BRP dealership | Includes 1 to 2

420257808

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Balll Bearing

420232400

$22.36

4

BALL BEARING - Call your local BRP dealership

420232590

Unavailable

5

INDEX WASHER - Call your local BRP dealership

420257810

Unavailable

6

BEARING PIN - Call your local BRP dealership

420249150

Unavailable

7

TOOTH SEGMENT - Call your local BRP dealership

420434661

Unavailable

8

COMPRESSION SPRING - Call your local BRP dealership

420239131

$10.34

9

PAWL - Call your local BRP dealership

420257821

Unavailable

10

DISENGAGE GATE - Call your local BRP dealership

420257830

Unavailable

11

Countersunk Screw M6 X 16

420440906

$3.01

12

INDEX SPRING 2.5 MM - Call your local BRP dealership

420238294

Unavailable

13

INDEX LEVER - Call your local BRP dealership

420248326

Unavailable

14

Step Ring

420227717

$10.30

15

Torx Flange Screw M6 X 16

420641048

$2.82

16

GEARSHIFT FORK - Call your local BRP dealership

420257930

Unavailable

17

FORK SPINDLE - Call your local BRP dealership

420258205

Unavailable

18

GEARSHIFT FORK - Call your local BRP dealership

420257920

Unavailable

19

GEARSHIFT FORK - Call your local BRP dealership

420257910

Unavailable

20

Needle Pin

420932785

$12.34

21

FORK SPINDLE - Call your local BRP dealership

420258200

Unavailable

22

Retaining Ring

420245570

$6.16

23

Washer 8.4

420944033

$0.96

24

SPRING - Call your local BRP dealership

420239251

Unavailable

25

Shift Shaft

420620795

$82.06

26

Retaining Ring

420945470

$5.10

27

Shim

420944382

$3.88

28

Gearshift Pedal

420248540

$88.03

29

Torx Flange Screw M6 X 25

420440234

$2.91
