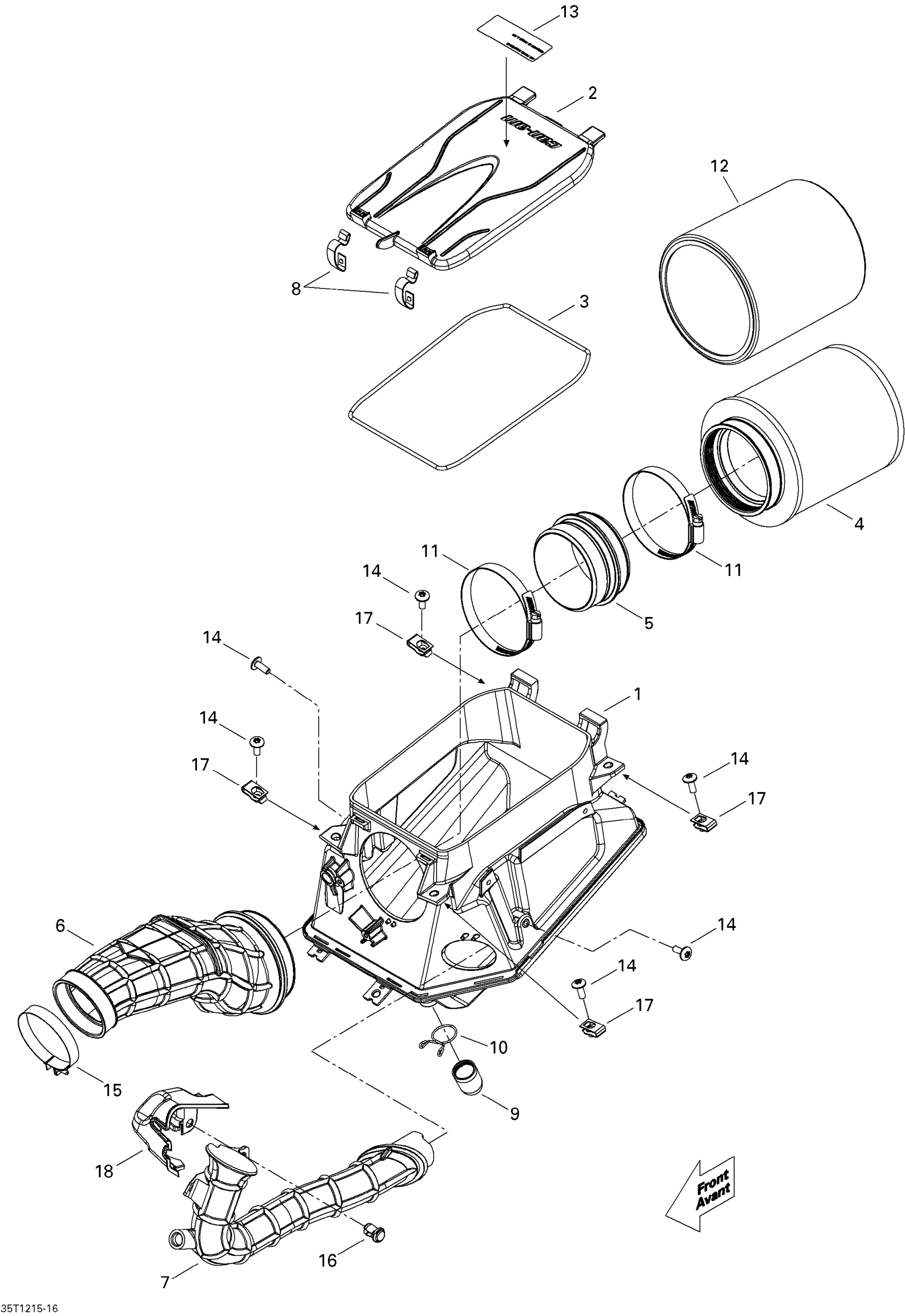

Can-Am DS 450EFI Xmx, 2013 Air Intake Silencer Diagram

#

Description
Price

1

AIR SILENCER - Call your local BRP dealership

707800242

Unavailable

2

Air Box Cover

707800215

$35.04

3

GASKET - Call your local BRP dealership

707800240

$10.42

4

Air Filter

707800216

$30.57

5

ADAPTOR - Call your local BRP dealership

707800257

Unavailable

6

INTAKE ADAPTOR - Call your local BRP dealership

707800218

Unavailable

7

FRONT AIR INTAKE - Call your local BRP dealership

707800258

Unavailable

8

Cover Bracket

707800249

$7.67

9

Drain Tube

707800080

$6.99

10

Retainer Clip

707800278

$12.30

11

Tridon Clamp

204000079

$8.45

12

INTAKE PRE-FILTER - Call your local BRP dealership

707800293

Unavailable

13

Air Filter Maintenance Decal

707800373

Unavailable

14

Torx Screw M6 X 16

250000223

$2.00

15

GEMI CLAMP - Call your local BRP dealership

293650159

Unavailable

16

Tuflok Plastic Rivet

293150230

$1.39

17

Panel Nut M6 X 1.0

250100198

$1.99

18

DEFLECTOR - Call your local BRP dealership

707800285

Unavailable
