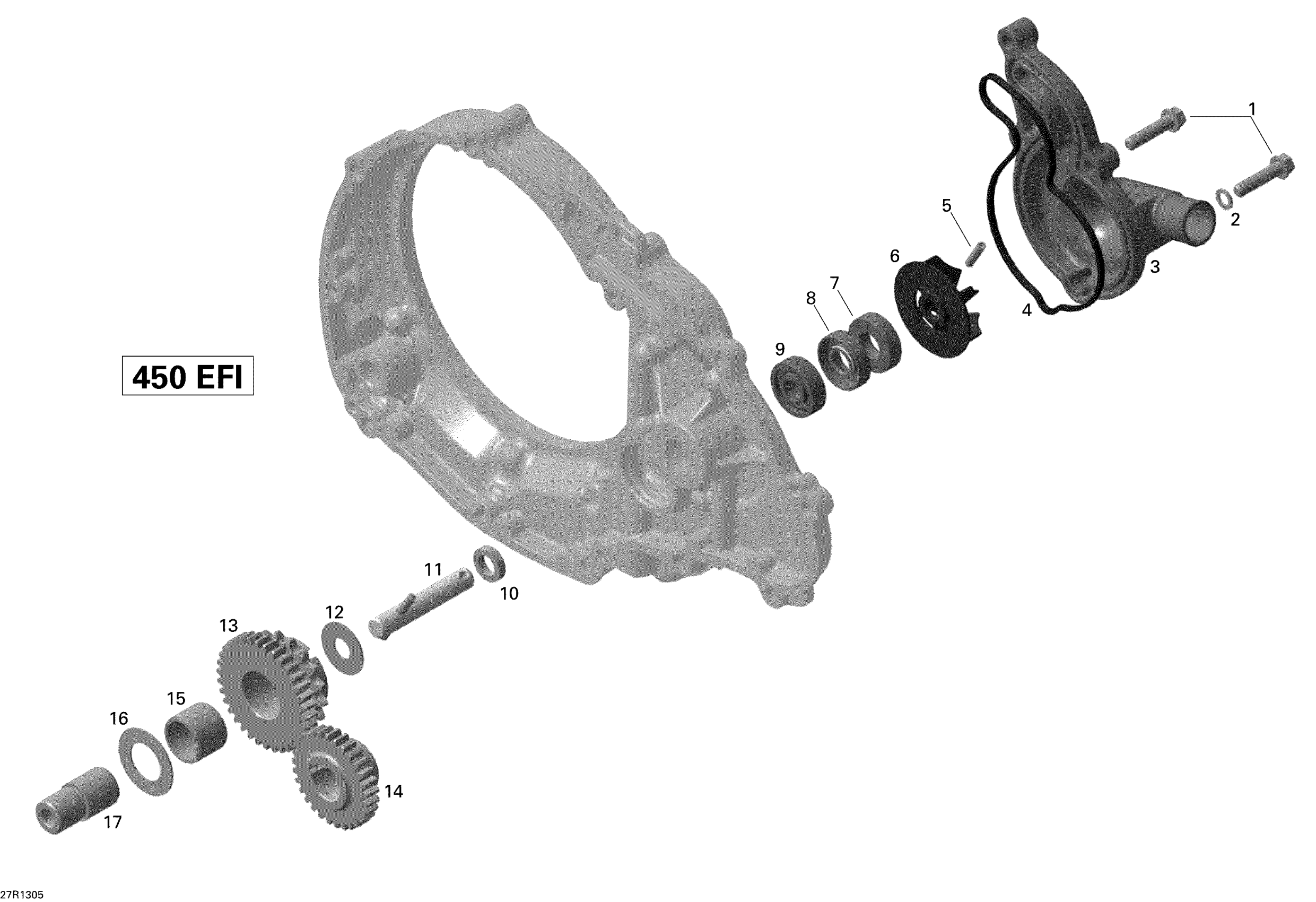

Can-Am DS 450EFI Xmx, 2013 Engine Cooling Diagram

#

Description
Price

1

Torx Flange Screw M6 X 25

420641238

$3.27

2

Seal Washer

420230415

$1.79

3

Water Pump Cover

420611670

$86.99

4

Gasket

420431030

$7.90

5

Spring Pin

420229280

$5.29

6

Water Pump Impeller

420222272

$15.49

7

Oil Seal

420230197

$18.54

8

Oil Seal

420230195

$15.36

9

Ball Bearing

420232100

$20.99

10

Distance Sleeve

420229880

$13.24

11

Waterpump Shaft

420220171

$32.99

12

Thrust Washer

420227680

$12.18

13

INTERMEDIATE GEAR - Call your local BRP dealership

420434705

Unavailable

14

CONTROL GEAR, 29 TEETH - Call your local BRP dealership

420434721

Unavailable

15

NEEDLE BEARING - Call your local BRP dealership

420832990

Unavailable

16

THRUST WASHER - Call your local BRP dealership

420627292

Unavailable
