01- Engine And Engine Support

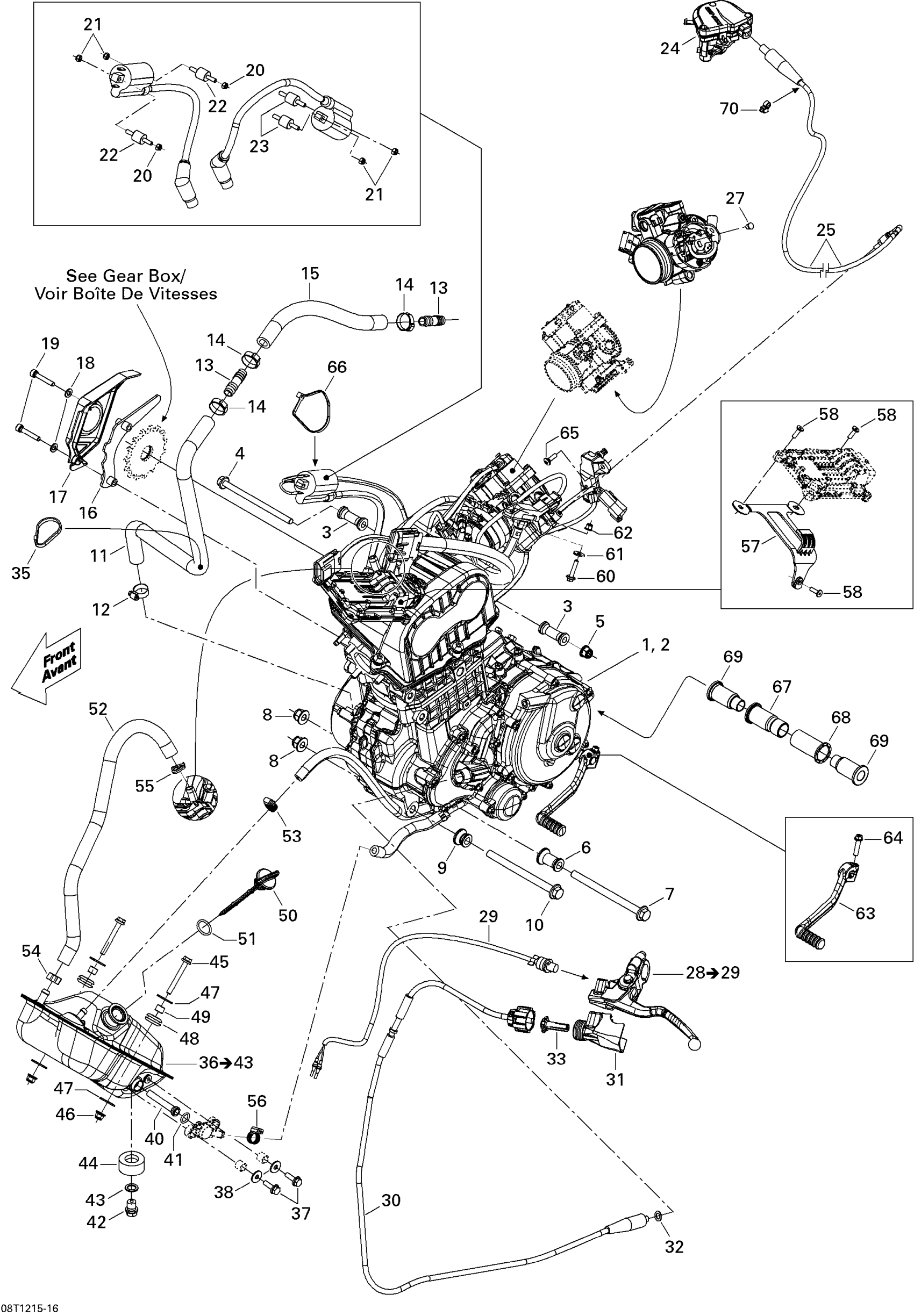

Can-Am DS 450EFI Xmx, 2013 01- Engine And Engine Support Diagram
#
1
Not Available As Spare Part - Friction Washer
Unavailable
2
LONG BLOCK, 449 EFI ENGINE - Call your local BRP dealership
420044904
Unavailable
3
SPACER - Call your local BRP dealership
293900071
Unavailable
4
Hex. Flange Screw M8 X 130
230683034
Unavailable
5
Hex. Flange Elastic Nut M8
233281434
Unavailable
6
SPACER - Call your local BRP dealership
293900072
Unavailable
7
HEX. FLANGED SCREW M10 X 135 - Call your local BRP dealership
230603536
Unavailable
8
Hex. Flange Elastic Nut M10
233201434
Unavailable
9
SPACER - Call your local BRP dealership
293900074
Unavailable
10
HEX. FLANGED SCREW M10 X 130 - Call your local BRP dealership
230603036
Unavailable
11
Hose
707000502
Unavailable
12
Tridon Gear Clamp
293650172
Unavailable
13
CONNECTOR - Call your local BRP dealership
293710119
Unavailable
14
Oetiker Clamp
293650012
Unavailable
15
HOSE 12 MM - Call your local BRP dealership
707000537
Unavailable
16
CHAIN GUARD - Call your local BRP dealership
707000464
Unavailable
17
SPROCKET COVER - Call your local BRP dealership
707000425
Unavailable
18
Flat Washer M6
234061430
Unavailable
19
SOCKET HEAD SCREW M6 X 35, SCOTCH GRIP - Call your local BRP dealership
205563536
Unavailable
20
Flange Elastic Nut M5
233251434
Unavailable
21
Elastic Stop Nut M5
232551414
Unavailable
22
Rubber Mount
707000746
Unavailable
23
Rubber Mount
707000746
Unavailable
24
THROTTLE HANDLE - Call your local BRP dealership
707000440
Unavailable
25
THROTTLE CABLE - Call your local BRP dealership
707000439
Unavailable
27
Cable Guide
707000434
Unavailable
28
HANDLE LEVER ASS'Y - Call your local BRP dealership | Includes 30 to 31
707000469
Unavailable
29
LEVER SHIFTER SWITCH - Call your local BRP dealership
707000183
Unavailable
30
Clutch Cable
707000422
Unavailable
31
BOOT - Call your local BRP dealership
293830122
Unavailable
32
Washer
504082900
Unavailable
33
SCREW - Call your local BRP dealership
707000602
Unavailable
35
Tie-Rap 180 mm
414115200
Unavailable
36
OIL TANK ASS'Y - Call your local BRP dealership | Includes 40 to 46
707000806
Unavailable
37
Hex. Flange Screw M6 X 20
207662034
Unavailable
38
Flat Washer 6 mm
234062410
Unavailable
40
STRAINER - Call your local BRP dealership
519000144
Unavailable
41
O-Ring
293300128
Unavailable
42
Plug
250500010
Unavailable
43
Copper Washer
250200061
Unavailable
44
RUBBER STOPPER - Call your local BRP dealership
705001678
Unavailable
45
HEX. FLANGED SCREW M6 X 50 - Call your local BRP dealership
207665034
Unavailable
46
Flange Elastic Nut M6
233261434
Unavailable
47
FLAT WASHER - Call your local BRP dealership
250200099
Unavailable
48
Grommet
293720062
Unavailable
49
SPACER - Call your local BRP dealership
293900089
Unavailable
50
Oil Cap
707000526
Unavailable
51
O-Ring
709000089
Unavailable
52
HOSE - Call your local BRP dealership
707000544
Unavailable
53
Tridon Gear Clamp
293650171
Unavailable
54
Oetiker Clamp
293650011
Unavailable
55
ROTOCLIP CLAMP - Call your local BRP dealership
293650180
Unavailable
56
Tridon Gear Clamp
293650171
Unavailable
57
MODULE SUPPORT - Call your local BRP dealership
710000972
Unavailable
58
SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership
250000295
Unavailable
60
Hex. Flange Screw M5 X 25
207652544
Unavailable
61
Washer | DS 650 X
391301600
Unavailable
62
Flange Elastic Nut M5
233251434
Unavailable
63
Gearshift Pedal
420248540
Unavailable
64
Torx Flange Screw M6 X 25
420440234
Unavailable
65
Torx Screw K50 X 16
250000720
Unavailable
66
Tie Wrap 368 mm
293750008
Unavailable
67
RH SPACER - Call your local BRP dealership
707000947
Unavailable
68
SPACER - Call your local BRP dealership
707001749
Unavailable
69
RUBBER MOUNT - Call your local BRP dealership
707000800
Unavailable
70
Tie Wrap 142 mm
293750002
Unavailable
