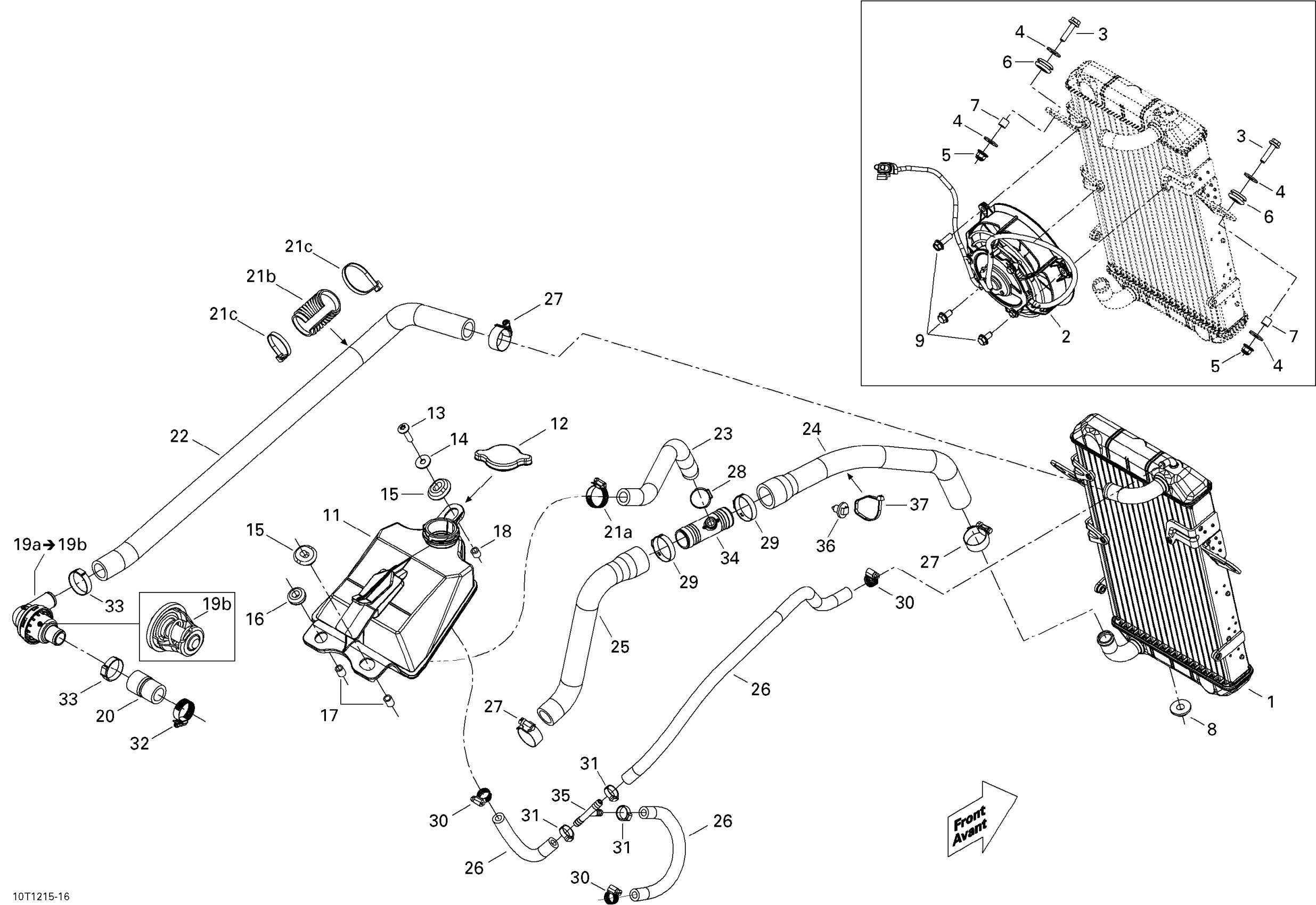

Can-Am DS 450EFI Xmx, 2013 Cooling System Diagram

#

Description
Price

1

RADIATOR - Call your local BRP dealership

709200152

Unavailable

2

Fan

709200573

$259.99

3

Hex. Flange Screw M6 X 25

207662534

$2.11

4

FLAT WASHER - Call your local BRP dealership

250200099

Unavailable

5

Flange Elastic Nut M6

233261434

$4.44

6

Grommet

709000582

$4.69

7

Bushing

293900105

$7.65

8

Grommet

705003932

$2.89

9

Hex. Flange Screw M6 X 12, Scotch Grip

207561234

$2.11

11

Tank

709200164

$53.99

12

Radiator Pressure Cap

709200207

$25.49

13

Hex. Flange Screw M6 X 25

207562544

$1.69

14

Flat Washer

250200082

$0.42

15

Oval Washer

705000321

$5.61

16

Grommet

709000582

$4.69

17

Bushing

293900019

$7.73

18

Bushing

293900105

$7.65

19a

THERMOSTAT ASS'Y - Call your local BRP dealership

709200172

Unavailable

19b

Thermostat | Includes 53 to 54

420222495

$38.99

20

HOSE - Call your local BRP dealership

709200200

Unavailable

21a

Tridon Gear Clamp

293650173

$3.09

21b

Tubing 25 MM 1000MM Long

219704402

$15.99

21c

Tie-Rap 180 mm

414115200

$0.11

22

RADIATOR IN HOSE - Call your local BRP dealership

709200236

Unavailable

23

Was 276000001 Hose 12.5 mm

219704394

$51.99

24

RADIATOR OUT HOSE - Call your local BRP dealership

709200237

Unavailable

25

HOSE PUMP - Call your local BRP dealership

709200238

Unavailable

26

Was 509000407 Hose 8 mm

219704420

$50.99

27

Tridon Gear Clamp

293650051

$4.19

28

Oetiker Clamp

293650012

$7.49

29

Oetiker Gear Clamp 36.1MM

509000045

$8.29

30

Norma Clamp

293650084

$4.12

31

Oetiker Clamp

293650125

$3.29

32

Tridon Gear Clamp

293650173

$3.09

33

Crimp Clamp

293650099

$4.29

34

Y-FITTING - Call your local BRP dealership

509000390

Unavailable

35

T-Fitting | Europe

293710024

$14.75

36

Mount Dart

293730040

$1.04

37

Tie-Rap 180 mm

414115200

$0.11
