09- Body And Accessories 1

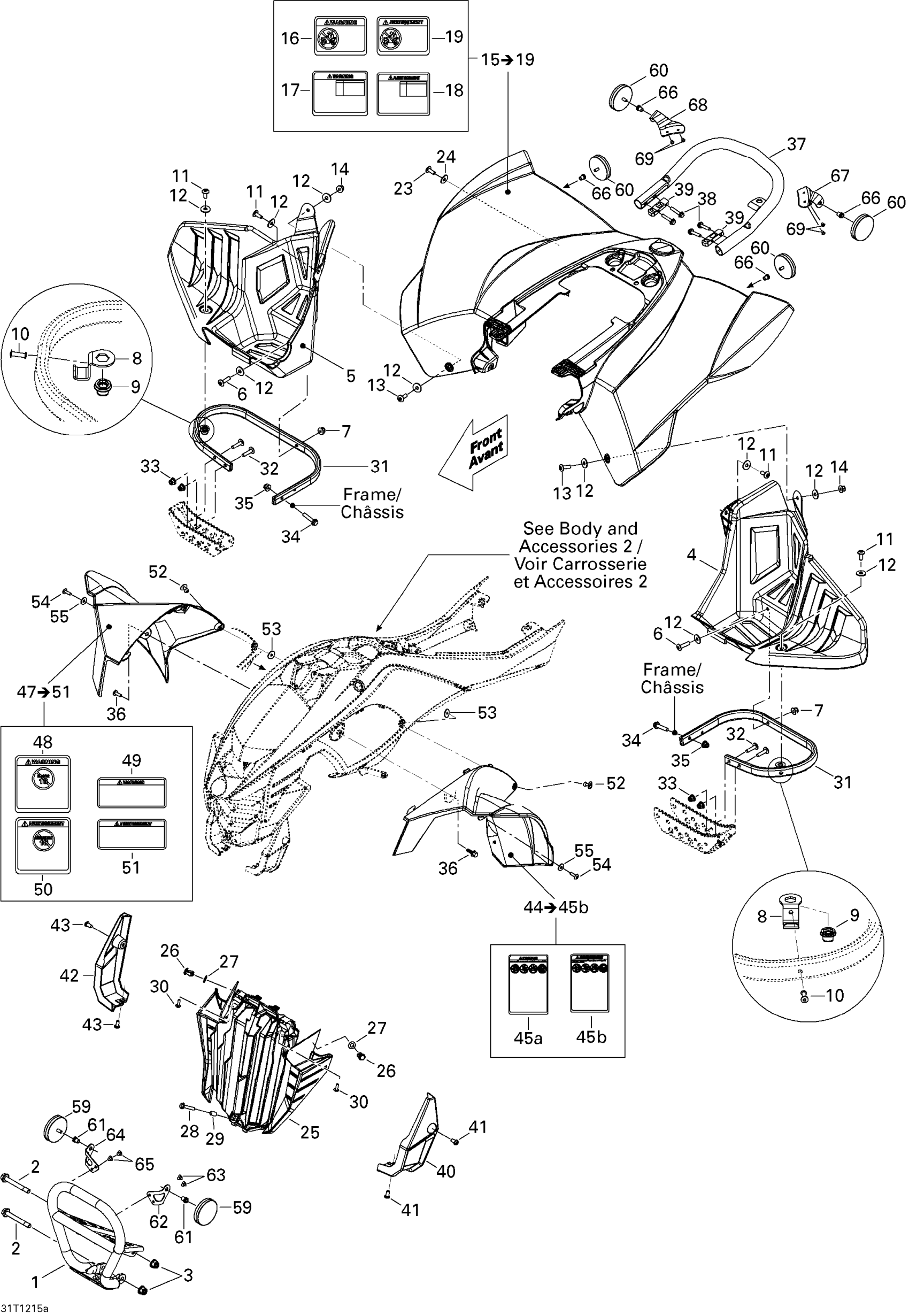

Can-Am DS 450EFI STD, 2012 09- Body And Accessories 1 Diagram
#
1
FRONT BUMPER - Call your local BRP dealership
705002768
Unavailable
2
Hex Flange Screw M8 X 65, SCOTCH GRIP - Call your local BRP dealership
250000302
Unavailable
3
Hex. Flange Nut M8
233181434
Unavailable
4
LH FOOT PROTECTOR - Call your local BRP dealership
705001745
Unavailable
5
RH FOOT PROTECTOR - Call your local BRP dealership
705001746
Unavailable
6
Torx Screw M6 x 25
250000284
Unavailable
7
Elastic Stop Nut M6
232561434
Unavailable
8
FOOT PROTECTOR BRACKET - Call your local BRP dealership
705002373
Unavailable
9
Threaded Insert M6 X 1.0
250100242
Unavailable
10
RIVET_POP 1/8 X ,625 - Call your local BRP dealership
293150023
Unavailable
11
Torx Truss Screw M6 X 16
250000721
Unavailable
12
Stainless Steel Flat Washer
234062670
Unavailable
13
Torx Truss Screw M6 X 16
250000721
Unavailable
14
Elastic Stop Nut M6
232561434
Unavailable
15
Rear Fender Kit, Yellow | Includes 15 to 19
715001339
Unavailable
16
WARNING DECAL, PASSENGER - Call your local BRP dealership
704900005
Unavailable
17
WARNING DECAL, TIRE PRESSURE - Call your local BRP dealership
704901365
Unavailable
18
Warning Decal Tire Pressure, French
704901395
Unavailable
19
Warning Decal, Passenger, French | French Version
704900006
Unavailable
23
Torx Screw M6 X 16
250000223
Unavailable
24
Stainless Steel Flat Washer
234062670
Unavailable
25
Radiator Protector Ass'y
705004009
Unavailable
26
Tuflok Plastic Rivet
293150230
Unavailable
27
Washer
506151252
Unavailable
28
Hex. Flange Screw M6 X 25
207662534
Unavailable
29
Spacer
707000058
Unavailable
30
Hex. Plastic Screw M4.8 X 16
243141630
Unavailable
31
FOOT PROTECTOR SUPPORT - Call your local BRP dealership
705002091
Unavailable
32
Hex. Socket Screw M6 X 20
250000770
Unavailable
33
Elastic Stop Nut M6
232561434
Unavailable
34
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
35
Flange Elastic Nut M6
233261434
Unavailable
36
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
Unavailable
37
REAR BUMPER - Call your local BRP dealership
705002769
Unavailable
38
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
39
CLAMP - Call your local BRP dealership
705002913
Unavailable
40
LH RADIATOR MOULDING - Call your local BRP dealership
705002514
Unavailable
41
SOCKET SCREW M6 X 12 - Call your local BRP dealership
250000339
Unavailable
42
RH RADIATOR MOULDING - Call your local BRP dealership
705002515
Unavailable
43
SOCKET SCREW M6 X 12 - Call your local BRP dealership
250000339
Unavailable
44
KIT FR. FENDER - Call your local BRP dealership | Includes 44 to 46, Yellow Model
715002375
Unavailable
45a
WARNING DECAL, DEATH AND INJURIES - Call your local BRP dealership
704901878
Unavailable
45b
Warning Decal, Death And Injuries
704900002
Unavailable
47
RH FRONT FENDER KIT, YELLOW - Call your local BRP dealership | Includes 47 to 51, Yellow Model
715000567
Unavailable
48
Warning Decal, Under 16 Years Old
704900011
Unavailable
49
WARNING DECAL, PERFORMANCE - Call your local BRP dealership
704901133
Unavailable
50
Warning Decal, Under 16 Years Old | French Version
704900012
Unavailable
51
Warning Decal, Performance, French
704901135
Unavailable
52
Pop Rivet 3/16"
293150123
Unavailable
53
Washer
503191273
Unavailable
54
Torx Screw M6 X 20
250000722
Unavailable
55
Stainless Steel Flat Washer
234062670
Unavailable
59
Amber Reflector | Except Europe Model
705011222
Unavailable
60
Red Reflector
705011221
Unavailable
61
Insert M5 X 0.8
293450268
Unavailable
62
LH Reflector Support
705002859
Unavailable
63
Stavex Rivet
293150144
Unavailable
64
RH Reflector Support
705002860
Unavailable
65
Stavex Rivet
293150144
Unavailable
66
Insert M5 X 0.8
293450268
Unavailable
67
LH SUPPORT - Call your local BRP dealership
705002911
Unavailable
68
RH SUPPORT - Call your local BRP dealership
705002912
Unavailable
69
Stavex Rivet
293150144
Unavailable
