- DS 450 Xxc, Xmx EFI, 2011
07- Steering Xmx Europe

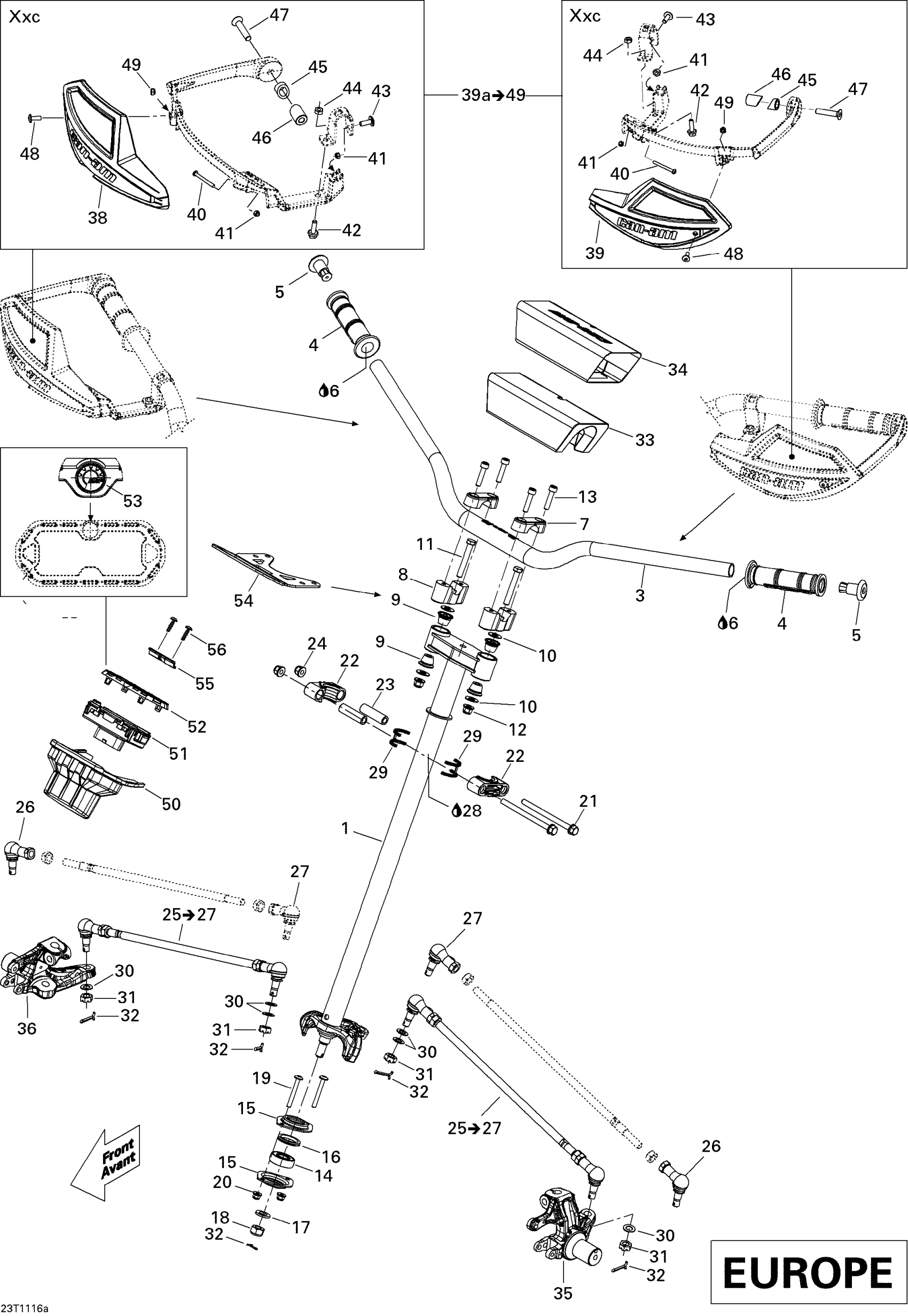

Can-Am DS 450 Xxc, Xmx EFI, 2011 07- Steering Xmx Europe Diagram
#
1
STEERING COLUMN - Call your local BRP dealership | Xmx
709400805
Unavailable
3
HANDLE BAR ALUMINUM - Call your local BRP dealership
709400668
Unavailable
4
Handle Grip
709400493
Unavailable
5
END PIECE - Call your local BRP dealership
709400627
Unavailable
6
Loctite 406, 7 Oz
293800100
Unavailable
7
Support
709400496
Unavailable
8
ALUMINUM SUPPORT - Call your local BRP dealership
709400592
Unavailable
9
DAMPER BUSHING - Call your local BRP dealership
293830131
Unavailable
10
Washer
506152194
Unavailable
11
Screw Hex. M10 X 70
250001024
Unavailable
12
Elastic Flange Nut M10
232501416
Unavailable
13
Socket Head Screw
205083534
Unavailable
14
Ball Bearing
709400439
Unavailable
15
THRUST WASHER - Call your local BRP dealership
709400468
Unavailable
16
Seal
293250177
Unavailable
17
Flat Washer
234021430
Unavailable
18
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
250100090
Unavailable
19
Torx Screw M6 X 50
250000317
Unavailable
20
Flange Elastic Nut M6
233261434
Unavailable
21
Hex. Flange Screw M8 X 110
230681034
Unavailable
22
Half Bushing
709400471
Unavailable
23
BUSHING - Call your local BRP dealership
709400072
Unavailable
24
Hex. Flange Elastic Nut M8
233281434
Unavailable
25
ROD_TIE ASSY - Call your local BRP dealership
709400352
Unavailable
26
BALL JOINT - Call your local BRP dealership
715900053
Unavailable
27
BALL JOINT - Call your local BRP dealership
715900052
Unavailable
28
Synthetic Grease, 400 G
293550010
Unavailable
29
HALF-SEAL - Call your local BRP dealership
293300120
Unavailable
30
Flat Washer
250200084
Unavailable
31
CASTLE NUT - Call your local BRP dealership
250100094
Unavailable
32
Cotter Pin
250400034
Unavailable
33
Foam
709400422
Unavailable
34
Cover
709400423
Unavailable
35
LH KNUCKLE - Call your local BRP dealership
709400346
Unavailable
36
RH KNUCKLE - Call your local BRP dealership
709400348
Unavailable
38
Not Available As Spare Parts
XXX
Unavailable
39
Not Available As Spare Parts
XXX
Unavailable
39a
Not Available As Spare Parts
XXX
Unavailable
40
Not Available As Spare Parts
XXX
Unavailable
41
Not Available As Spare Parts
XXX
Unavailable
42
Not Available As Spare Parts
XXX
Unavailable
43
Not Available As Spare Parts
XXX
Unavailable
44
Not Available As Spare Parts
XXX
Unavailable
45
Not Available As Spare Parts
XXX
Unavailable
46
Not Available As Spare Parts
XXX
Unavailable
47
Not Available As Spare Parts
XXX
Unavailable
48
Not Available As Spare Parts
XXX
Unavailable
49
Not Available As Spare Parts
XXX
Unavailable
50
Speedometer Cover
709400514
Unavailable
51
Calibrated Speedometer | Includes 16 to 17
710003288
Unavailable
52
Trim Ring Ass'y
710001183
Unavailable
53
BRP Logo13 mm
704904615
Unavailable
54
INDICATOR SUPPORT - Call your local BRP dealership
709400671
Unavailable
55
Latch Indicator Cover
709400573
Unavailable
56
Truss Head Torx Screw K50 X 20
250000297
Unavailable
