07- Front Suspension Xmx Europe

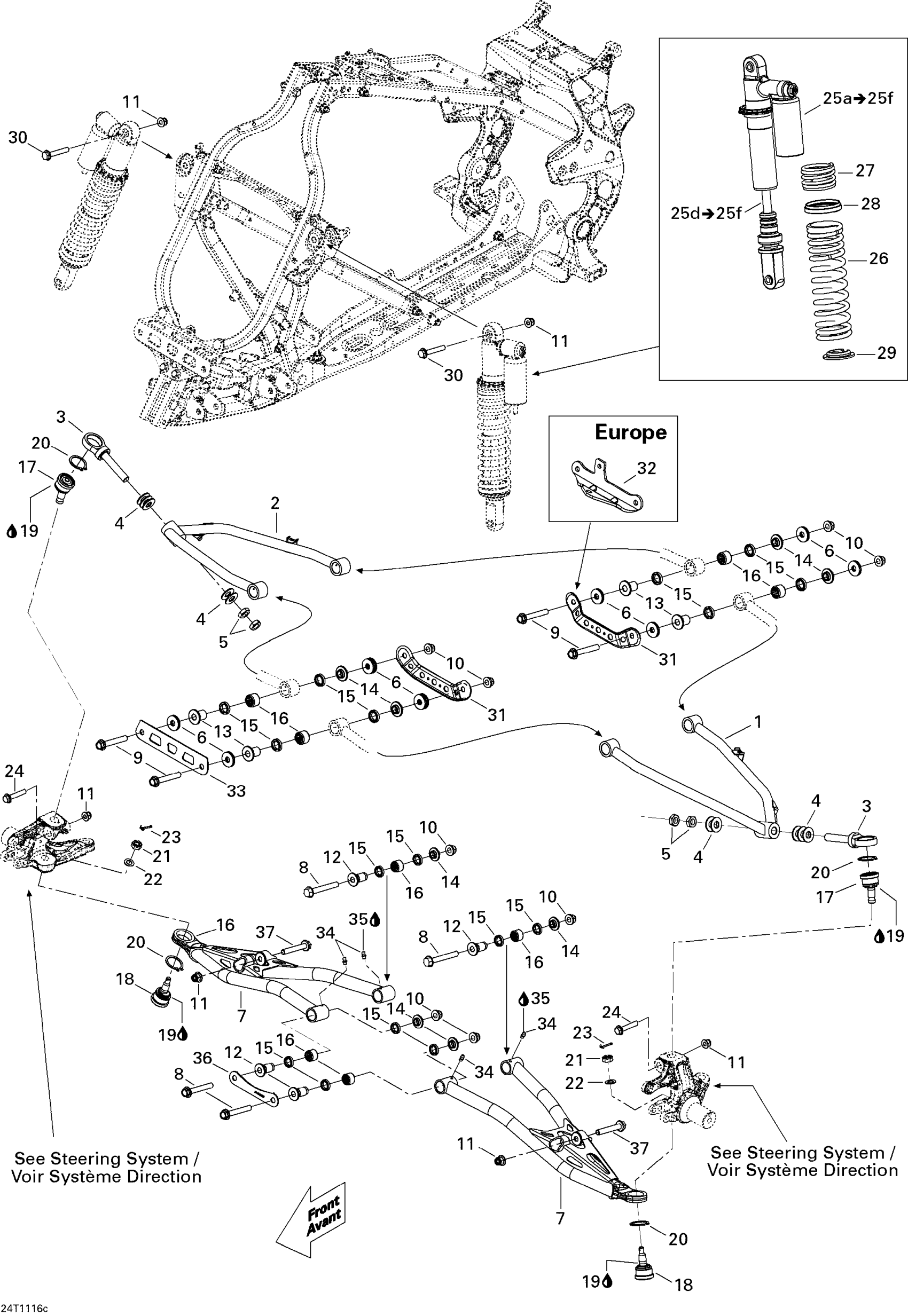

Can-Am DS 450 Xxc, Xmx EFI, 2011 07- Front Suspension Xmx Europe Diagram
#
1
LH UPPER ARM - Call your local BRP dealership
706201128
Unavailable
2
RH UPPER ARM - Call your local BRP dealership
706201134
Unavailable
3
JOINT SUPPORT - Call your local BRP dealership
706201390
Unavailable
4
FLAT WASHER - Call your local BRP dealership
250200079
Unavailable
5
Hex. Jam Nut M14
232170411
Unavailable
6
Flat Washer M10 | 4X4
250200014
Unavailable
7
LOWER ARM - Call your local BRP dealership
706201398
Unavailable
8
SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership
207607036
Unavailable
9
HEX. FLANGED SCREW M10 X 80 - Call your local BRP dealership
207608044
Unavailable
10
Hex. Flange Elastic Nut M10
233201436
Unavailable
11
Hex. Flange Elastic Nut M10
233201434
Unavailable
12
INNER BUSHING - Call your local BRP dealership
706200890
Unavailable
13
Inner Bushing
706200888
Unavailable
14
INNER BUSHING - Call your local BRP dealership
706200889
Unavailable
15
SEAL - Call your local BRP dealership
293200120
Unavailable
16
Needle Bearing
293350064
Unavailable
17
UPPER BALL JOINT - Call your local BRP dealership
706200462
Unavailable
18
LOWER BALL JOINT - Call your local BRP dealership
706200461
Unavailable
19
Loctite 609, 10 ml
413703100
Unavailable
20
Circlip 32 mm
293370009
Unavailable
21
CASTLE NUT - Call your local BRP dealership
250100094
Unavailable
22
Flat Washer
250200084
Unavailable
23
Cotter Pin
250400035
Unavailable
24
Hex. Flange Screw
207605534
Unavailable
25a
FRONT SHOCK - Call your local BRP dealership | Includes 25a to 25f
706200765
Unavailable
25b
Spring Stopper
706000567
Unavailable
25c
SHOCK OIL, 1 LITER - Call your local BRP dealership
293600136
Unavailable
25d
Front Piston And Rod Kit | Includes 25d to 25f
715500330
Unavailable
25e
Circlip
715900074
Unavailable
25f
Circlip En C
715900075
Unavailable
26
Black-Yellow Spring
706200833
Unavailable
27
Black-Yellow Spring
706200876
Unavailable
28
Spring Spacer
503191281
Unavailable
29
SPRING STOPPER - Call your local BRP dealership
706000528
Unavailable
30
HEX. FLANGED SCREW M10 X 65 - Call your local BRP dealership
207606534
Unavailable
31
Not Available As Spare Parts
XXX
Unavailable
32
SUPPORT - Call your local BRP dealership | Europe
709400685
Unavailable
33
Plate
706200759
Unavailable
34
Grease Fitting
250000315
Unavailable
35
Synthetic Grease, 400 G
293550010
Unavailable
36
Front Suspension Lower Plate
706200722
Unavailable
37
Hex. Flange Screw
207605534
Unavailable
