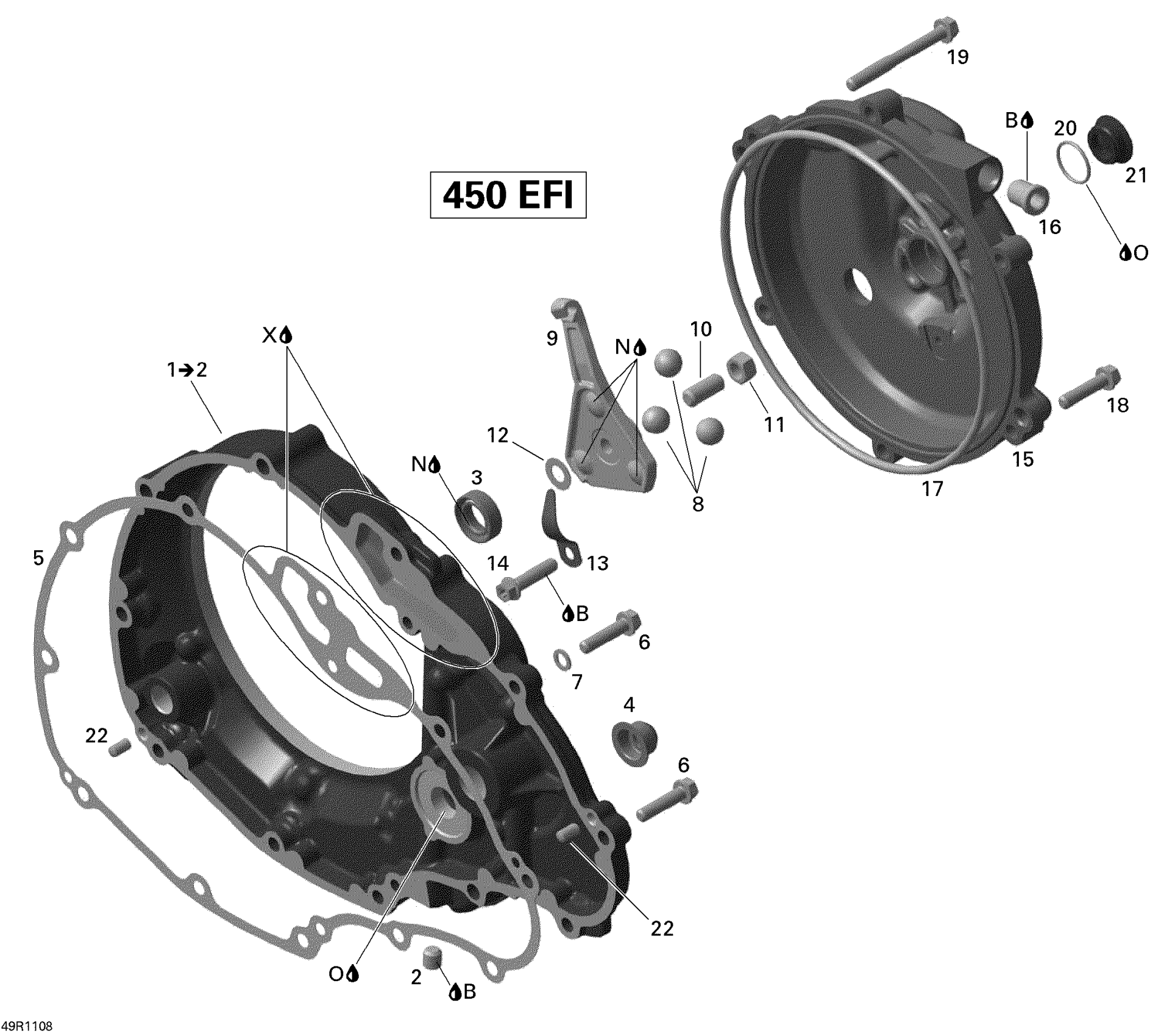

Can-Am DS 450 Xxc, Xmx EFI, 2011 01- Clutch Cover Diagram

#

Description
Price

1

Clutch Cover | Includes 1 to 2

420611666

Unavailable

2

Plug Screw

420941611

Unavailable

3

Oil Seal

420250455

Unavailable

4

SLEEVE - Call your local BRP dealership

420647100

Unavailable

5

Gasket

420430995

Unavailable

6

Torx Flange Screw M6 X 25

420641238

Unavailable

7

Seal Washer

420230415

Unavailable

8

Ball 12 mm

420232150

Unavailable

9

Clutch Release Cam

420259325

Unavailable

10

Adjustment Screw M8 X 19.5

420240310

Unavailable

11

Hex. Nut M8

420942674

Unavailable

12

Thrust Washer

420227945

Unavailable

13

SPRING - Call your local BRP dealership

420239907

Unavailable

14

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

15

Clutch Release Cover

420210966

Unavailable

16

Thread Sleeve M8

420629010

Unavailable

17

Gasket

420431432

Unavailable

18

Torx Flange Screw M6 X 25

420641238

Unavailable

19

Torx Flange Screw M6 X 55

420440702

Unavailable

20

O-Ring

420250890

Unavailable

21

PLUG SCREW M18 - Call your local BRP dealership

420241800

Unavailable

22

Drive Pin 5 X 10

420929650

Unavailable

B

Loctite 243, 10 ml

293800060

Unavailable

N

Grease, Super Lube

293550030

Unavailable

O

Not Available As Spare Part - Friction Washer

Unavailable

X

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable
