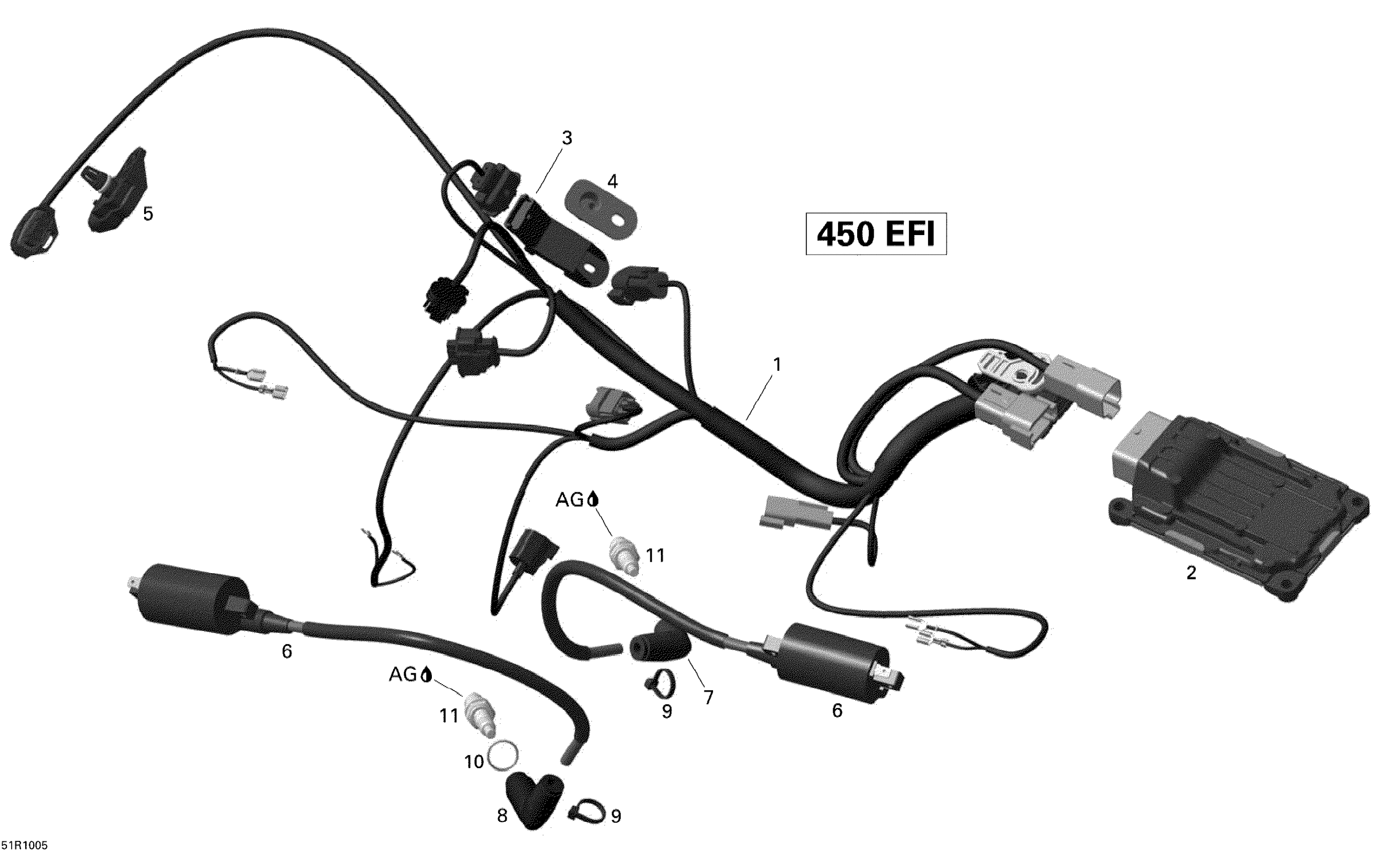

Can-Am DS 450 Xxc, Xmx EFI, 2010 Engine Harness And Electronic Module Diagram

#

Description

Price

1

WIRING HARNESS ASS'Y - Call your local BRP dealership

420665591

Unavailable

2

Module Ecu *Electronic Box

420266697

$1,399.99

3

Pressure Sensor

270600040

$181.31

4

ADAPTOR - Call your local BRP dealership

420460700

Unavailable

5

Pressure And Temperature Sensor

707000995

$81.31

6

Ignition Coil

420265414

$106.69

7

Spark Plug Connector, Short

420265244

$29.82

8

Spark Plug Connector, Long

420265246

$26.09

9

Tie Rap

420866710

$5.00

10

O-Ring

420230890

$5.06

11

Spark Plug NGK DCPR9E

278002297

$6.49

AG

Heat-Sink Paste P12, 90 ml

420897186

$36.54
