09- Frame 1 Xxc

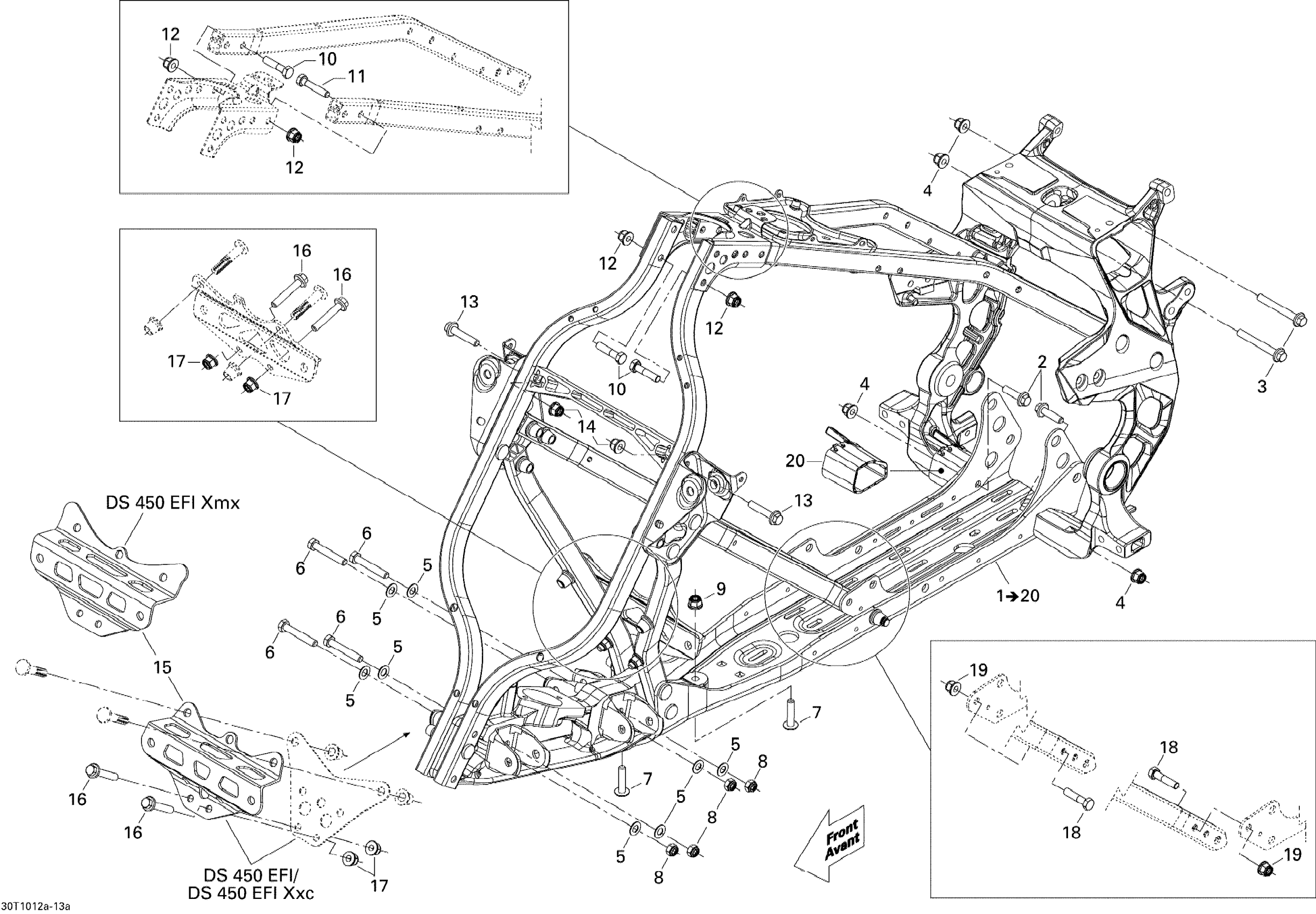

Can-Am DS 450 Xxc, Xmx EFI, 2010 09- Frame 1 Xxc Diagram
#
Description
Price
1
FRAME ASS'Y - Call your local BRP dealership | Includes 1 to 16
705202639
Unavailable
2
Hex. Flange Screw M8 X 30
207683034
Unavailable
3
Hex. Flange Screw M8 x 65
207686534
Unavailable
4
Hex. Flange Elastic Nut M8
233281434
Unavailable
5
Washer
506151252
Unavailable
6
Not Available As Spare Part - Friction Washer
Unavailable
7
TORX TRUSS SCREW M8 X 35 - Call your local BRP dealership
250000316
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Hex. Flange Elastic Nut M8
233281434
Unavailable
10
Hex. Screw M8 X 35
207083544
Unavailable
11
Hex. Screw M8 X 40
207084044
Unavailable
12
Hex. Flange Elastic Nut M8
233281434
Unavailable
13
Hex. Flange Screw M8 X 40
207684034
Unavailable
14
Hex. Flange Elastic Nut M8
233281434
Unavailable
15
Front Braket A-Arm
705201086
Unavailable
16
HEX. FLANGED SCREW M8 X 45 - Call your local BRP dealership
207684534
Unavailable
17
Hex. Flange Elastic Nut M8
233281434
Unavailable
18
Hex. Screw M8 X 35
207083544
Unavailable
19
Hex. Flange Elastic Nut M8
233281434
Unavailable
20
GUARD - Call your local BRP dealership
705500931
Unavailable
