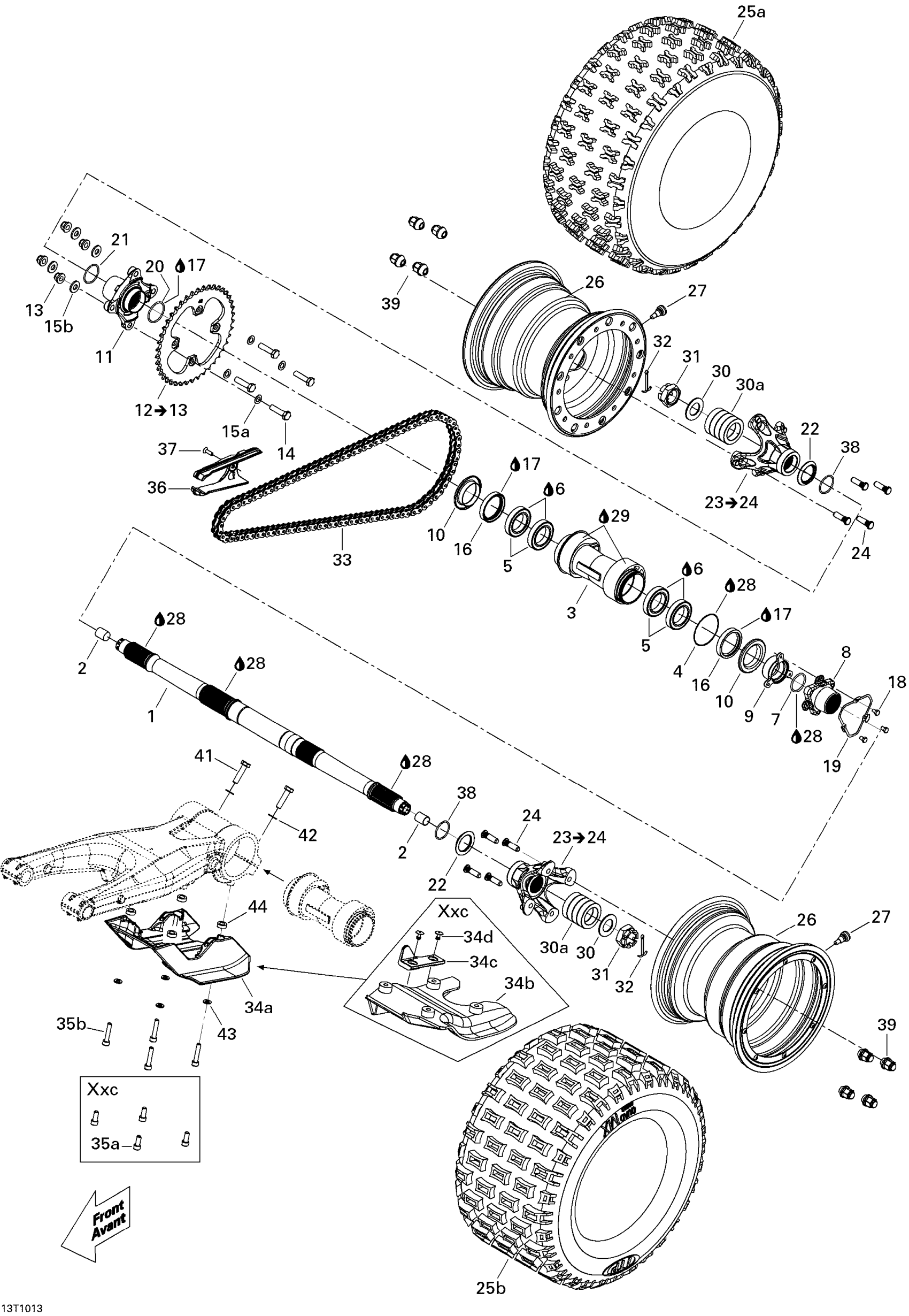

Can-Am DS 450 Xxc, Xmx EFI, 2010 08- Drive System, Rear Diagram

#

Description
Price

1

AXLE-DRIVE - Call your local BRP dealership

705501690

Unavailable

2

CAP - Call your local BRP dealership

293730044

Unavailable

3

CHAIN TIGHTENER - Call your local BRP dealership

705501014

Unavailable

4

O-Ring

293300115

Unavailable

5

Ball Bearing

293350053

Unavailable

6

Loctite 609, 10 ml

413703100

Unavailable

7

O-RING - Call your local BRP dealership

293300089

Unavailable

8

Brake Disc Hub

705500646

Unavailable

9

NUT M40 - Call your local BRP dealership

705500649

Unavailable

10

Wear Ring

705500648

Unavailable

11

Wheel Hub

705501161

Unavailable

12

SPROCKET KIT, 42 TEETH - Call your local BRP dealership

715000592

Unavailable

12

Sprocket Kit, 39 Teeth | Includes 12 to 13, Xmx, Except Europe

715000527

Unavailable

13

Hex. Flange Elastic Nut M10

233201436

Unavailable

14

Hex. Screw M10 X 40

207004036

Unavailable

15a

Flat Washer

250200084

Unavailable

15b

Conical Spring Washer 10 mm

234201474

Unavailable

16

Oil Seal

293250164

Unavailable

17

Synthetic Grease, 400 G

293550010

Unavailable

18

HEX. SCREW M6 X 10 - Call your local BRP dealership

207161034

Unavailable

19

LOCK WASHER - Call your local BRP dealership

705500669

Unavailable

20

O-RING - Call your local BRP dealership

293300099

Unavailable

21

RING RETAINER - Call your local BRP dealership

705500108

Unavailable

22

SUPPORT RING - Call your local BRP dealership

705500663

Unavailable

23

Rear Wheel Hub Ass'y | Includes 23 to 24

705501075

Unavailable

24

Wheel Stud

250300013

Unavailable

25a

TIRE_20X10R9 REAR - Call your local BRP dealership | Xxc, Except Europe

705500989

Unavailable

25b

Rear Tire | Xmx, Except Europe

705501106

Unavailable

26

RIM_9 INCH X 8 - Call your local BRP dealership | Xxc, Xmx Europe

705500990

Unavailable

26

RIM_8 INCH X 8 - Call your local BRP dealership | Xmx

705500995

Unavailable

27

Rim Valve With Cap

705400193

Unavailable

28

Graisse *Grease

293550062

Unavailable

29

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

30

FLAT WASHER - Call your local BRP dealership

250200087

Unavailable

30a

SPACER - Call your local BRP dealership

705500999

Unavailable

31

Hex. Castlellated Nut M27

250100093

Unavailable

32

COTTER PIN - Call your local BRP dealership

250400028

Unavailable

33

Chain

705500948

Unavailable

33

Chain | Xmx

705501084

Unavailable

34a

Rear Skid Plate

705500660

Unavailable

34b

REAR SKID PLATE - Call your local BRP dealership | Xxc

705501064

Unavailable

34c

CHAIN SLIDER - Call your local BRP dealership

705500923

Unavailable

34d

Pop Rivet 3/16" | DS 650 X

293150104

Unavailable

35a

SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership

205082534

Unavailable

35b

Socket Head Screw M8 X 1.25 X 40

205084044

Unavailable

36

Chain Slider

705501422

Unavailable

37

Socket Head Screw M6, Scotch Grip

205862034

Unavailable

38

RING RETAINER - Call your local BRP dealership

705500065

Unavailable

39

Black, Wheel Nut M10 X 1.25

250100184

Unavailable

41

Hex. Screw M10 X 1.5 X 40

207004034

Unavailable

42

Flat Washer

250200084

Unavailable

43

Flat Washer 8 mm

234081410

Unavailable

44

Bushing

293900028

Unavailable
