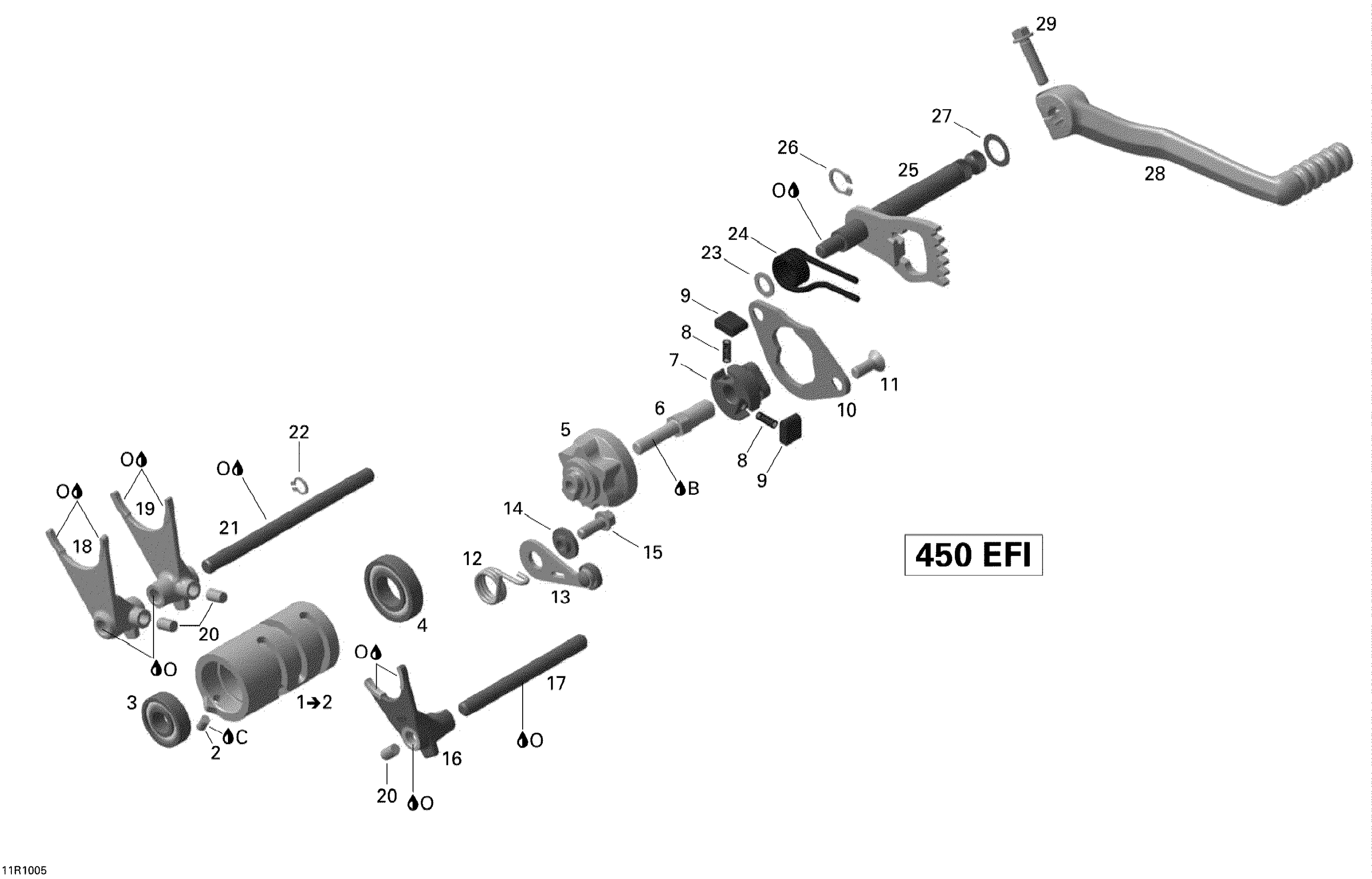

Can-Am DS 450 Xxc, Xmx EFI, 2010 Shifting System Diagram

#

Description
Price

1

SHIFT DRUM - Call your local BRP dealership | Includes 1 to 2

420257808

$97.99

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Balll Bearing

420232400

$23.05

4

BALL BEARING - Call your local BRP dealership

420232590

$18.43

5

INDEX WASHER - Call your local BRP dealership

420257810

$81.51

6

BEARING PIN - Call your local BRP dealership

420249150

$14.85

7

TOOTH SEGMENT - Call your local BRP dealership

420434661

$109.97

8

COMPRESSION SPRING - Call your local BRP dealership

420239131

$10.66

9

PAWL - Call your local BRP dealership

420257821

$4.63

10

DISENGAGE GATE - Call your local BRP dealership

420257830

$18.43

11

Countersunk Screw M6 X 16

420440906

$3.11

12

INDEX SPRING 2.5 MM - Call your local BRP dealership

420238294

$8.94

13

INDEX LEVER - Call your local BRP dealership

420248326

$26.89

14

BUSHING - Call your local BRP dealership

420227710

$8.43

15

Torx Flange Screw M6 X 16

420641048

$2.46

16

GEARSHIFT FORK - Call your local BRP dealership

420257930

Unavailable

17

FORK SPINDLE - Call your local BRP dealership

420258205

$19.97

18

GEARSHIFT FORK - Call your local BRP dealership

420257920

$100.74

19

GEARSHIFT FORK - Call your local BRP dealership

420257910

$100.74

20

Needle Pin

420932785

$12.91

21

FORK SPINDLE - Call your local BRP dealership

420258200

$19.97

22

Retaining Ring

420245570

$6.45

23

Washer 8.4

420944033

$0.98

24

SPRING - Call your local BRP dealership

420239251

$14.65

25

Shift Shaft

420620795

$87.66

26

Retaining Ring

420945470

$5.52

27

Shim

420944382

$4.00

28

Gearshift Pedal

420248540

$92.28

29

Torx Flange Screw M6 X 25

420440234

$3.00

B

Loctite 243, 10 ml

293800060

$20.77

C

Sealant Loctite 648

219703000

$35.72

O

Not Available As Spare Part - Friction Washer

Unavailable
