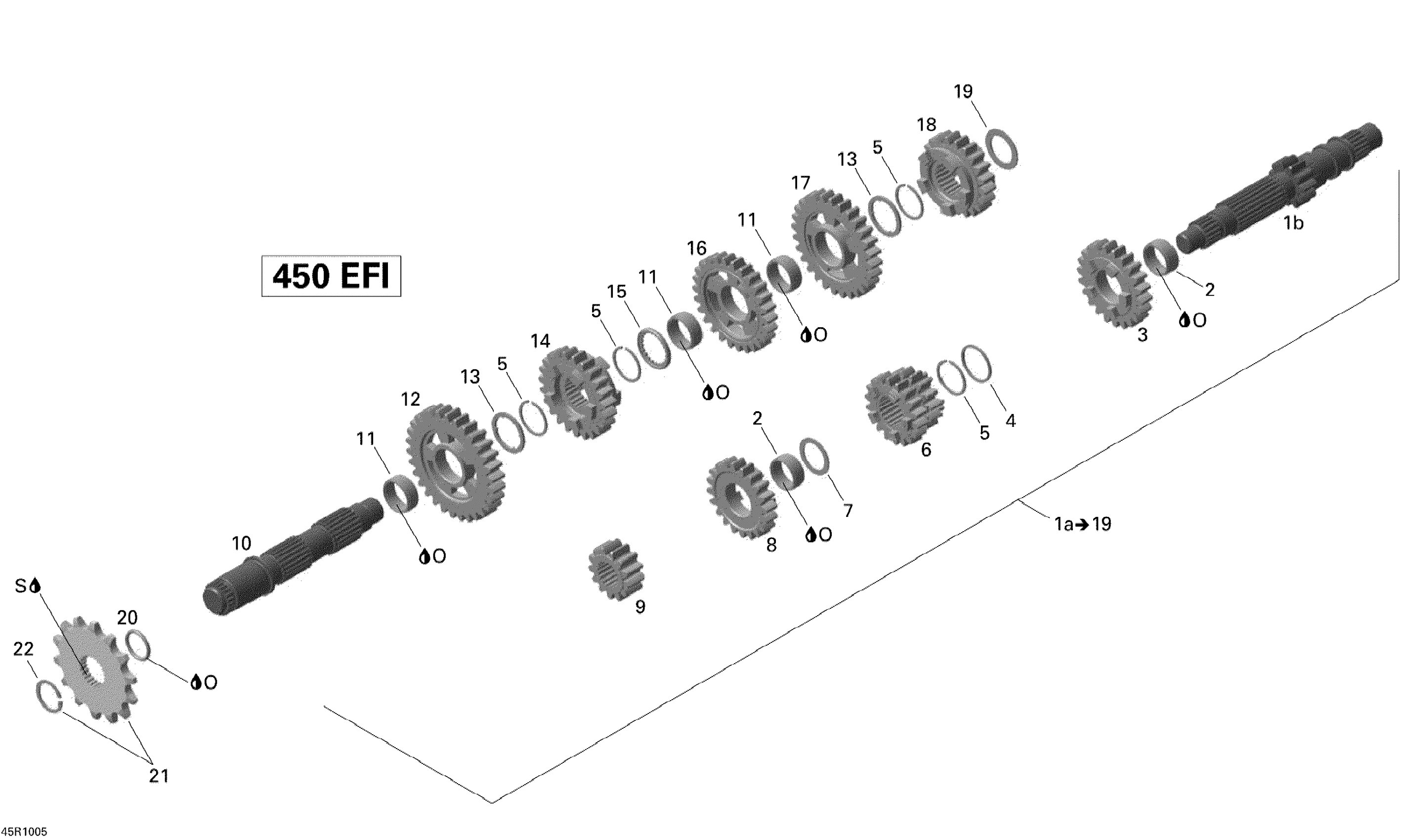

Can-Am DS 450 Xxc, Xmx EFI, 2010 Gear Box Diagram

#

Description
Price

1a

GEAR BOX ASS'Y - Call your local BRP dealership | Includes 1a to 19

420281498

$2,557.91

1b

Clutch Shaft

420620950

$274.99

2

Needle Bearing

420232664

$19.20

3

FREE PINION, 22 TEETH - Call your local BRP dealership

420234883

$66.89

4

THRUST WASHER - Call your local BRP dealership

420227470

$6.49

5

SNAP RING 24 - Call your local BRP dealership

420245340

$6.23

6

PINION GEAR, 15/18 TEETH - Call your local BRP dealership

420435062

$209.20

7

THRUST WASHER - Call your local BRP dealership

420227440

$5.74

8

FREE PINION, 20 TEETH - Call your local BRP dealership

420435092

$114.99

9

FIXED GEAR, 13 TEETH - Call your local BRP dealership

420435040

$56.12

10

MAIN SHAFT - Call your local BRP dealership

420620960

$216.12

11

Needle Bearing

420232742

$17.66

12

FREE PINION, 30 TEETH - Call your local BRP dealership

420435050

$65.35

13

THRUST WASHER - Call your local BRP dealership

420227460

$10.62

14

PINION GEAR, 23 TEETH - Call your local BRP dealership

420435102

$135.35

15

ANGULAR RING - Call your local BRP dealership

420227491

Unavailable

16

FREE PINION, 26 TEETH - Call your local BRP dealership

420435082

$65.35

17

FREE PINION, 28 TEETH - Call your local BRP dealership

420435070

$81.51

18

PINION GEAR, 21 TEETH - Call your local BRP dealership

420234992

$68.43

19

THRUST WASHER - Call your local BRP dealership

420227430

$5.68

20

O-Ring

420250050

$9.29

21

Sprocket Kit, 14 Teeth

715000591

Unavailable

22

RETAINING RING - Call your local BRP dealership

420245650

$5.17

O

Not Available As Spare Part - Friction Washer

Unavailable

S

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
