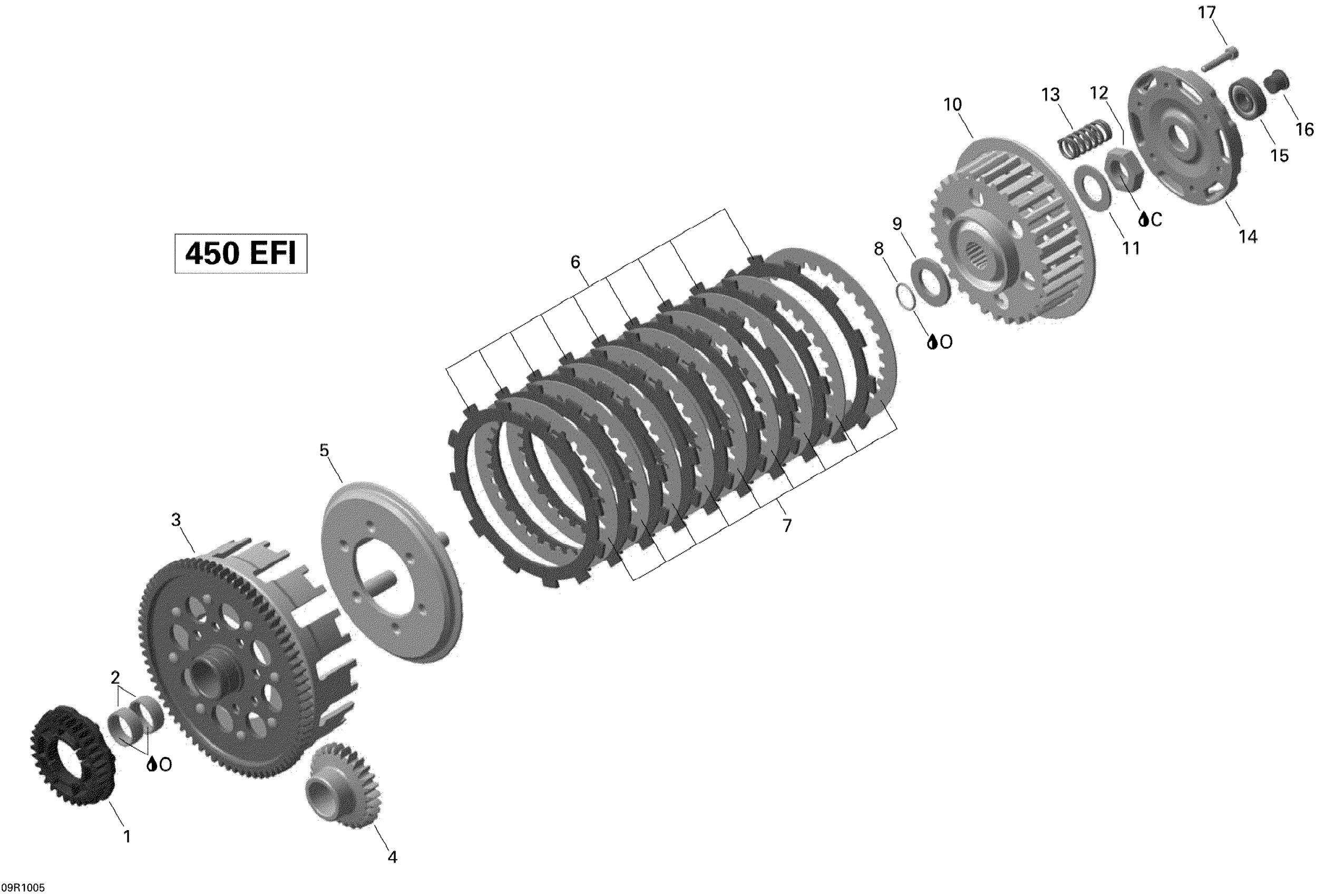

Can-Am DS 450 Xxc, Xmx EFI, 2010 Clutch Diagram

#

Description
Price

1

OIL PUMP GEAR - Call your local BRP dealership

420434710

Unavailable

2

Needle Bearing

420232742

$17.13

3

Clutch Drum

420259855

$354.45

4

DRIVE GEAR, 27 TEETH - Call your local BRP dealership

420434680

Unavailable

5

Inner Plate

420259889

$56.69

6

Friction Plate 2.6 mm

420259904

$23.85

7

Clutch Plate

420259912

$11.43

8

O-Ring

420250890

$2.87

9

THRUST WASHER - Call your local BRP dealership

420227601

Unavailable

10

Clutch Hub | Serial numbers 6748166 and up

703500742

$88.03

11

Spring Washer

420245680

$7.93

12

HEX. NUT M18 - Call your local BRP dealership

420942220

Unavailable

13

Clutch Spring

420239625

$8.01

14

Retaining Plate

420259131

$65.64

15

Balll Bearing

420232400

$22.36

16

THRUST HUB - Call your local BRP dealership

420259141

Unavailable

17

Socket Head Screw M5 X 25

420240187

$5.04

C

Sealant Loctite 648

219703000

$41.01

O

Not Available As Spare Part - Friction Washer

Unavailable
