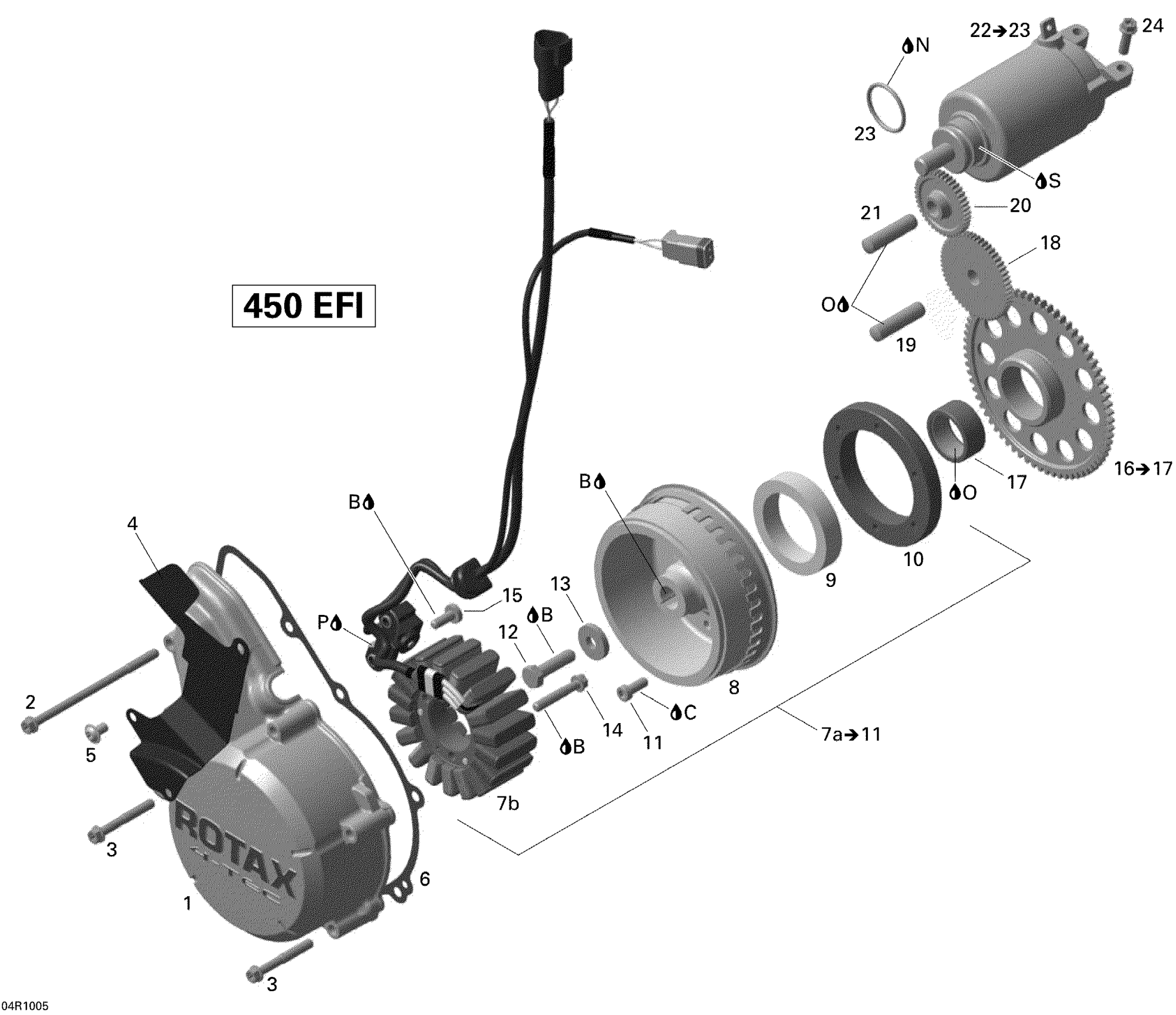

Can-Am DS 450 Xxc, Xmx EFI, 2010 03- Magneto And Electric Starter Diagram

#

Description
Price

1

IGNITION COVER - Call your local BRP dealership

420611700

Unavailable

2

Torx Flange Screw M6 X 105

420440612

Unavailable

3

Torx Flange Screw M6 X 45

420641198

Unavailable

4

Protection Shield

420651020

Unavailable

5

FLANGED SCREW M10 X 10 - Call your local BRP dealership

420240607

Unavailable

6

Gasket

420430980

Unavailable

7a

Magneto Ass'y | Includes 7a to 11

420685171

Unavailable

7b

Stator Plate

420296323

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Sprag Clutch

420259070

Unavailable

10

SPRAG CLUTCH HOUSING - Call your local BRP dealership

420659860

Unavailable

11

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

420640980

Unavailable

12

SCREW M8 X 30 - Call your local BRP dealership

420940485

Unavailable

13

WASHER 23 MM - Call your local BRP dealership

420626460

Unavailable

14

Torx Flange Screw M6 X 35

420641258

Unavailable

15

Torx Screw M6 X 16

420640324

Unavailable

16

STARTING GEAR ASS'Y, 68 TEETH - Call your local BRP dealership | Includes 16 to 17

420635155

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

FRICTION CLUTCH - Call your local BRP dealership

420685300

Unavailable

19

Location Pin 10 M6x50

420229302

Unavailable

20

INTERMEDIATE GEAR, 41 TEETH - Call your local BRP dealership

420434790

Unavailable

21

INTERMEDIATE GEAR SHAFT - Call your local BRP dealership

420929935

Unavailable

22

Electric Starter Ass'y | Includes 22 to 23

420685100

Unavailable

23

O-Ring

420250140

Unavailable

24

Torx Flange Screw M6 X 20

420440207

Unavailable

B

Loctite 243, 10 ml

293800060

Unavailable

C

Sealant Loctite 648

219703000

Unavailable

N

Grease, Super Lube

293550030

Unavailable

O

Not Available As Spare Part - Friction Washer

Unavailable

P

Loctite 5910, 300 ml

293800081

Unavailable

S

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
