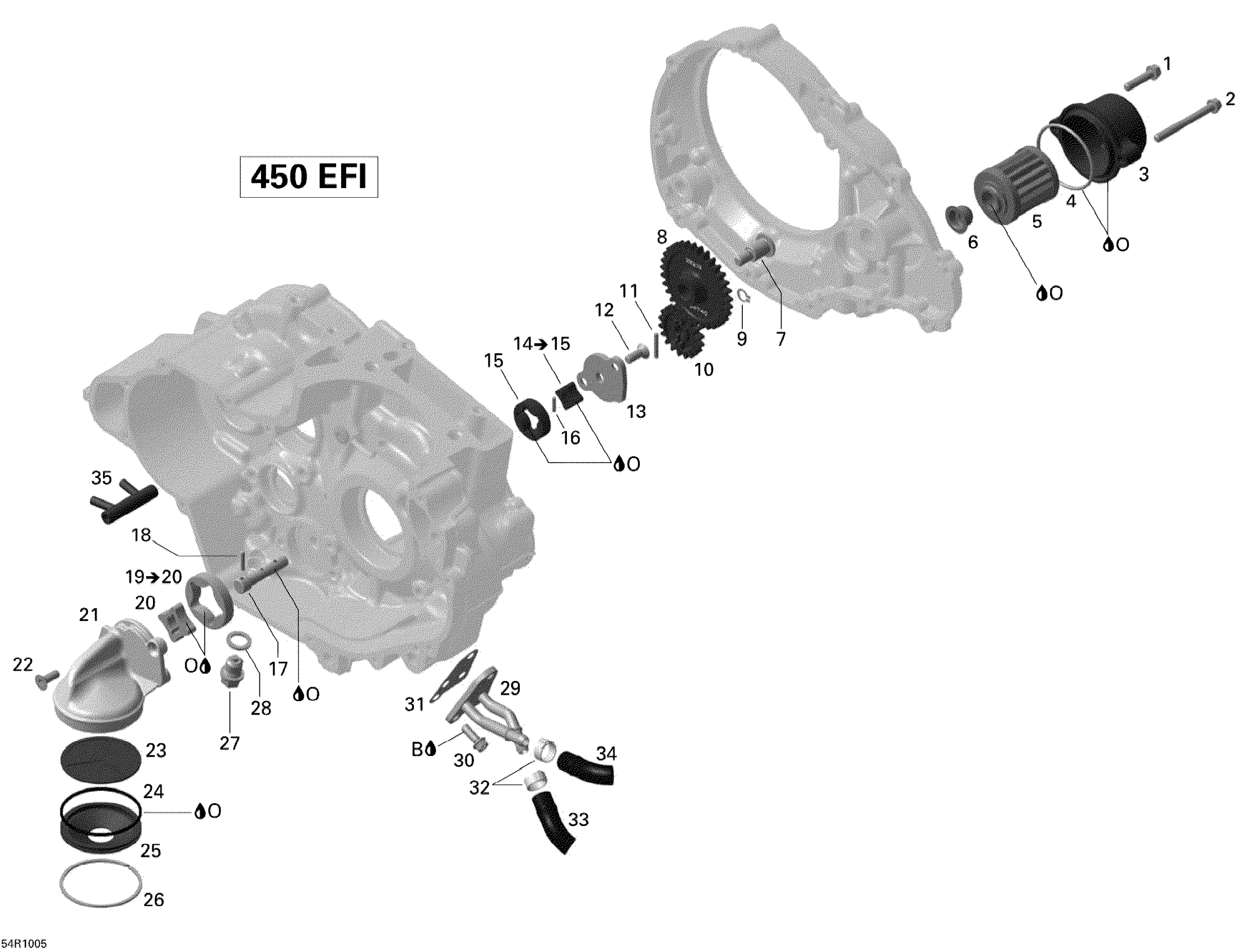

Can-Am DS 450 Xxc, Xmx EFI, 2010 Engine Lubrication Diagram

#

Description
Price

1

Torx Flange Screw M6 X 25

420641238

$3.07

2

Torx Flange Screw M6 X 55

420440702

$2.91

3

OIL FILTER COVER - Call your local BRP dealership

420211509

$32.99

4

O-Ring

420430920

$2.55

5

Oil Filter

420256455

$12.79

6

SLEEVE - Call your local BRP dealership

420647100

Unavailable

7

BEARING BOLT M8 - Call your local BRP dealership

420241150

Unavailable

8

Idle Gear, 31 Teeth

420434740

$17.13

9

Retaining Ring

420245570

$6.16

10

Oil Pump Gear, 18 Teeth

420434730

$12.34

11

Needle Pin

420932840

$3.00

12

Countersunk Screw M6 X 16

420440906

$3.01

13

Oil Pump Cover

420611791

$27.58

14

Inner And Outer Rotor Ass'y | Includes 14 to 15

420256477

$40.27

15

Not Available As Spare Part - Friction Washer

Unavailable

16

NEEDLE PIN - Call your local BRP dealership

420832560

Unavailable

17

OIL PUMP SHAFT - Call your local BRP dealership

420620810

Unavailable

18

NEEDLE PIN - Call your local BRP dealership

420232980

Unavailable

19

Inner And Outer Rotor Ass'y | Includes 19 to 20

420256117

$65.64

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Oil Sieve Cover

420610740

$54.45

22

Screw M6 X 20

420941436

$2.72

23

OIL SIEVE - Call your local BRP dealership

420256570

Unavailable

24

O-Ring

420650697

$9.25

25

Oil Collector

420256650

$46.99

26

SNAP RING - Call your local BRP dealership

420845590

Unavailable

27

Magnetic Drain Plug M12

420241787

$16.39

28

Copper Washer

420250640

$0.93

29

Connection Cover

420656460

$50.72

30

Torx Flange Screw M6 X 20

420440207

$2.91

31

Gasket

420431120

$10.12

32

Clamp

420851458

$7.01

33

Oil Hose

420460791

$16.39

34

OIL HOSE - Call your local BRP dealership

420460792

Unavailable

35

OIL TUBE - Call your local BRP dealership

420656300

Unavailable

B

Loctite 243, 10 ml

293800060

$21.49

O

Not Available As Spare Part - Friction Washer

Unavailable
