01- Engine

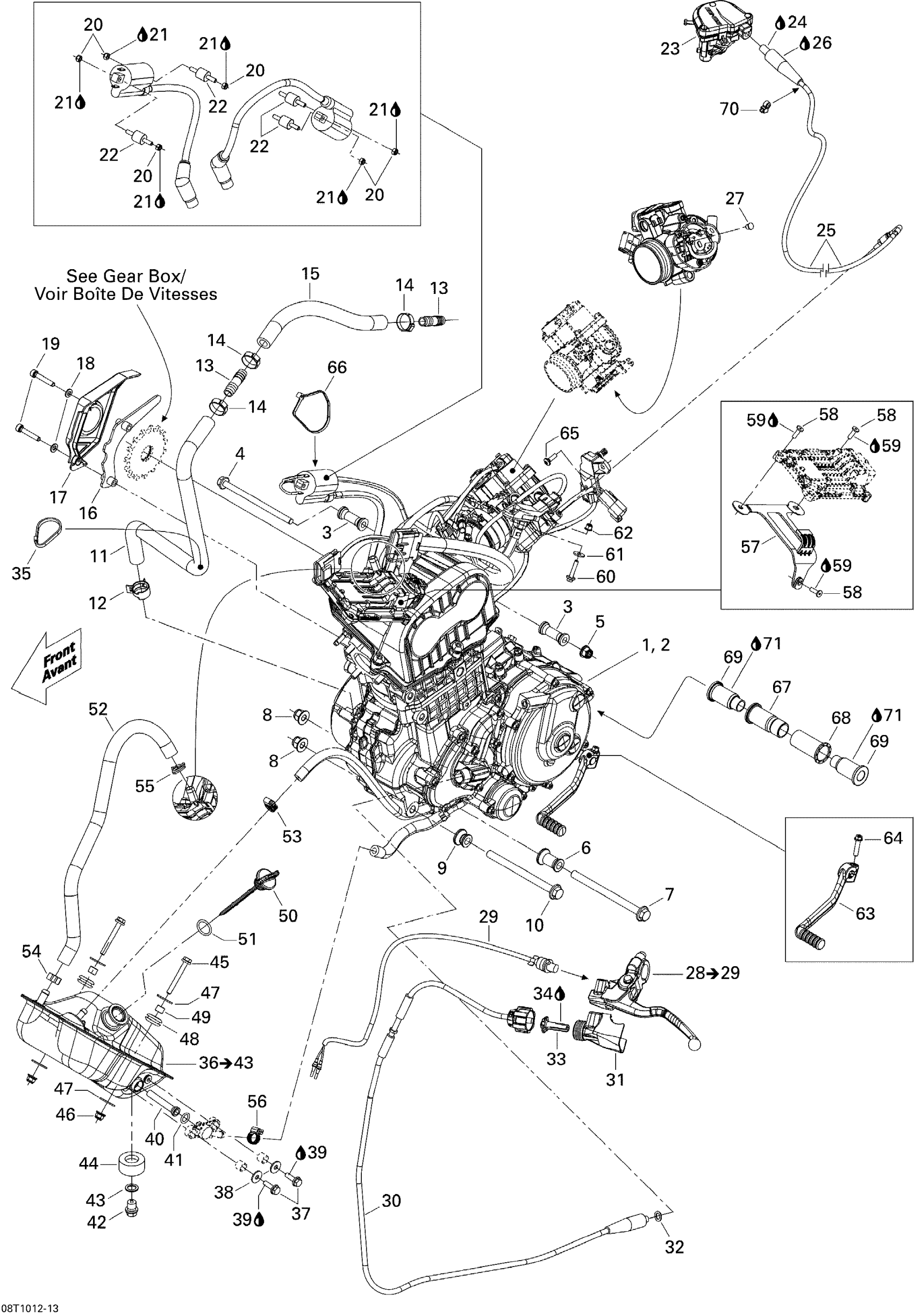

Can-Am DS 450 Xxc, Xmx EFI, 2010 01- Engine Diagram
#
1
Not Available As Spare Part - Friction Washer
Unavailable
2
LONG BLOCK, 449 EFI ENGINE - Call your local BRP dealership
420044904
Unavailable
3
SPACER - Call your local BRP dealership
293900071
Unavailable
4
Hex. Flange Screw M8 X 130
230683034
Unavailable
5
Hex. Flange Elastic Nut M8
233281434
Unavailable
6
SPACER - Call your local BRP dealership
293900072
Unavailable
7
HEX. FLANGED SCREW M10 X 135 - Call your local BRP dealership
230603536
Unavailable
8
Hex. Flange Elastic Nut M10
233201434
Unavailable
9
SPACER - Call your local BRP dealership
293900074
Unavailable
10
HEX. FLANGED SCREW M10 X 130 - Call your local BRP dealership
230603036
Unavailable
11
Hose
707000502
Unavailable
12
Norma Clamp
293650110
Unavailable
13
CONNECTOR - Call your local BRP dealership
293710119
Unavailable
14
Oetiker Clamp
293650012
Unavailable
15
HOSE 12 MM - Call your local BRP dealership
707000537
Unavailable
16
CHAIN GUARD - Call your local BRP dealership
707000464
Unavailable
17
SPROCKET COVER - Call your local BRP dealership
707000425
Unavailable
18
Flat Washer M6
234061430
Unavailable
19
SOCKET HEAD SCREW M6 X 35, SCOTCH GRIP - Call your local BRP dealership
205563536
Unavailable
20
Flange Elastic Nut M5
233251434
Unavailable
21
Loctite 243, 10 ml
293800060
Unavailable
22
Rubber Mount
707000746
Unavailable
23
THROTTLE HANDLE - Call your local BRP dealership
707000440
Unavailable
24
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
25
THROTTLE CABLE - Call your local BRP dealership
707000439
Unavailable
26
CABLE LUBRICANT, 400 G - Call your local BRP dealership
293600041
Unavailable
27
Cable Guide
707000434
Unavailable
28
HANDLE LEVER ASS'Y - Call your local BRP dealership | Includes 30 to 31
707000469
Unavailable
29
LEVER SHIFTER SWITCH - Call your local BRP dealership
707000183
Unavailable
30
Clutch Cable
707000422
Unavailable
31
BOOT - Call your local BRP dealership
293830122
Unavailable
32
Washer
504082900
Unavailable
33
SCREW - Call your local BRP dealership
707000602
Unavailable
34
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
35
Tie-Rap 180 mm
414115200
Unavailable
36
OIL TANK ASS'Y - Call your local BRP dealership | Includes 40 to 46
707000806
Unavailable
37
Hex. Flange Screw M6 X 20
207662034
Unavailable
38
Flat Washer 6 mm
234062410
Unavailable
39
Loctite 243, 10 ml
293800060
Unavailable
40
STRAINER - Call your local BRP dealership
519000144
Unavailable
41
O-Ring
293300128
Unavailable
42
Plug
250500010
Unavailable
43
Copper Washer
250200061
Unavailable
44
RUBBER STOPPER - Call your local BRP dealership
705001678
Unavailable
45
HEX. FLANGED SCREW M6 X 50 - Call your local BRP dealership
207665034
Unavailable
46
Flange Elastic Nut M6
233261434
Unavailable
47
FLAT WASHER - Call your local BRP dealership
250200099
Unavailable
48
Grommet
293720062
Unavailable
49
SPACER - Call your local BRP dealership
293900089
Unavailable
50
Oil Cap
707000526
Unavailable
51
O-Ring
709000089
Unavailable
52
HOSE - Call your local BRP dealership
707000544
Unavailable
53
Tridon Gear Clamp
293650171
Unavailable
54
Oetiker Clamp
293650011
Unavailable
55
ROTOCLIP CLAMP - Call your local BRP dealership
293650180
Unavailable
56
Tridon Gear Clamp
293650171
Unavailable
57
MODULE SUPPORT - Call your local BRP dealership
710000972
Unavailable
58
SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership
250000295
Unavailable
59
Loctite 243, 10 ml
293800060
Unavailable
60
Hex. Flange Screw M5 X 25
207652544
Unavailable
61
Washer | DS 650 X
391301600
Unavailable
62
Flange Elastic Nut M5
233251434
Unavailable
63
Gearshift Pedal
420248540
Unavailable
64
Torx Flange Screw M6 X 25
420440234
Unavailable
65
Torx Screw K50 X 16
250000720
Unavailable
66
Tie Wrap 368 mm
293750008
Unavailable
67
RH SPACER - Call your local BRP dealership
707000947
Unavailable
68
SPACER - Call your local BRP dealership
707001749
Unavailable
69
RUBBER MOUNT - Call your local BRP dealership
707000800
Unavailable
70
Tie Wrap 142 mm
293750002
Unavailable
71
Not Available As Spare Part - Friction Washer
Unavailable
